Widget that allows to edit the constraints of SimpleBarrierConstraintChecker. More...

#include <QmitkSimpleBarrierManagerWidget.h>

Inheritance diagram for QmitkSimpleBarrierManagerWidget:

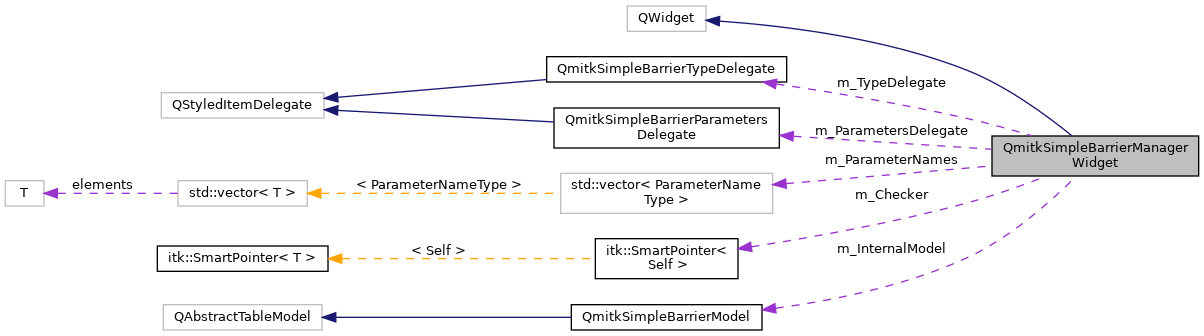

Collaboration diagram for QmitkSimpleBarrierManagerWidget:

[legend]

Public Slots
void	setChecker (mitk::SimpleBarrierConstraintChecker *pChecker, const mitk::ModelTraitsInterface::ParameterNamesType &names)

Signals
void	ConstraintChanged (mitk::SimpleBarrierConstraintChecker::Constraint constraint)

Public Member Functions
	QmitkSimpleBarrierManagerWidget (QWidget *parent=nullptr)

	~QmitkSimpleBarrierManagerWidget () override

Protected Slots
void	OnShowContextMenuIsoSet (const QPoint &pos)

void	OnAddConstraint (bool checked)

void	OnDelConstraint (bool checked)

Protected Member Functions
void	update ()
	Updates the widget according to its current settings. More...

Protected Attributes
mitk::SimpleBarrierConstraintChecker::Pointer	m_Checker

mitk::ModelTraitsInterface::ParameterNamesType	m_ParameterNames

QmitkSimpleBarrierModel *	m_InternalModel

QmitkSimpleBarrierTypeDelegate *	m_TypeDelegate

QmitkSimpleBarrierParametersDelegate *	m_ParametersDelegate

bool	m_InternalUpdate

Ui::QmitkSimpleBarrierManagerWidget	m_Controls

Detailed Description

Widget that allows to edit the constraints of SimpleBarrierConstraintChecker.

Definition at line 33 of file QmitkSimpleBarrierManagerWidget.h.

Constructor & Destructor Documentation

◆ QmitkSimpleBarrierManagerWidget()

QmitkSimpleBarrierManagerWidget::QmitkSimpleBarrierManagerWidget ( QWidget * parent = nullptr )

Definition at line 20 of file QmitkSimpleBarrierManagerWidget.cpp.

References m_Controls, m_InternalModel, m_ParametersDelegate, m_TypeDelegate, OnAddConstraint(), OnDelConstraint(), OnShowContextMenuIsoSet(), and update().

◆ ~QmitkSimpleBarrierManagerWidget()

QmitkSimpleBarrierManagerWidget::~QmitkSimpleBarrierManagerWidget ( )

override

Definition at line 41 of file QmitkSimpleBarrierManagerWidget.cpp.

References m_InternalModel, m_ParametersDelegate, and m_TypeDelegate.

Member Function Documentation

◆ ConstraintChanged

void QmitkSimpleBarrierManagerWidget::ConstraintChanged ( mitk::SimpleBarrierConstraintChecker::Constraint constraint )

signal

◆ OnAddConstraint

void QmitkSimpleBarrierManagerWidget::OnAddConstraint ( bool checked )

protectedslot

Definition at line 80 of file QmitkSimpleBarrierManagerWidget.cpp.

References QmitkSimpleBarrierModel::addConstraint(), and m_InternalModel.

Referenced by QmitkSimpleBarrierManagerWidget().

◆ OnDelConstraint

void QmitkSimpleBarrierManagerWidget::OnDelConstraint ( bool checked )

protectedslot

Definition at line 85 of file QmitkSimpleBarrierManagerWidget.cpp.

References QmitkSimpleBarrierModel::deleteConstraint(), m_Controls, m_InternalModel, and update().

Referenced by QmitkSimpleBarrierManagerWidget().

◆ OnShowContextMenuIsoSet

void QmitkSimpleBarrierManagerWidget::OnShowContextMenuIsoSet ( const QPoint & pos )

protectedslot

Definition at line 57 of file QmitkSimpleBarrierManagerWidget.cpp.

References QmitkSimpleBarrierModel::addConstraint(), QmitkSimpleBarrierModel::deleteConstraint(), m_Controls, and m_InternalModel.

Referenced by QmitkSimpleBarrierManagerWidget().

◆ setChecker

void QmitkSimpleBarrierManagerWidget::setChecker	(	mitk::SimpleBarrierConstraintChecker *	pChecker,
		const mitk::ModelTraitsInterface::ParameterNamesType &	names
	)

slot

Sets the data handled by the model and resets the modified flag

Parameters

pChecker	Pointer to the checker instance that should be managed.
names	List of all possible parameter names. It is assumed that the index of the list equals the parameter index in the respective fitting model.

Definition at line 48 of file QmitkSimpleBarrierManagerWidget.cpp.

References m_Checker, m_InternalModel, m_ParameterNames, QmitkSimpleBarrierModel::setChecker(), and update().
