QmitkProgressBar Class Reference

QT-Toolkit/GUI dependent class that provides the QT's ProgressBar. More...

#include <QmitkProgressBar.h>

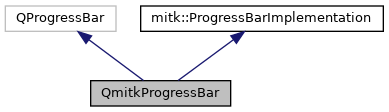

Inheritance diagram for QmitkProgressBar:

Collaboration diagram for QmitkProgressBar:

Signals
void	SignalAddStepsToDo (unsigned int steps)
void	SignalProgress (unsigned int steps)
void	SignalSetPercentageVisible (bool visible)

Public Member Functions
	QmitkProgressBar (QWidget *parent=nullptr, const char *name=nullptr)
	Constructor; holds param instance internally and connects this to the mitkProgressBar. More...
	~QmitkProgressBar () override
	Destructor. More...
void	SetPercentageVisible (bool visible) override
	Sets whether the current progress value is displayed. More...
void	AddStepsToDo (unsigned int steps) override
	Adds steps to totalSteps. More...
void	Progress (unsigned int steps) override
	Sets the current amount of progress to current progress + steps. More...
Public Member Functions inherited from mitk::ProgressBarImplementation
	ProgressBarImplementation ()
	Constructor. More...
virtual	~ProgressBarImplementation ()
	Destructor. More...

Protected Slots
virtual void	SlotAddStepsToDo (unsigned int steps)
virtual void	SlotProgress (unsigned int steps)
virtual void	SlotSetPercentageVisible (bool visible)

Detailed Description

QT-Toolkit/GUI dependent class that provides the QT's ProgressBar.

All mitk-classes will call this class for output: mitk::ProgressBar::GetInstance();

Definition at line 28 of file QmitkProgressBar.h.

Constructor & Destructor Documentation

QmitkProgressBar()

QmitkProgressBar::QmitkProgressBar	(	QWidget *	parent = nullptr,
		const char *	name = nullptr
	)

Constructor; holds param instance internally and connects this to the mitkProgressBar.

Definition at line 59 of file QmitkProgressBar.cpp.

References mitk::ProgressBar::GetInstance(), mitk::ProgressBar::RegisterImplementationInstance(), SetPercentageVisible(), SignalAddStepsToDo(), SignalProgress(), SignalSetPercentageVisible(), SlotAddStepsToDo(), SlotProgress(), and SlotSetPercentageVisible().

~QmitkProgressBar()

QmitkProgressBar::~QmitkProgressBar ( )

override

Destructor.

Definition at line 74 of file QmitkProgressBar.cpp.

References mitk::ProgressBar::GetInstance(), and mitk::ProgressBar::UnregisterImplementationInstance().

Member Function Documentation

AddStepsToDo()

void QmitkProgressBar::AddStepsToDo ( unsigned int  steps )

overridevirtual

Adds steps to totalSteps.

Documentation

Implements mitk::ProgressBarImplementation.

Definition at line 44 of file QmitkProgressBar.cpp.

References SignalAddStepsToDo().

Progress()

void QmitkProgressBar::Progress ( unsigned int  steps )

overridevirtual

Sets the current amount of progress to current progress + steps.

Parameters

Implements mitk::ProgressBarImplementation.

Definition at line 54 of file QmitkProgressBar.cpp.

References SignalProgress().

SetPercentageVisible()

void QmitkProgressBar::SetPercentageVisible ( bool  visible )

overridevirtual

Sets whether the current progress value is displayed.

Sets whether the current progress value is displayed.

Implements mitk::ProgressBarImplementation.

Definition at line 35 of file QmitkProgressBar.cpp.

References SignalSetPercentageVisible().

Referenced by QmitkProgressBar().

SignalAddStepsToDo

void QmitkProgressBar::SignalAddStepsToDo ( unsigned int  steps )

signal

Referenced by AddStepsToDo(), and QmitkProgressBar().

SignalProgress

void QmitkProgressBar::SignalProgress ( unsigned int  steps )

signal

Referenced by Progress(), and QmitkProgressBar().

SignalSetPercentageVisible

void QmitkProgressBar::SignalSetPercentageVisible ( bool  visible )

signal

Referenced by QmitkProgressBar(), and SetPercentageVisible().

SlotAddStepsToDo

void QmitkProgressBar::SlotAddStepsToDo ( unsigned int  steps )

protectedvirtualslot

Definition at line 98 of file QmitkProgressBar.cpp.

References mitk::RenderingManager::ExecutePendingRequests(), and mitk::RenderingManager::GetInstance().

Referenced by QmitkProgressBar().

SlotProgress

void QmitkProgressBar::SlotProgress ( unsigned int  steps )

protectedvirtualslot

Definition at line 79 of file QmitkProgressBar.cpp.

References mitk::RenderingManager::ExecutePendingRequests(), and mitk::RenderingManager::GetInstance().

Referenced by QmitkProgressBar().

SlotSetPercentageVisible

void QmitkProgressBar::SlotSetPercentageVisible ( bool  visible )

protectedvirtualslot

Definition at line 114 of file QmitkProgressBar.cpp.

Referenced by QmitkProgressBar().

---

The documentation for this class was generated from the following files:

• QmitkProgressBar.h
• QmitkProgressBar.cpp
