Abstract class of a configuration widget for NDI Devices. For implementations see NDIAuroraWidget or NDIPolarisWidget. More...

#include <QmitkNDIAbstractDeviceWidget.h>

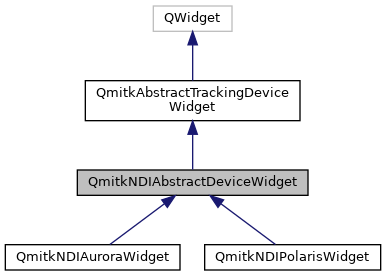

Inheritance diagram for QmitkNDIAbstractDeviceWidget:

[legend]

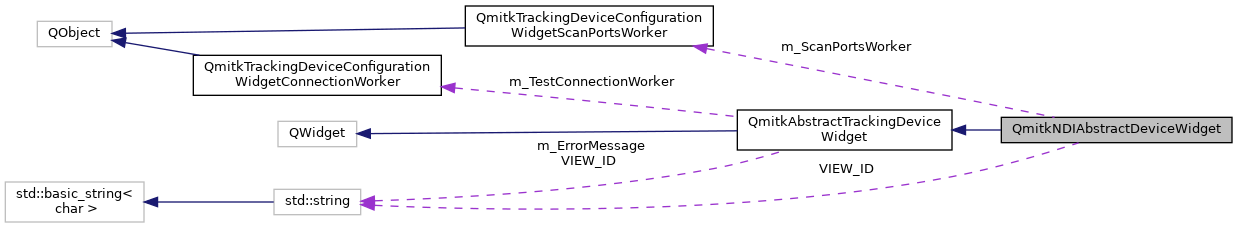

Collaboration diagram for QmitkNDIAbstractDeviceWidget:

[legend]

Signals
void	PortsScanned (int Port, QString result, int PortType)

Signals inherited from QmitkAbstractTrackingDeviceWidget
void	ConnectionTested (bool connected, QString output)

Public Member Functions
	QmitkNDIAbstractDeviceWidget (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr)

	~QmitkNDIAbstractDeviceWidget () override

void	Initialize () override=0
	Subclass must implement this method to return a pointer to a copy of the object. Please don't forget to call InitializeSuperclassWidget(), CreateQtPartControl and optionally CreateConnections during this function. More...

void	AddOutput (std::string s) override=0
	Optional method to add output to a small screen in the trackingToolbox (see QmitkNDIPolarisWidget) More...

Public Member Functions inherited from QmitkAbstractTrackingDeviceWidget
	QmitkAbstractTrackingDeviceWidget (QWidget *parent=nullptr, Qt::WindowFlags f=nullptr)

	~QmitkAbstractTrackingDeviceWidget () override

QmitkAbstractTrackingDeviceWidget *	CloneForQt (QWidget *parent=nullptr) const
	Return pointer to copy of the object. Internally use of QmitkUSAbstractCustomWidget::Clone() with additionaly setting an internal flag that the object was really cloned. More...

bool	IsInitialized () const

virtual void	ResetOutput ()
	Optional method to add output to a small screen in the trackingToolbox (see QmitkNDIPolarisWidget) More...

virtual mitk::TrackingDevice::Pointer	GetTrackingDevice ()=0

virtual void	StoreUISettings ()
	Optional method to store and load settings of your widget (see QmitkNDIPolarisWidget) More...

virtual void	LoadUISettings ()
	Optional method to store and load settings of your widget (see QmitkNDIPolarisWidget) More...

virtual bool	IsDeviceInstalled ()
	Optional method to investigate if drivers etc for your device are installed. The default value is "true" as most devices don't need this information. Others however migth crash, and for these you might implement this function (see QmitkMicronTrackerWidget) More...

virtual void	OnConnected (bool)
	This function is called, when in the TrackingToolboxView "Connect" was clicked and the device is successful connected. Can e.g. be used to activate options of a tracking device only when it is connected. More...

virtual void	OnDisconnected (bool)
	This function is called, when in the TrackingToolboxView "Disconnect" was clicked and the device is successful disconnected. Can e.g. be used to activate/disactivate options of a tracking device. More...

virtual void	OnStartTracking (bool)
	This function is called, when in the TrackingToolboxView "Start Tracking" was clicked and the device successfully started tracking. Can e.g. be used to activate options of a tracking device only when tracking is started. More...

virtual void	OnStopTracking (bool)
	This function is called, when in the TrackingToolboxView "Stop Tracking" was clicked and the device successful stopped tracking. Can e.g. be used to activate/disactivate options when device is not tracking. More...

virtual void	OnToolStorageChanged ()
	This function is called, when anything in the ToolStorage changed, e.g. AddTool or EditTool. ServiceListener is connected in the QmitkMITKIGTTrackingToolboxView. More...

Static Public Attributes
static const std::string	VIEW_ID

Static Public Attributes inherited from QmitkAbstractTrackingDeviceWidget
static const std::string	VIEW_ID

Protected Slots
void	AutoScanPorts ()

void	AutoScanPortsFinished (int Port, QString result, int PortType)

Protected Slots inherited from QmitkAbstractTrackingDeviceWidget
void	TestConnectionFinished (bool connected, QString output)

void	TestConnection ()

Protected Member Functions
void	InitializeNDIWidget ()

virtual void	SetPortValueToGUI (int portValue)=0

virtual void	SetPortTypeToGUI (int portType)=0

Protected Member Functions inherited from QmitkAbstractTrackingDeviceWidget
PERSISTENCE_GET_SERVICE_METHOD_MACRO void	InitializeSuperclassWidget ()

virtual QmitkAbstractTrackingDeviceWidget *	Clone (QWidget *parent=nullptr) const =0
	Subclass must implement this method to return a pointer to a copy of the object. Please don't forget to call Initialize() during this function and copy all of your settings. More...

Protected Attributes
QmitkTrackingDeviceConfigurationWidgetScanPortsWorker *	m_ScanPortsWorker

QThread *	m_ScanPortsWorkerThread

Protected Attributes inherited from QmitkAbstractTrackingDeviceWidget
QmitkTrackingDeviceConfigurationWidgetConnectionWorker *	m_TestConnectionWorker

QThread *	m_TestConnectionWorkerThread

Additional Inherited Members
Public Attributes inherited from QmitkAbstractTrackingDeviceWidget
std::string	m_ErrorMessage
	current problem description More...

Detailed Description

Abstract class of a configuration widget for NDI Devices. For implementations see NDIAuroraWidget or NDIPolarisWidget.

Documentation:

Definition at line 26 of file QmitkNDIAbstractDeviceWidget.h.

Constructor & Destructor Documentation

◆ QmitkNDIAbstractDeviceWidget()

QmitkNDIAbstractDeviceWidget::QmitkNDIAbstractDeviceWidget	(	QWidget *	parent = `nullptr`,
		Qt::WindowFlags	f = `nullptr`
	)

Definition at line 19 of file QmitkNDIAbstractDeviceWidget.cpp.

◆ ~QmitkNDIAbstractDeviceWidget()

QmitkNDIAbstractDeviceWidget::~QmitkNDIAbstractDeviceWidget ( )

override

Definition at line 32 of file QmitkNDIAbstractDeviceWidget.cpp.

References AutoScanPortsFinished(), m_ScanPortsWorker, m_ScanPortsWorkerThread, and PortsScanned().

Member Function Documentation

◆ AddOutput()

void QmitkNDIAbstractDeviceWidget::AddOutput ( std::string )

overridepure virtual

Optional method to add output to a small screen in the trackingToolbox (see QmitkNDIPolarisWidget)

Reimplemented from QmitkAbstractTrackingDeviceWidget.

Implemented in QmitkNDIPolarisWidget, and QmitkNDIAuroraWidget.

Referenced by AutoScanPorts(), and AutoScanPortsFinished().

◆ AutoScanPorts

void QmitkNDIAbstractDeviceWidget::AutoScanPorts ( )

protectedslot

Definition at line 45 of file QmitkNDIAbstractDeviceWidget.cpp.

References AddOutput(), and m_ScanPortsWorkerThread.

Referenced by QmitkNDIAuroraWidget::~QmitkNDIAuroraWidget(), and QmitkNDIPolarisWidget::~QmitkNDIPolarisWidget().

◆ AutoScanPortsFinished

void QmitkNDIAbstractDeviceWidget::AutoScanPortsFinished	(	int	Port,
		QString	result,
		int	PortType
	)

protectedslot

This slot is called when the port scanning is finished.

Definition at line 52 of file QmitkNDIAbstractDeviceWidget.cpp.

References AddOutput(), m_ScanPortsWorkerThread, MITK_WARN, SetPortTypeToGUI(), and SetPortValueToGUI().

Referenced by ~QmitkNDIAbstractDeviceWidget().

◆ Initialize()

void QmitkNDIAbstractDeviceWidget::Initialize ( )

overridepure virtual

Subclass must implement this method to return a pointer to a copy of the object. Please don't forget to call InitializeSuperclassWidget(), CreateQtPartControl and optionally CreateConnections during this function.

Implements QmitkAbstractTrackingDeviceWidget.

Implemented in QmitkNDIAuroraWidget, and QmitkNDIPolarisWidget.
