Widget that allows to perform and represents a multiple node selection. More...

#include <QmitkMultiNodeSelectionWidget.h>

Inheritance diagram for QmitkMultiNodeSelectionWidget:

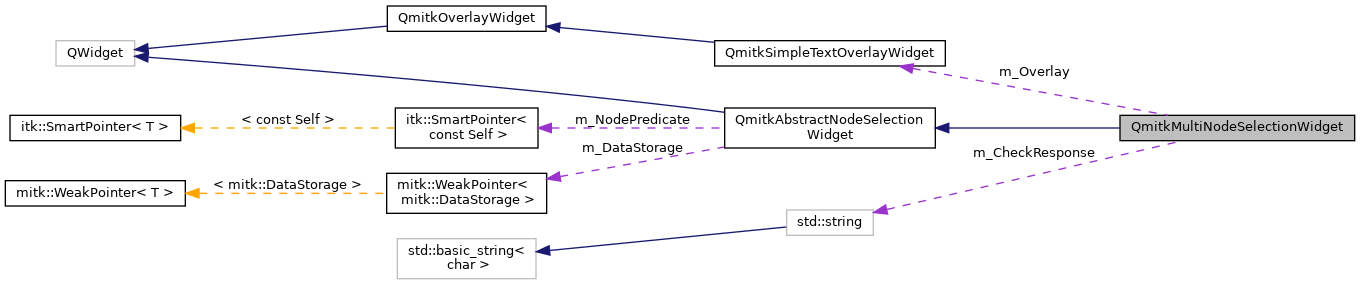

Collaboration diagram for QmitkMultiNodeSelectionWidget:

[legend]

Public Types
using	NodeList = QmitkAbstractNodeSelectionWidget::NodeList

using	SelectionCheckFunctionType = std::function< std::string(const NodeList &)>

Public Types inherited from QmitkAbstractNodeSelectionWidget
using	NodeList = QList< mitk::DataNode::Pointer >

Public Slots
void	OnEditSelection ()

Public Slots inherited from QmitkAbstractNodeSelectionWidget
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)

void	SetCurrentSelection (NodeList selectedNodes)

void	SetInvalidInfo (QString info)

void	SetEmptyInfo (QString info)

void	SetPopUpTitel (QString info)

void	SetPopUpHint (QString info)

void	SetSelectionIsOptional (bool isOptional)

Public Member Functions
	QmitkMultiNodeSelectionWidget (QWidget *parent=nullptr)

void	SetSelectionCheckFunction (const SelectionCheckFunctionType &checkFunction)

Public Member Functions inherited from QmitkAbstractNodeSelectionWidget
	QmitkAbstractNodeSelectionWidget (QWidget *parent=nullptr)

virtual	~QmitkAbstractNodeSelectionWidget () override

void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used /monitored by widget. More...

void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)

const mitk::NodePredicateBase *	GetNodePredicate () const

QString	GetInvalidInfo () const

QString	GetEmptyInfo () const

QString	GetPopUpTitel () const

QString	GetPopUpHint () const

bool	GetSelectionIsOptional () const

bool	GetSelectOnlyVisibleNodes () const

NodeList	GetSelectedNodes () const

Protected Slots
void	OnClearSelection (const mitk::DataNode *node)

Protected Slots inherited from QmitkAbstractNodeSelectionWidget
void	RemoveNodeFromSelection (const mitk::DataNode *node)

Protected Member Functions
void	changeEvent (QEvent *event) override

void	UpdateInfo () override

void	OnInternalSelectionChanged () override

bool	AllowEmissionOfSelection (const NodeList &emissionCandidates) const override

Protected Member Functions inherited from QmitkAbstractNodeSelectionWidget
virtual void	OnNodePredicateChanged ()

virtual void	OnDataStorageChanged ()

virtual void	OnNodeAddedToStorage (const mitk::DataNode *node)

virtual void	OnNodeRemovedFromStorage (const mitk::DataNode *node)

void	HandleChangeOfInternalSelection (NodeList newInternalSelection)

NodeList	CompileEmitSelection () const

virtual void	ReviseSelectionChanged (const NodeList &oldInternalSelection, NodeList &newInternalSelection)

void	EmitSelection (const NodeList &emissionCandidates)

void	SetCurrentInternalSelection (NodeList selectedNodes)

const NodeList &	GetCurrentInternalSelection () const

const NodeList &	GetCurrentExternalSelection () const

Protected Attributes
QmitkSimpleTextOverlayWidget *	m_Overlay

SelectionCheckFunctionType	m_CheckFunction

std::string	m_CheckResponse

Ui_QmitkMultiNodeSelectionWidget	m_Controls

Protected Attributes inherited from QmitkAbstractNodeSelectionWidget
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage

mitk::NodePredicateBase::ConstPointer	m_NodePredicate

QString	m_InvalidInfo

QString	m_EmptyInfo

QString	m_PopUpTitel

QString	m_PopUpHint

bool	m_IsOptional

bool	m_SelectOnlyVisibleNodes

Additional Inherited Members
Signals inherited from QmitkAbstractNodeSelectionWidget
void	CurrentSelectionChanged (NodeList nodes)

Detailed Description

Widget that allows to perform and represents a multiple node selection.

Definition at line 36 of file QmitkMultiNodeSelectionWidget.h.

Member Typedef Documentation

◆ NodeList

using QmitkMultiNodeSelectionWidget::NodeList = QmitkAbstractNodeSelectionWidget::NodeList

Definition at line 43 of file QmitkMultiNodeSelectionWidget.h.

◆ SelectionCheckFunctionType

using QmitkMultiNodeSelectionWidget::SelectionCheckFunctionType = std::function<std::string(const NodeList &)>

Helper function that is used to check the given selection for consistency. Returning an empty string assumes that everything is alright and the selection is valid. If the string is not empty, the content of the string will be used as error message in the overlay to indicate the problem.

Definition at line 49 of file QmitkMultiNodeSelectionWidget.h.

Constructor & Destructor Documentation

◆ QmitkMultiNodeSelectionWidget()

QmitkMultiNodeSelectionWidget::QmitkMultiNodeSelectionWidget ( QWidget * parent = nullptr )

explicit

Definition at line 22 of file QmitkMultiNodeSelectionWidget.cpp.

References m_CheckFunction, m_Controls, m_Overlay, OnEditSelection(), OnInternalSelectionChanged(), and UpdateInfo().

Member Function Documentation

◆ AllowEmissionOfSelection()

bool QmitkMultiNodeSelectionWidget::AllowEmissionOfSelection ( const NodeList & emissionCandidates ) const

overrideprotectedvirtual

This function will be called before the CurrentSelectionChanged signal is emitted. The return value indicates if the signal should be emitted (true = emission; false = no emission). The default implementation always returns true.

Parameters

emissionCandidates The nodes that will be emitted if the function returns true.

Reimplemented from QmitkAbstractNodeSelectionWidget.

Definition at line 154 of file QmitkMultiNodeSelectionWidget.cpp.

References m_CheckFunction, and m_CheckResponse.

◆ changeEvent()

void QmitkMultiNodeSelectionWidget::changeEvent ( QEvent * event )

overrideprotected

Definition at line 145 of file QmitkMultiNodeSelectionWidget.cpp.

References UpdateInfo().

◆ OnClearSelection

void QmitkMultiNodeSelectionWidget::OnClearSelection ( const mitk::DataNode * node )

protectedslot

Definition at line 140 of file QmitkMultiNodeSelectionWidget.cpp.

References QmitkAbstractNodeSelectionWidget::RemoveNodeFromSelection().

Referenced by OnInternalSelectionChanged().

◆ OnEditSelection

void QmitkMultiNodeSelectionWidget::OnEditSelection ( )

slot

Definition at line 50 of file QmitkMultiNodeSelectionWidget.cpp.

References QmitkAbstractNodeSelectionWidget::CompileEmitSelection(), QmitkNodeSelectionDialog::GetSelectedNodes(), QmitkAbstractNodeSelectionWidget::HandleChangeOfInternalSelection(), mitk::WeakPointer< T >::Lock(), m_Controls, QmitkAbstractNodeSelectionWidget::m_DataStorage, QmitkAbstractNodeSelectionWidget::m_NodePredicate, QmitkAbstractNodeSelectionWidget::m_PopUpHint, QmitkAbstractNodeSelectionWidget::m_PopUpTitel, QmitkAbstractNodeSelectionWidget::m_SelectOnlyVisibleNodes, QmitkNodeSelectionDialog::SetCurrentSelection(), QmitkNodeSelectionDialog::SetDataStorage(), QmitkNodeSelectionDialog::SetNodePredicate(), QmitkNodeSelectionDialog::SetSelectionMode(), and QmitkNodeSelectionDialog::SetSelectOnlyVisibleNodes().

Referenced by QmitkMultiNodeSelectionWidget().

◆ OnInternalSelectionChanged()

void QmitkMultiNodeSelectionWidget::OnInternalSelectionChanged ( )

overrideprotectedvirtual

This member function will called when ever a new internal selection has been determined. This can be used to update the state of internal widgets. The default implementation does nothing.

Reimplemented from QmitkAbstractNodeSelectionWidget.

Definition at line 115 of file QmitkMultiNodeSelectionWidget.cpp.

References QmitkAbstractNodeSelectionWidget::GetCurrentInternalSelection(), m_Controls, QmitkAbstractNodeSelectionWidget::m_IsOptional, QmitkAbstractNodeSelectionWidget::m_NodePredicate, and OnClearSelection().

Referenced by QmitkMultiNodeSelectionWidget().

◆ SetSelectionCheckFunction()

void QmitkMultiNodeSelectionWidget::SetSelectionCheckFunction ( const SelectionCheckFunctionType & checkFunction )

A selection check function can be set. If set the widget uses this function to check the made/set selection. If the selection is valid, everything is fine. If selection is indicated as invalid, it will not be communicated by the widget (no signal emission.

Definition at line 35 of file QmitkMultiNodeSelectionWidget.cpp.

References QmitkAbstractNodeSelectionWidget::CompileEmitSelection(), QmitkAbstractNodeSelectionWidget::EmitSelection(), m_CheckFunction, m_CheckResponse, and UpdateInfo().
