QmitkMouseModeSwitcher Class Reference

Qt toolbar representing mitk::MouseModeSwitcher. More...

#include <QmitkMouseModeSwitcher.h>

Inheritance diagram for QmitkMouseModeSwitcher:

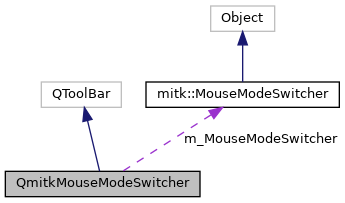

Collaboration diagram for QmitkMouseModeSwitcher:

Public Types
typedef mitk::MouseModeSwitcher::MouseMode	MouseMode

Public Slots
void	setMouseModeSwitcher (mitk::MouseModeSwitcher *)
	Connect to non-GUI class. More...

Signals
void	MouseModeSelected (MouseMode id)
	Mode activated. More...

Public Member Functions
	QmitkMouseModeSwitcher (QWidget *parent=nullptr)
	~QmitkMouseModeSwitcher () override

Protected Slots
void	OnMouseModeChangedViaButton ()
void	addButton (MouseMode id, const QString &toolName, const QIcon &icon, bool on=false)

Protected Member Functions
void	OnMouseModeChangedViaCommand (const itk::EventObject &)

Protected Attributes
QActionGroup *	m_ActionGroup
mitk::MouseModeSwitcher *	m_MouseModeSwitcher
unsigned long	m_ObserverTag
bool	m_ActionButtonBlocked

Detailed Description

Qt toolbar representing mitk::MouseModeSwitcher.

Provides buttons for the interaction modes defined in mitk::MouseModeSwitcher and communicates with this non-graphical class.

Can be used in a GUI to provide a mouse mode selector to the user.

Definition at line 32 of file QmitkMouseModeSwitcher.h.

Member Typedef Documentation

MouseMode

typedef mitk::MouseModeSwitcher::MouseMode QmitkMouseModeSwitcher::MouseMode

Definition at line 41 of file QmitkMouseModeSwitcher.h.

Constructor & Destructor Documentation

QmitkMouseModeSwitcher()

QmitkMouseModeSwitcher::QmitkMouseModeSwitcher

(

QWidget *

parent = nullptr

)

Definition at line 16 of file QmitkMouseModeSwitcher.cpp.

References addButton(), mitk::MouseModeSwitcher::LevelWindow, m_ActionGroup, mitk::MouseModeSwitcher::MousePointer, mitk::MouseModeSwitcher::Pan, mitk::MouseModeSwitcher::Scroll, and mitk::MouseModeSwitcher::Zoom.

~QmitkMouseModeSwitcher()

QmitkMouseModeSwitcher::~QmitkMouseModeSwitcher ( )

override

Definition at line 45 of file QmitkMouseModeSwitcher.cpp.

References m_MouseModeSwitcher, and m_ObserverTag.

Member Function Documentation

addButton

void QmitkMouseModeSwitcher::addButton ( MouseMode  id, const QString &  toolName, const QIcon &  icon, bool  on = false  )

protectedslot

Definition at line 34 of file QmitkMouseModeSwitcher.cpp.

References m_ActionGroup, and OnMouseModeChangedViaButton().

Referenced by QmitkMouseModeSwitcher().

MouseModeSelected

void QmitkMouseModeSwitcher::MouseModeSelected ( MouseMode  id )

signal

Mode activated.

This signal is needed for other GUI element to react appropriately. Sadly this is needed to provide "normal" functionality of QmitkStdMultiWidget, because this must enable/disable automatic reaction of SliceNavigationControllers to mouse clicks - depending on which mode is active.

Referenced by OnMouseModeChangedViaButton().

OnMouseModeChangedViaButton

void QmitkMouseModeSwitcher::OnMouseModeChangedViaButton ( )

protectedslot

Definition at line 71 of file QmitkMouseModeSwitcher.cpp.

References m_ActionButtonBlocked, m_MouseModeSwitcher, MouseModeSelected(), mitk::MouseModeSwitcher::SelectMouseMode(), and mitk::MouseModeSwitcher::SetInteractionScheme().

Referenced by addButton().

OnMouseModeChangedViaCommand()

void QmitkMouseModeSwitcher::OnMouseModeChangedViaCommand ( const itk::EventObject &  )

protected

Definition at line 93 of file QmitkMouseModeSwitcher.cpp.

References mitk::MouseModeSwitcher::GetCurrentMouseMode(), m_ActionButtonBlocked, m_ActionGroup, and m_MouseModeSwitcher.

Referenced by setMouseModeSwitcher().

setMouseModeSwitcher

void QmitkMouseModeSwitcher::setMouseModeSwitcher ( mitk::MouseModeSwitcher *  mms )

slot

Connect to non-GUI class.

When a button is pressed, given mitk::MouseModeSwitcher is informed to adapt interactors.

Definition at line 53 of file QmitkMouseModeSwitcher.cpp.

References m_MouseModeSwitcher, m_ObserverTag, and OnMouseModeChangedViaCommand().

Member Data Documentation

m_ActionButtonBlocked

bool QmitkMouseModeSwitcher::m_ActionButtonBlocked

protected

Definition at line 81 of file QmitkMouseModeSwitcher.h.

Referenced by OnMouseModeChangedViaButton(), and OnMouseModeChangedViaCommand().

m_ActionGroup

QActionGroup* QmitkMouseModeSwitcher::m_ActionGroup

protected

Definition at line 76 of file QmitkMouseModeSwitcher.h.

Referenced by addButton(), OnMouseModeChangedViaCommand(), and QmitkMouseModeSwitcher().

m_MouseModeSwitcher

mitk::MouseModeSwitcher* QmitkMouseModeSwitcher::m_MouseModeSwitcher

protected

Definition at line 77 of file QmitkMouseModeSwitcher.h.

Referenced by OnMouseModeChangedViaButton(), OnMouseModeChangedViaCommand(), setMouseModeSwitcher(), and ~QmitkMouseModeSwitcher().

m_ObserverTag

unsigned long QmitkMouseModeSwitcher::m_ObserverTag

protected

Definition at line 79 of file QmitkMouseModeSwitcher.h.

Referenced by setMouseModeSwitcher(), and ~QmitkMouseModeSwitcher().

---

The documentation for this class was generated from the following files:

• QmitkMouseModeSwitcher.h
• QmitkMouseModeSwitcher.cpp
