QmitkInitialValuesDelegate Class Reference

Toolkit includes. More...

#include <QmitkInitialValuesDelegate.h>

Inheritance diagram for QmitkInitialValuesDelegate:

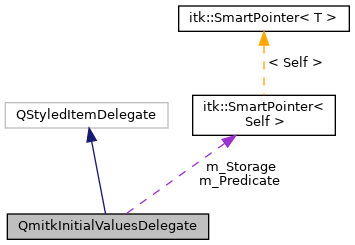

Collaboration diagram for QmitkInitialValuesDelegate:

Public Member Functions
	QmitkInitialValuesDelegate (QObject *parent=nullptr)
QWidget *	createEditor (QWidget *parent, const QStyleOptionViewItem &option, const QModelIndex &index) const override
void	setEditorData (QWidget *editor, const QModelIndex &index) const override
void	setModelData (QWidget *editor, QAbstractItemModel *model, const QModelIndex &index) const override
void	setDataStorage (mitk::DataStorage *storage)
void	setNodePredicate (mitk::NodePredicateBase *predicate)

Protected Member Functions
int	valueType (const QModelIndex &index) const

Protected Attributes
mitk::DataStorage::Pointer	m_Storage
mitk::NodePredicateBase::Pointer	m_Predicate

Detailed Description

Toolkit includes.

An item delegate for rendering and editing the initial value (source) for a parameter. The delegate assumes the following: 1) the data requested with the edit role, will be an double if it is an simple scalar type. If the type is image, it will be a pointer to the currently selected data node. If nothing is selected now it will be a nullptr.

Definition at line 32 of file QmitkInitialValuesDelegate.h.

Constructor & Destructor Documentation

QmitkInitialValuesDelegate()

QmitkInitialValuesDelegate::QmitkInitialValuesDelegate

(

QObject *

parent = nullptr

)

Definition at line 24 of file QmitkInitialValuesDelegate.cpp.

Member Function Documentation

createEditor()

QWidget * QmitkInitialValuesDelegate::createEditor ( QWidget *  parent, const QStyleOptionViewItem &  option, const QModelIndex &  index  ) const

override

Definition at line 28 of file QmitkInitialValuesDelegate.cpp.

References m_Predicate, m_Storage, and valueType().

setDataStorage()

void QmitkInitialValuesDelegate::setDataStorage

(

mitk::DataStorage *

storage

)

Definition at line 104 of file QmitkInitialValuesDelegate.cpp.

References m_Storage, and setNodePredicate().

Referenced by QmitkInitialValuesManagerWidget::setDataStorage(), and setModelData().

setEditorData()

void QmitkInitialValuesDelegate::setEditorData ( QWidget *  editor, const QModelIndex &  index  ) const

override

Definition at line 63 of file QmitkInitialValuesDelegate.cpp.

References QmitkDataStorageComboBox::Find(), and valueType().

setModelData()

void QmitkInitialValuesDelegate::setModelData ( QWidget *  editor, QAbstractItemModel *  model, const QModelIndex &  index  ) const

override

Definition at line 86 of file QmitkInitialValuesDelegate.cpp.

References QmitkDataStorageComboBox::GetSelectedNode(), setDataStorage(), and valueType().

setNodePredicate()

void QmitkInitialValuesDelegate::setNodePredicate

(

mitk::NodePredicateBase *

predicate

)

Definition at line 110 of file QmitkInitialValuesDelegate.cpp.

References m_Predicate.

Referenced by setDataStorage(), and QmitkInitialValuesManagerWidget::setReferenceImageGeometry().

valueType()

int QmitkInitialValuesDelegate::valueType ( const QModelIndex &  index ) const

protected

Definition at line 56 of file QmitkInitialValuesDelegate.cpp.

Referenced by createEditor(), setEditorData(), and setModelData().

Member Data Documentation

m_Predicate

mitk::NodePredicateBase::Pointer QmitkInitialValuesDelegate::m_Predicate

protected

Predicates that is used to filter for potential/allowed images in the data storage

Definition at line 56 of file QmitkInitialValuesDelegate.h.

Referenced by createEditor(), and setNodePredicate().

m_Storage

mitk::DataStorage::Pointer QmitkInitialValuesDelegate::m_Storage

protected

Storage is used as source for potantial initial value images.

Definition at line 54 of file QmitkInitialValuesDelegate.h.

Referenced by createEditor(), and setDataStorage().

---

The documentation for this class was generated from the following files:

• QmitkInitialValuesDelegate.h
• QmitkInitialValuesDelegate.cpp
