QmitkFunctionalityCoordinator Class Reference

#include <QmitkFunctionalityCoordinator.h>

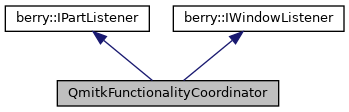

Inheritance diagram for QmitkFunctionalityCoordinator:

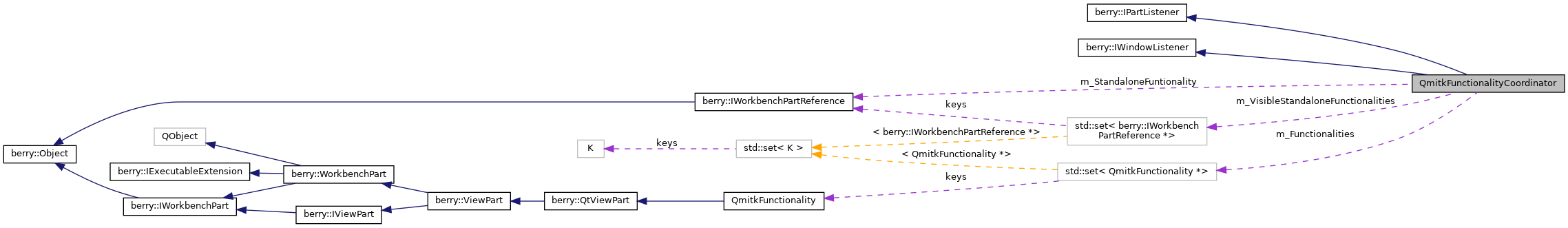

Collaboration diagram for QmitkFunctionalityCoordinator:

Public Member Functions
	QmitkFunctionalityCoordinator ()
	~QmitkFunctionalityCoordinator () override
void	Start ()
void	Stop ()
berry::IPartListener::Events::Types	GetPartEventTypes () const override
void	PartActivated (const berry::IWorkbenchPartReference::Pointer &partRef) override
void	PartDeactivated (const berry::IWorkbenchPartReference::Pointer &) override
void	PartOpened (const berry::IWorkbenchPartReference::Pointer &partRef) override
void	PartClosed (const berry::IWorkbenchPartReference::Pointer &partRef) override
void	PartHidden (const berry::IWorkbenchPartReference::Pointer &partRef) override
void	PartVisible (const berry::IWorkbenchPartReference::Pointer &partRef) override
void	WindowClosed (const berry::IWorkbenchWindow::Pointer &window) override
void	WindowOpened (const berry::IWorkbenchWindow::Pointer &) override
Public Member Functions inherited from berry::IPartListener
virtual	~IPartListener ()
virtual void	PartBroughtToTop (const IWorkbenchPartReference::Pointer &)
virtual void	PartInputChanged (const IWorkbenchPartReference::Pointer &)
Public Member Functions inherited from berry::IWindowListener
virtual	~IWindowListener ()
virtual void	WindowActivated (const IWorkbenchWindow::Pointer &)
virtual void	WindowDeactivated (const IWorkbenchWindow::Pointer &)

Protected Member Functions
void	ActivateStandaloneFunctionality (berry::IWorkbenchPartReference *partRef)
void	DeactivateStandaloneFunctionality (berry::IWorkbenchPartReference *functionality, berry::IWorkbenchPartReference *newRef)

Protected Attributes
berry::IWorkbenchWindow::WeakPtr	m_Window
berry::IWorkbenchPartReference *	m_StandaloneFuntionality
std::set< QmitkFunctionality * >	m_Functionalities
std::set< berry::IWorkbenchPartReference * >	m_VisibleStandaloneFunctionalities

Detailed Description

A class which coordinates active QmitkFunctionalities, e.g. calling activated and hidden on them.

Definition at line 31 of file QmitkFunctionalityCoordinator.h.

Constructor & Destructor Documentation

QmitkFunctionalityCoordinator()

QmitkFunctionalityCoordinator::QmitkFunctionalityCoordinator

(

)

Definition at line 21 of file QmitkFunctionalityCoordinator.cpp.

~QmitkFunctionalityCoordinator()

QmitkFunctionalityCoordinator::~QmitkFunctionalityCoordinator ( )

override

Definition at line 48 of file QmitkFunctionalityCoordinator.cpp.

Member Function Documentation

ActivateStandaloneFunctionality()

void QmitkFunctionalityCoordinator::ActivateStandaloneFunctionality ( berry::IWorkbenchPartReference *  partRef )

protected

Activates the standalone functionality

Definition at line 168 of file QmitkFunctionalityCoordinator.cpp.

References QmitkFunctionality::Activated(), DeactivateStandaloneFunctionality(), berry::IWorkbenchPartReference::GetPart(), QmitkFunctionality::IsActivated(), QmitkFunctionality::IsExclusiveFunctionality(), m_StandaloneFuntionality, MITK_INFO, and QmitkFunctionality::SetActivated().

Referenced by PartActivated(), PartHidden(), and PartVisible().

DeactivateStandaloneFunctionality()

void QmitkFunctionalityCoordinator::DeactivateStandaloneFunctionality ( berry::IWorkbenchPartReference *  functionality, berry::IWorkbenchPartReference *  newRef  )

protected

Deactivates the standalone functionality

Definition at line 191 of file QmitkFunctionalityCoordinator.cpp.

References QmitkFunctionality::Deactivated(), berry::IWorkbenchPartReference::GetPart(), QmitkFunctionality::IsActivated(), and QmitkFunctionality::SetActivated().

Referenced by ActivateStandaloneFunctionality(), and PartClosed().

GetPartEventTypes()

berry::IPartListener::Events::Types QmitkFunctionalityCoordinator::GetPartEventTypes ( ) const

overridevirtual

See also

IPartListener::GetPartEventTypes()

Implements berry::IPartListener.

Definition at line 52 of file QmitkFunctionalityCoordinator.cpp.

References berry::IPartListener::Events::ACTIVATED, berry::IPartListener::Events::CLOSED, berry::IPartListener::Events::DEACTIVATED, berry::IPartListener::Events::HIDDEN, berry::IPartListener::Events::OPENED, and berry::IPartListener::Events::VISIBLE.

PartActivated()

void QmitkFunctionalityCoordinator::PartActivated ( const berry::IWorkbenchPartReference::Pointer &  partRef )

overridevirtual

See also

IPartListener::PartActivated()

Reimplemented from berry::IPartListener.

Definition at line 59 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), and berry::SmartPointer< TObjectType >::GetPointer().

PartClosed()

void QmitkFunctionalityCoordinator::PartClosed ( const berry::IWorkbenchPartReference::Pointer &  partRef )

overridevirtual

See also

IPartListener::PartClosed()

Reimplemented from berry::IPartListener.

Definition at line 93 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::Cast(), DeactivateStandaloneFunctionality(), QmitkStdMultiWidgetEditor::EDITOR_ID, berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), m_Functionalities, and m_StandaloneFuntionality.

PartDeactivated()

void QmitkFunctionalityCoordinator::PartDeactivated ( const berry::IWorkbenchPartReference::Pointer &  )

overridevirtual

See also

IPartListener::PartDeactivated()

Reimplemented from berry::IPartListener.

Definition at line 65 of file QmitkFunctionalityCoordinator.cpp.

PartHidden()

void QmitkFunctionalityCoordinator::PartHidden ( const berry::IWorkbenchPartReference::Pointer &  partRef )

overridevirtual

See also

IPartListener::PartHidden()

Reimplemented from berry::IPartListener.

Definition at line 129 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::Cast(), berry::SmartPointer< TObjectType >::GetPointer(), and m_VisibleStandaloneFunctionalities.

PartOpened()

void QmitkFunctionalityCoordinator::PartOpened ( const berry::IWorkbenchPartReference::Pointer &  partRef )

overridevirtual

See also

IPartListener::PartOpened()

Reimplemented from berry::IPartListener.

Definition at line 70 of file QmitkFunctionalityCoordinator.cpp.

References berry::SmartPointer< TObjectType >::Cast(), QmitkStdMultiWidgetEditor::EDITOR_ID, berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), and m_Functionalities.

PartVisible()

void QmitkFunctionalityCoordinator::PartVisible ( const berry::IWorkbenchPartReference::Pointer &  partRef )

overridevirtual

See also

IPartListener::PartVisible()

Reimplemented from berry::IPartListener.

Definition at line 147 of file QmitkFunctionalityCoordinator.cpp.

References ActivateStandaloneFunctionality(), berry::SmartPointer< TObjectType >::Cast(), berry::SmartPointer< TObjectType >::GetPointer(), berry::SmartPointer< TObjectType >::IsNotNull(), and m_VisibleStandaloneFunctionalities.

Start()

void QmitkFunctionalityCoordinator::Start

(

)

Add listener

Definition at line 26 of file QmitkFunctionalityCoordinator.cpp.

References berry::IWorkbench::AddWindowListener(), and berry::PlatformUI::GetWorkbench().

Stop()

void QmitkFunctionalityCoordinator::Stop

(

)

Remove listener

Definition at line 36 of file QmitkFunctionalityCoordinator.cpp.

References berry::PlatformUI::GetWorkbench(), berry::PlatformUI::IsWorkbenchRunning(), and berry::IWorkbench::RemoveWindowListener().

WindowClosed()

void QmitkFunctionalityCoordinator::WindowClosed ( const berry::IWorkbenchWindow::Pointer &  window )

overridevirtual

Notifies this listener that the given window has been closed.

Reimplemented from berry::IWindowListener.

Definition at line 208 of file QmitkFunctionalityCoordinator.cpp.

WindowOpened()

void QmitkFunctionalityCoordinator::WindowOpened ( const berry::IWorkbenchWindow::Pointer &  window )

overridevirtual

Notifies this listener that the given window has been opened.

Reimplemented from berry::IWindowListener.

Definition at line 213 of file QmitkFunctionalityCoordinator.cpp.

Member Data Documentation

m_Functionalities

std::set<QmitkFunctionality*> QmitkFunctionalityCoordinator::m_Functionalities

protected

Saves all opened QmitkFclassunctionalities

Definition at line 110 of file QmitkFunctionalityCoordinator.h.

Referenced by PartClosed(), and PartOpened().

m_StandaloneFuntionality

berry::IWorkbenchPartReference* QmitkFunctionalityCoordinator::m_StandaloneFuntionality

protected

Saves the last part that added interactors

Definition at line 105 of file QmitkFunctionalityCoordinator.h.

Referenced by ActivateStandaloneFunctionality(), and PartClosed().

m_VisibleStandaloneFunctionalities

std::set<berry::IWorkbenchPartReference*> QmitkFunctionalityCoordinator::m_VisibleStandaloneFunctionalities

protected

Saves all visible QmitkFunctionalities

Definition at line 114 of file QmitkFunctionalityCoordinator.h.

Referenced by PartHidden(), and PartVisible().

m_Window

berry::IWorkbenchWindow::WeakPtr QmitkFunctionalityCoordinator::m_Window

protected

Saves the workbench window

Definition at line 101 of file QmitkFunctionalityCoordinator.h.

---

The documentation for this class was generated from the following files:

• QmitkFunctionalityCoordinator.h
• QmitkFunctionalityCoordinator.cpp
