QmitkDataStorageTreeInspector Class Reference

#include <QmitkDataStorageTreeInspector.h>

Inheritance diagram for QmitkDataStorageTreeInspector:

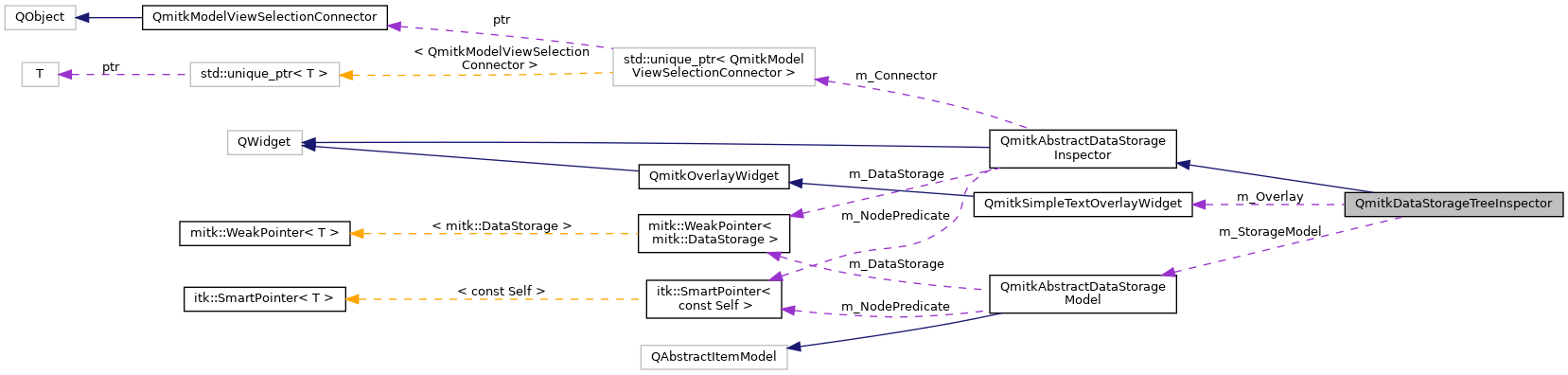

Collaboration diagram for QmitkDataStorageTreeInspector:

Public Member Functions
	QmitkDataStorageTreeInspector (QWidget *parent=nullptr)
QAbstractItemView *	GetView () override
const QAbstractItemView *	GetView () const override
void	SetSelectionMode (SelectionMode mode) override
SelectionMode	GetSelectionMode () const override
Public Member Functions inherited from QmitkAbstractDataStorageInspector
	~QmitkAbstractDataStorageInspector () override
void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used /monitored by the widget. More...
virtual void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and updates the widget, according to the node predicate. More...
const mitk::NodePredicateBase *	GetNodePredicate () const
NodeList	GetSelectedNodes () const
bool	GetSelectOnlyVisibleNodes () const

Protected Member Functions
void	Initialize () override
void	OnModelReset ()
Protected Member Functions inherited from QmitkAbstractDataStorageInspector
	QmitkAbstractDataStorageInspector (QWidget *parent=nullptr)

Protected Attributes
QmitkAbstractDataStorageModel *	m_StorageModel
Ui_QmitkDataStorageTreeInspector	m_Controls
QmitkSimpleTextOverlayWidget *	m_Overlay
Protected Attributes inherited from QmitkAbstractDataStorageInspector
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage
mitk::NodePredicateBase::ConstPointer	m_NodePredicate
std::unique_ptr< QmitkModelViewSelectionConnector >	m_Connector

Additional Inherited Members
Public Types inherited from QmitkAbstractDataStorageInspector
using	NodeList = QList< mitk::DataNode::Pointer >
using	SelectionMode = QAbstractItemView::SelectionMode
Public Slots inherited from QmitkAbstractDataStorageInspector
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)
	Change the selection modus of the item view's selection model. More...
void	SetCurrentSelection (NodeList selectedNodes)
	Transform a list of data nodes into a model selection and set this as a new selection of the selection model of the private member item view. More...
Signals inherited from QmitkAbstractDataStorageInspector
void	CurrentSelectionChanged (NodeList nodes)
	A signal that will be emitted if the selected node has changed. More...
Protected Slots inherited from QmitkAbstractDataStorageInspector
void	OnSelectionChanged (NodeList selectedNodes)

Detailed Description

Definition at line 29 of file QmitkDataStorageTreeInspector.h.

Constructor & Destructor Documentation

QmitkDataStorageTreeInspector()

QmitkDataStorageTreeInspector::QmitkDataStorageTreeInspector

(

QWidget *

parent = nullptr

)

Definition at line 17 of file QmitkDataStorageTreeInspector.cpp.

References m_Controls, m_Overlay, m_StorageModel, OnModelReset(), and QmitkSimpleTextOverlayWidget::SetOverlayText().

Member Function Documentation

GetSelectionMode()

QmitkDataStorageTreeInspector::SelectionMode QmitkDataStorageTreeInspector::GetSelectionMode ( ) const

overridevirtual

Implements QmitkAbstractDataStorageInspector.

Definition at line 64 of file QmitkDataStorageTreeInspector.cpp.

References m_Controls.

GetView() [1/2]

QAbstractItemView * QmitkDataStorageTreeInspector::GetView ( )

overridevirtual

Returns an pointer to the view that is used in the inspector to show the content.

Implements QmitkAbstractDataStorageInspector.

Definition at line 39 of file QmitkDataStorageTreeInspector.cpp.

References m_Controls.

GetView() [2/2]

const QAbstractItemView * QmitkDataStorageTreeInspector::GetView ( ) const

overridevirtual

Implements QmitkAbstractDataStorageInspector.

Definition at line 44 of file QmitkDataStorageTreeInspector.cpp.

References m_Controls.

Initialize()

void QmitkDataStorageTreeInspector::Initialize ( )

overrideprotectedvirtual

Helper function is called if data storage or predicate is changed to (re) initialize the widget correctly. Implement the function in derived classes.

Implements QmitkAbstractDataStorageInspector.

Definition at line 49 of file QmitkDataStorageTreeInspector.cpp.

References mitk::WeakPointer< T >::Lock(), QmitkAbstractDataStorageInspector::m_Connector, m_Controls, QmitkAbstractDataStorageInspector::m_DataStorage, QmitkAbstractDataStorageInspector::m_NodePredicate, m_StorageModel, QmitkAbstractDataStorageModel::SetDataStorage(), and QmitkAbstractDataStorageModel::SetNodePredicate().

OnModelReset()

void QmitkDataStorageTreeInspector::OnModelReset ( )

protected

Definition at line 69 of file QmitkDataStorageTreeInspector.cpp.

References m_Overlay, and m_StorageModel.

Referenced by QmitkDataStorageTreeInspector().

SetSelectionMode()

void QmitkDataStorageTreeInspector::SetSelectionMode ( SelectionMode  mode )

overridevirtual

Sets the selection mode of the inspector.

Implements QmitkAbstractDataStorageInspector.

Definition at line 59 of file QmitkDataStorageTreeInspector.cpp.

References m_Controls.

Member Data Documentation

m_Controls

Ui_QmitkDataStorageTreeInspector QmitkDataStorageTreeInspector::m_Controls

protected

Definition at line 47 of file QmitkDataStorageTreeInspector.h.

Referenced by GetSelectionMode(), GetView(), Initialize(), QmitkDataStorageTreeInspector(), and SetSelectionMode().

m_Overlay

QmitkSimpleTextOverlayWidget* QmitkDataStorageTreeInspector::m_Overlay

protected

Definition at line 48 of file QmitkDataStorageTreeInspector.h.

Referenced by OnModelReset(), and QmitkDataStorageTreeInspector().

m_StorageModel

QmitkAbstractDataStorageModel* QmitkDataStorageTreeInspector::m_StorageModel

protected

Definition at line 46 of file QmitkDataStorageTreeInspector.h.

Referenced by Initialize(), OnModelReset(), and QmitkDataStorageTreeInspector().

---

The documentation for this class was generated from the following files:

• QmitkDataStorageTreeInspector.h
• QmitkDataStorageTreeInspector.cpp
