QmitkDataStorageListInspector Class Reference

#include <QmitkDataStorageListInspector.h>

Inheritance diagram for QmitkDataStorageListInspector:

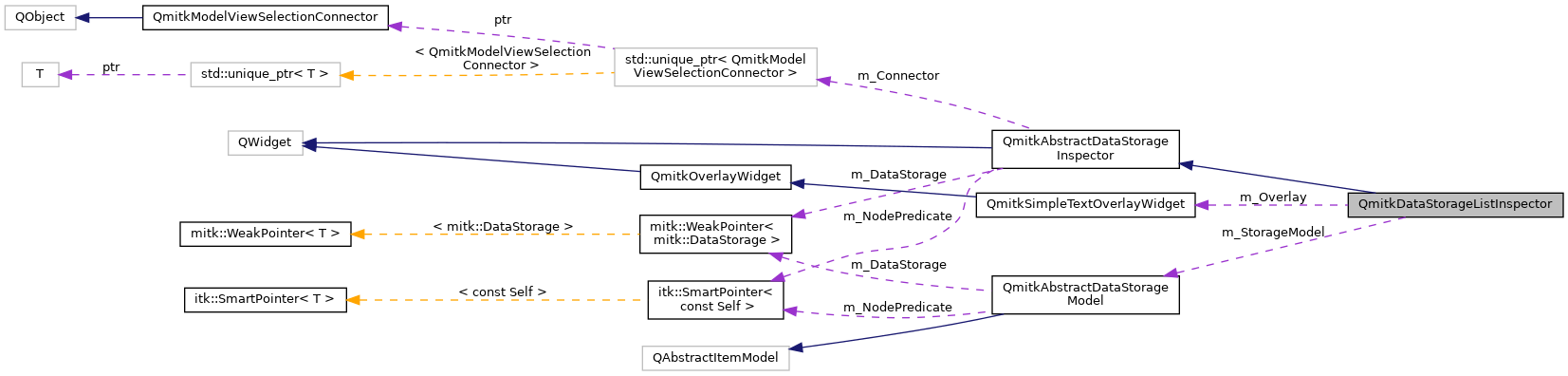

Collaboration diagram for QmitkDataStorageListInspector:

Public Member Functions
	QmitkDataStorageListInspector (QWidget *parent=nullptr)
QAbstractItemView *	GetView () override
const QAbstractItemView *	GetView () const override
void	SetSelectionMode (SelectionMode mode) override
SelectionMode	GetSelectionMode () const override
Public Member Functions inherited from QmitkAbstractDataStorageInspector
	~QmitkAbstractDataStorageInspector () override
void	SetDataStorage (mitk::DataStorage *dataStorage)
	Sets the data storage that will be used /monitored by the widget. More...
virtual void	SetNodePredicate (const mitk::NodePredicateBase *nodePredicate)
	Sets the node predicate and updates the widget, according to the node predicate. More...
const mitk::NodePredicateBase *	GetNodePredicate () const
NodeList	GetSelectedNodes () const
bool	GetSelectOnlyVisibleNodes () const

Protected Member Functions
void	Initialize () override
void	OnModelReset ()
Protected Member Functions inherited from QmitkAbstractDataStorageInspector
	QmitkAbstractDataStorageInspector (QWidget *parent=nullptr)

Protected Attributes
QmitkAbstractDataStorageModel *	m_StorageModel
Ui_QmitkDataStorageListInspector	m_Controls
QmitkSimpleTextOverlayWidget *	m_Overlay
Protected Attributes inherited from QmitkAbstractDataStorageInspector
mitk::WeakPointer< mitk::DataStorage >	m_DataStorage
mitk::NodePredicateBase::ConstPointer	m_NodePredicate
std::unique_ptr< QmitkModelViewSelectionConnector >	m_Connector

Additional Inherited Members
Public Types inherited from QmitkAbstractDataStorageInspector
using	NodeList = QList< mitk::DataNode::Pointer >
using	SelectionMode = QAbstractItemView::SelectionMode
Public Slots inherited from QmitkAbstractDataStorageInspector
void	SetSelectOnlyVisibleNodes (bool selectOnlyVisibleNodes)
	Change the selection modus of the item view's selection model. More...
void	SetCurrentSelection (NodeList selectedNodes)
	Transform a list of data nodes into a model selection and set this as a new selection of the selection model of the private member item view. More...
Signals inherited from QmitkAbstractDataStorageInspector
void	CurrentSelectionChanged (NodeList nodes)
	A signal that will be emitted if the selected node has changed. More...
Protected Slots inherited from QmitkAbstractDataStorageInspector
void	OnSelectionChanged (NodeList selectedNodes)

Detailed Description

Definition at line 26 of file QmitkDataStorageListInspector.h.

Constructor & Destructor Documentation

QmitkDataStorageListInspector()

QmitkDataStorageListInspector::QmitkDataStorageListInspector

(

QWidget *

parent = nullptr

)

Definition at line 17 of file QmitkDataStorageListInspector.cpp.

References m_Controls, m_Overlay, m_StorageModel, OnModelReset(), and QmitkSimpleTextOverlayWidget::SetOverlayText().

Member Function Documentation

GetSelectionMode()

QmitkDataStorageListInspector::SelectionMode QmitkDataStorageListInspector::GetSelectionMode ( ) const

overridevirtual

Implements QmitkAbstractDataStorageInspector.

Definition at line 60 of file QmitkDataStorageListInspector.cpp.

References m_Controls.

GetView() [1/2]

QAbstractItemView * QmitkDataStorageListInspector::GetView ( )

overridevirtual

Returns an pointer to the view that is used in the inspector to show the content.

Implements QmitkAbstractDataStorageInspector.

Definition at line 37 of file QmitkDataStorageListInspector.cpp.

References m_Controls.

GetView() [2/2]

const QAbstractItemView * QmitkDataStorageListInspector::GetView ( ) const

overridevirtual

Implements QmitkAbstractDataStorageInspector.

Definition at line 42 of file QmitkDataStorageListInspector.cpp.

References m_Controls.

Initialize()

void QmitkDataStorageListInspector::Initialize ( )

overrideprotectedvirtual

Helper function is called if data storage or predicate is changed to (re) initialize the widget correctly. Implement the function in derived classes.

Implements QmitkAbstractDataStorageInspector.

Definition at line 47 of file QmitkDataStorageListInspector.cpp.

References mitk::WeakPointer< T >::Lock(), QmitkAbstractDataStorageInspector::m_Connector, m_Controls, QmitkAbstractDataStorageInspector::m_DataStorage, QmitkAbstractDataStorageInspector::m_NodePredicate, m_StorageModel, QmitkAbstractDataStorageModel::SetDataStorage(), and QmitkAbstractDataStorageModel::SetNodePredicate().

OnModelReset()

void QmitkDataStorageListInspector::OnModelReset ( )

protected

Definition at line 65 of file QmitkDataStorageListInspector.cpp.

References m_Overlay, and m_StorageModel.

Referenced by QmitkDataStorageListInspector().

SetSelectionMode()

void QmitkDataStorageListInspector::SetSelectionMode ( SelectionMode  mode )

overridevirtual

Sets the selection mode of the inspector.

Implements QmitkAbstractDataStorageInspector.

Definition at line 55 of file QmitkDataStorageListInspector.cpp.

References m_Controls.

Member Data Documentation

m_Controls

Ui_QmitkDataStorageListInspector QmitkDataStorageListInspector::m_Controls

protected

Definition at line 44 of file QmitkDataStorageListInspector.h.

Referenced by GetSelectionMode(), GetView(), Initialize(), QmitkDataStorageFavoriteNodesInspector::QmitkDataStorageFavoriteNodesInspector(), QmitkDataStorageListInspector(), and SetSelectionMode().

m_Overlay

QmitkSimpleTextOverlayWidget* QmitkDataStorageListInspector::m_Overlay

protected

Definition at line 45 of file QmitkDataStorageListInspector.h.

Referenced by OnModelReset(), and QmitkDataStorageListInspector().

m_StorageModel

QmitkAbstractDataStorageModel* QmitkDataStorageListInspector::m_StorageModel

protected

Definition at line 43 of file QmitkDataStorageListInspector.h.

Referenced by Initialize(), OnModelReset(), and QmitkDataStorageListInspector().

---

The documentation for this class was generated from the following files:

• QmitkDataStorageListInspector.h
• QmitkDataStorageListInspector.cpp
