mitk::modelFit::ModelFitInfo Class Reference

Data class that stores all information about a modelfit that is relevant to the visualization and stored as properties in the result nodes. More...

#include <mitkModelFitInfo.h>

Inheritance diagram for mitk::modelFit::ModelFitInfo:

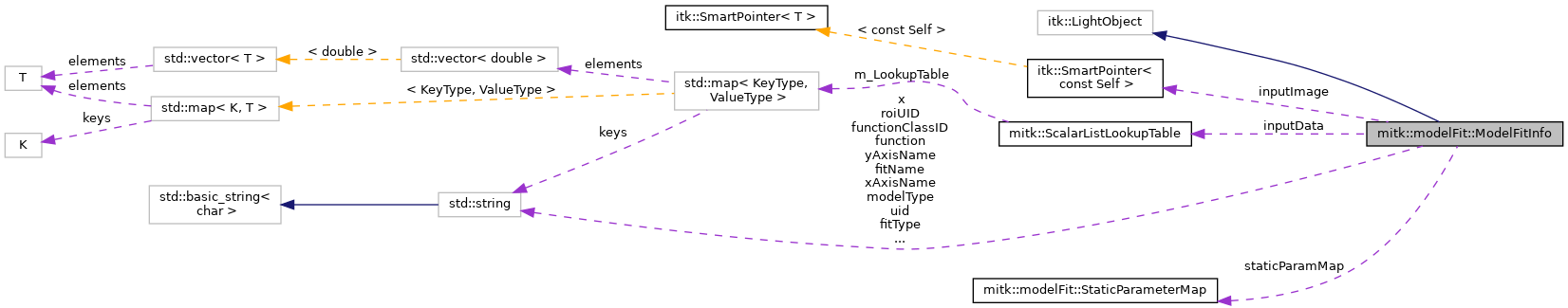

Collaboration diagram for mitk::modelFit::ModelFitInfo:

Public Types
typedef std::string	UIDType
typedef std::vector< Parameter::Pointer >	ParamListType
typedef ParamListType::const_iterator	ConstIterType

Public Member Functions
	mitkClassMacroItkParent (ModelFitInfo, itk::LightObject)
	itkSimpleNewMacro (ModelFitInfo)
	ModelFitInfo ()
void	AddParameter (Parameter::Pointer p)
	Adds the given parameter to this fit's parameter list if it doesn't exist already. More...
Parameter::ConstPointer	GetParameter (const std::string &name, const Parameter::Type &type) const
	Searches for the parameter with the given name and type in the fit's parameter list and returns it. More...
void	DeleteParameter (const std::string &name, const Parameter::Type &type)
	Searches for the parameter with the given name and type in the fit's parameter list and deletes it if it exists. More...
const ParamListType &	GetParameters () const

Public Attributes
std::string	modelName
std::string	modelType
std::string	function
std::string	functionClassID
std::string	x
std::string	xAxisName
std::string	xAxisUnit
std::string	yAxisName
std::string	yAxisUnit
UIDType	uid
std::string	fitName
std::string	fitType
StaticParameterMap	staticParamMap
UIDType	roiUID
ScalarListLookupTable	inputData
mitk::Image::ConstPointer	inputImage

Detailed Description

Data class that stores all information about a modelfit that is relevant to the visualization and stored as properties in the result nodes.

Definition at line 36 of file mitkModelFitInfo.h.

Member Typedef Documentation

ConstIterType

typedef ParamListType::const_iterator mitk::modelFit::ModelFitInfo::ConstIterType

Definition at line 41 of file mitkModelFitInfo.h.

ParamListType

typedef std::vector<Parameter::Pointer> mitk::modelFit::ModelFitInfo::ParamListType

Definition at line 40 of file mitkModelFitInfo.h.

UIDType

typedef std::string mitk::modelFit::ModelFitInfo::UIDType

Definition at line 39 of file mitkModelFitInfo.h.

Constructor & Destructor Documentation

ModelFitInfo()

mitk::modelFit::ModelFitInfo::ModelFitInfo ( )

inline

Definition at line 46 of file mitkModelFitInfo.h.

Member Function Documentation

AddParameter()

void mitk::modelFit::ModelFitInfo::AddParameter

(

Parameter::Pointer

p

)

Adds the given parameter to this fit's parameter list if it doesn't exist already.

Parameters

p	The param that should be added to this fit's parameter list.

DeleteParameter()

void mitk::modelFit::ModelFitInfo::DeleteParameter	(	const std::string &	name,
		const Parameter::Type &	type
	)

Searches for the parameter with the given name and type in the fit's parameter list and deletes it if it exists.

Parameters

name	The name of the desired parameter.
type	The type of the desired parameter.

GetParameter()

Parameter::ConstPointer mitk::modelFit::ModelFitInfo::GetParameter	(	const std::string &	name,
		const Parameter::Type &	type
	)		const

Searches for the parameter with the given name and type in the fit's parameter list and returns it.

Parameters

name	The name of the desired parameter.
type	The type of the desired parameter.

Returns

The parameter with the given name on success or NULL otherwise.

GetParameters()

const ParamListType& mitk::modelFit::ModelFitInfo::GetParameters

(

)

const

Return const reference to the parameter list.

itkSimpleNewMacro()

mitk::modelFit::ModelFitInfo::itkSimpleNewMacro

(

ModelFitInfo

)

mitkClassMacroItkParent()

mitk::modelFit::ModelFitInfo::mitkClassMacroItkParent	(	ModelFitInfo	,
		itk::LightObject
	)

Member Data Documentation

fitName

std::string mitk::modelFit::ModelFitInfo::fitName

ModelFitConstants::FIT_NAME_PROPERTY_NAME

Definition at line 105 of file mitkModelFitInfo.h.

fitType

std::string mitk::modelFit::ModelFitInfo::fitType

ModelFitConstants::FIT_TYPE_PROPERTY_NAME

Definition at line 107 of file mitkModelFitInfo.h.

function

std::string mitk::modelFit::ModelFitInfo::function

ModelFitConstants::MODEL_FUNCTION_PROPERTY_NAME

Definition at line 86 of file mitkModelFitInfo.h.

functionClassID

std::string mitk::modelFit::ModelFitInfo::functionClassID

ModelFitConstants::MODEL_FUNCTION_CLASS_PROPERTY_NAME

Definition at line 88 of file mitkModelFitInfo.h.

inputData

ScalarListLookupTable mitk::modelFit::ModelFitInfo::inputData

ModelFitConstants::FIT_INPUT_DATA_PROPERTY_NAME

Definition at line 113 of file mitkModelFitInfo.h.

inputImage

mitk::Image::ConstPointer mitk::modelFit::ModelFitInfo::inputImage

Definition at line 114 of file mitkModelFitInfo.h.

modelName

std::string mitk::modelFit::ModelFitInfo::modelName

ModelFitConstants::MODEL_NAME_PROPERTY_NAME

Definition at line 82 of file mitkModelFitInfo.h.

modelType

std::string mitk::modelFit::ModelFitInfo::modelType

ModelFitConstants::MODEL_TYPE_PROPERTY_NAME

Definition at line 84 of file mitkModelFitInfo.h.

roiUID

UIDType mitk::modelFit::ModelFitInfo::roiUID

ModelFitConstants::FIT_INPUT_ROIUID_PROPERTY_NAME

Definition at line 111 of file mitkModelFitInfo.h.

staticParamMap

StaticParameterMap mitk::modelFit::ModelFitInfo::staticParamMap

ModelFitConstants::FIT_STATIC_PARAMETERS_PROPERTY_NAME

Definition at line 109 of file mitkModelFitInfo.h.

Referenced by mitk::ConcreteAIFBasedModelFactory< TwoTissueCompartmentModelParameterizer >::DoCreateParameterizer().

uid

UIDType mitk::modelFit::ModelFitInfo::uid

ModelFitConstants::FIT_UID_PROPERTY_NAME

Definition at line 103 of file mitkModelFitInfo.h.

x

std::string mitk::modelFit::ModelFitInfo::x

ModelFitConstants::MODEL_X_PROPERTY_NAME

Definition at line 90 of file mitkModelFitInfo.h.

xAxisName

std::string mitk::modelFit::ModelFitInfo::xAxisName

ModelFitConstants::XAXIS_NAME_PROPERTY_NAME

Definition at line 93 of file mitkModelFitInfo.h.

xAxisUnit

std::string mitk::modelFit::ModelFitInfo::xAxisUnit

ModelFitConstants::XAXIS_UNIT_PROPERTY_NAME

Definition at line 95 of file mitkModelFitInfo.h.

yAxisName

std::string mitk::modelFit::ModelFitInfo::yAxisName

ModelFitConstants::YAXIS_NAME_PROPERTY_NAME

Definition at line 98 of file mitkModelFitInfo.h.

yAxisUnit

std::string mitk::modelFit::ModelFitInfo::yAxisUnit

ModelFitConstants::YAXIS_UNIT_PROPERTY_NAME

Definition at line 100 of file mitkModelFitInfo.h.

---

The documentation for this class was generated from the following file:

• mitkModelFitInfo.h
