A limited linear undo model providing GUI elements with stack status information. More...

#include <mitkVerboseLimitedLinearUndo.h>

Inheritance diagram for mitk::VerboseLimitedLinearUndo:

[legend]

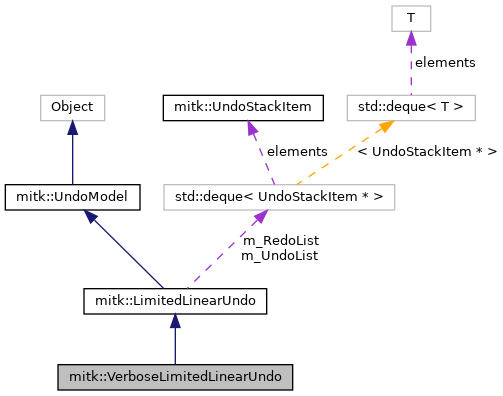

Collaboration diagram for mitk::VerboseLimitedLinearUndo:

[legend]

Public Types
typedef VerboseLimitedLinearUndo	Self

typedef LimitedLinearUndo	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::pair< int, std::string >	StackDescriptionItem

typedef std::vector< StackDescriptionItem >	StackDescription

Public Types inherited from mitk::LimitedLinearUndo
typedef std::deque< UndoStackItem * >	UndoContainer

typedef std::deque< UndoStackItem * >::reverse_iterator	UndoContainerRevIter

typedef LimitedLinearUndo	Self

typedef UndoModel	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::UndoModel
typedef UndoModel	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

bool	SetOperationEvent (UndoStackItem *undoStackItem) override
	a list of pairs (int,string), representing a stack with ObjectEventIDs and descriptions More...

virtual StackDescription	GetUndoDescriptions ()

virtual StackDescription	GetRedoDescriptions ()

Public Member Functions inherited from mitk::LimitedLinearUndo
Pointer	Clone () const

bool	Undo () override
	Undoes the last changes. More...

bool	Undo (bool) override

virtual bool	Undo (int oeid)
	Undoes all changes until ObjectEventID oeid. More...

bool	Redo () override
	Undoes the last changes. More...

bool	Redo (bool) override

virtual bool	Redo (int oeid)
	Redoes all changes until ObjectEventID oeid. More...

void	Clear () override
	Clears UndoList and RedoList. More...

void	ClearRedoList () override
	Clears the RedoList. More...

bool	RedoListEmpty () override
	True, if RedoList is empty. More...

bool	UndoListEmpty () override
	True, if UndoList is empty. More...

std::size_t	GetUndoLimit () const override
	Gets the limit on the size of the undo history. The undo limit determines how many items can be stored in the undo stack. If the value is 0 that means that there is no limit. More...

void	SetUndoLimit (std::size_t limit) override
	Sets a limit on the size of the undo history. If the limit is reached, the oldest undo items will be dropped from the bottom of the undo stack. The 0 value means that there is no limit. More...

int	GetLastObjectEventIdInList () override
	Returns the ObjectEventId of the top element in the OperationHistory. More...

int	GetLastGroupEventIdInList () override
	Returns the GroupEventId of the top element in the OperationHistory. More...

OperationEvent *	GetLastOfType (OperationActor *destination, OperationType opType) override
	Returns the last specified OperationEvent in Undo-list corresponding to the given values; if nothing found, then returns nullptr. More...

unsigned int	RemoveInvalidOperations () override
	Removes invalid operations from the undo/redo stack. Iterates through m_UndoList and m_RedoList and removes invalid OperationEvents. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::LimitedLinearUndo
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::UndoModel
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	VerboseLimitedLinearUndo ()

	~VerboseLimitedLinearUndo () override

Protected Member Functions inherited from mitk::LimitedLinearUndo
	LimitedLinearUndo ()

	~LimitedLinearUndo () override

void	ClearList (UndoContainer *list)

Protected Member Functions inherited from mitk::UndoModel
	UndoModel ()

	~UndoModel () override

Additional Inherited Members
Protected Attributes inherited from mitk::LimitedLinearUndo
UndoContainer	m_UndoList

UndoContainer	m_RedoList

Detailed Description

A limited linear undo model providing GUI elements with stack status information.

Basically does the same, as LimitedLinearUndo class, but it allows you to retrieve a string list, which describes the undo stack or the redo stack. This can be used for display by GUI elements.

Definition at line 35 of file mitkVerboseLimitedLinearUndo.h.
