OpenGL-based mapper to display a 2d cut through a poly data OpenGL-based mapper to display a 2D cut through a poly data. The result is normally a line. This class can be added to any data object, which is rendered in 3D via a vtkPolyData. More...

#include <mitkUnstructuredGridMapper2D.h>

Inheritance diagram for mitk::UnstructuredGridMapper2D:

[legend]

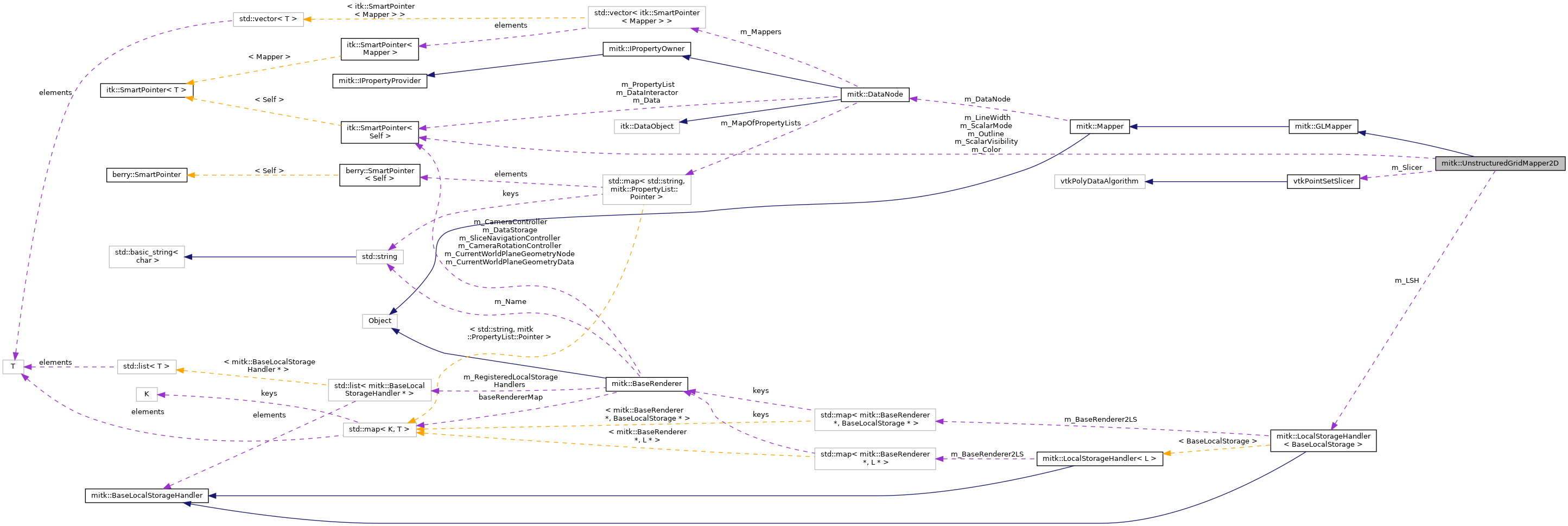

Collaboration diagram for mitk::UnstructuredGridMapper2D:

[legend]

Public Member Functions
	mitkClassMacro (UnstructuredGridMapper2D, GLMapper)

Pointer	Clone () const

void	Paint (mitk::BaseRenderer *renderer) override

Public Member Functions inherited from mitk::GLMapper
	mitkClassMacro (GLMapper, Mapper)

virtual void	ApplyProperties (mitk::BaseRenderer *renderer)
	Apply color and opacity properties read from the PropertyList. More...

void	ApplyColorAndOpacityProperties (mitk::BaseRenderer renderer, vtkActor actor=nullptr) override
	Apply color and opacity properties read from the PropertyList. The actor is not used in the GLMappers. Called by mapper subclasses. More...

void	MitkRender (mitk::BaseRenderer *renderer, mitk::VtkPropRenderer::RenderType type) override
	Checks visibility and calls the paint method. More...

virtual bool	IsVtkBased () const override
	Returns whether this is a vtk-based mapper. More...

Public Member Functions inherited from mitk::Mapper
virtual std::vector< std::string >	GetClassHierarchy () const

virtual const char *	GetClassName () const

virtual void	SetDataNode (DataNode *_arg)
	Set the DataNode containing the data to map. More...

virtual DataNode *	GetDataNode () const
	Get the DataNode containing the data to map. Method only returns valid DataNode Pointer if the mapper belongs to a data node. Otherwise, the returned DataNode Pointer might be invalid. More...

BaseData *	GetData () const
	Get the data to map. More...

virtual bool	GetColor (float rgb[3], BaseRenderer renderer, const char name="color") const
	Convenience access method for color properties (instances of ColorProperty) More...

virtual bool	GetVisibility (bool &visible, BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty) More...

virtual bool	GetOpacity (float &opacity, BaseRenderer renderer, const char name="opacity") const
	Convenience access method for opacity properties (instances of FloatProperty) More...

virtual bool	GetLevelWindow (LevelWindow &levelWindow, BaseRenderer renderer, const char name="levelwindow") const
	Convenience access method for color properties (instances of LevelWindoProperty) More...

virtual bool	IsVisible (BaseRenderer renderer, const char name="visible") const
	Convenience access method for visibility properties (instances of BoolProperty). Return value is the visibility. Default is visible==true, i.e., true is returned even if the property (propertyKey) is not found. More...

virtual void	Update (BaseRenderer *renderer)
	Calls the time step of the input data for the specified renderer and checks whether the time step is valid and calls method GenerateDataForRenderer() More...

TimeStepType	GetTimestep () const
	Returns the current time step as calculated from the renderer. More...

virtual bool	IsLODEnabled (BaseRenderer *) const

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::Mapper
static const char *	GetStaticNameOfClass ()

static void	SetDefaultProperties (DataNode node, BaseRenderer renderer=nullptr, bool overwrite=false)
	Set default values of properties used by this mapper to node. More...

Public Attributes
LocalStorageHandler< BaseLocalStorage >	m_LSH

Protected Member Functions
	UnstructuredGridMapper2D ()

	~UnstructuredGridMapper2D () override

void	GenerateDataForRenderer (BaseRenderer *) override
	Generate the data needed for rendering into renderer. More...

virtual vtkAbstractMapper3D *	GetVtkAbstractMapper3D (BaseRenderer *renderer)

virtual vtkPointSet *	GetVtkPointSet (BaseRenderer *renderer, int time=0)

virtual vtkScalarsToColors *	GetVtkLUT (BaseRenderer *renderer)

virtual bool	IsConvertibleToVtkPointSet (BaseRenderer *renderer)

Protected Member Functions inherited from mitk::GLMapper
	GLMapper ()
	Returns whether this mapper allows picking in the renderwindow virtual bool IsPickable() const { return false; }. More...

	~GLMapper () override

Protected Member Functions inherited from mitk::Mapper
	Mapper ()
	explicit constructor which disallows implicit conversions More...

	~Mapper () override
	virtual destructor in order to derive from this class More...

virtual void	GenerateData ()
	Generate the data needed for rendering (independent of a specific renderer) More...

virtual void	CalculateTimeStep (BaseRenderer *renderer)
	Updates the time step, which is sometimes needed in subclasses. More...

virtual void	ResetMapper (BaseRenderer *)
	Reset the mapper (i.e., make sure that nothing is displayed) if no valid data is present. In most cases the reimplemented function disables the according actors (toggling visibility off) More...

Protected Attributes
vtkPlane *	m_Plane

vtkPointSetSlicer *	m_Slicer

vtkPointSet *	m_VtkPointSet

vtkScalarsToColors *	m_ScalarsToColors

vtkPiecewiseFunction *	m_ScalarsToOpacity

mitk::ColorProperty::Pointer	m_Color

mitk::IntProperty::Pointer	m_LineWidth

mitk::BoolProperty::Pointer	m_Outline

mitk::BoolProperty::Pointer	m_ScalarVisibility

mitk::VtkScalarModeProperty::Pointer	m_ScalarMode

Protected Attributes inherited from mitk::Mapper
mitk::DataNode *	m_DataNode

Additional Inherited Members
Public Types inherited from mitk::Mapper
typedef Mapper	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Detailed Description

OpenGL-based mapper to display a 2d cut through a poly data OpenGL-based mapper to display a 2D cut through a poly data. The result is normally a line. This class can be added to any data object, which is rendered in 3D via a vtkPolyData.

Definition at line 42 of file mitkUnstructuredGridMapper2D.h.

Constructor & Destructor Documentation

◆ UnstructuredGridMapper2D()

mitk::UnstructuredGridMapper2D::UnstructuredGridMapper2D ( )

protected

◆ ~UnstructuredGridMapper2D()

mitk::UnstructuredGridMapper2D::~UnstructuredGridMapper2D ( )

overrideprotected

Member Function Documentation

◆ Clone()

Pointer mitk::UnstructuredGridMapper2D::Clone ( ) const

◆ GenerateDataForRenderer()

void mitk::UnstructuredGridMapper2D::GenerateDataForRenderer ( BaseRenderer * )

overrideprotectedvirtual

Generate the data needed for rendering into renderer.

Reimplemented from mitk::Mapper.

◆ GetVtkAbstractMapper3D()

virtual vtkAbstractMapper3D* mitk::UnstructuredGridMapper2D::GetVtkAbstractMapper3D ( BaseRenderer * renderer )

protectedvirtual

Determines, if the associated BaseData is mapped three-dimensionally (mapper-slot id 2) with a class convertable to vtkAbstractMapper3D().

Returns: nullptr if it is not convertable or the appropriate Mapper otherwise

◆ GetVtkLUT()

virtual vtkScalarsToColors* mitk::UnstructuredGridMapper2D::GetVtkLUT ( BaseRenderer * renderer )

protectedvirtual

Determines the LookupTable used by the associated vtkMapper. returns the LUT if possible, otherwise nullptr.

◆ GetVtkPointSet()

virtual vtkPointSet* mitk::UnstructuredGridMapper2D::GetVtkPointSet	(	BaseRenderer *	renderer,
		int	time = `0`
	)

protectedvirtual

Determines the pointset object to be cut. returns the pointset if possible, otherwise nullptr.

◆ IsConvertibleToVtkPointSet()

virtual bool mitk::UnstructuredGridMapper2D::IsConvertibleToVtkPointSet ( BaseRenderer * renderer )

protectedvirtual

Checks if this mapper can be used to generate cuts through the associated base data.

Returns: true if yes or false if not.

◆ mitkClassMacro()

mitk::UnstructuredGridMapper2D::mitkClassMacro	(	UnstructuredGridMapper2D	,
		GLMapper
	)

◆ New()

static Pointer mitk::UnstructuredGridMapper2D::New ( )

static

◆ Paint()

void mitk::UnstructuredGridMapper2D::Paint ( mitk::BaseRenderer * renderer )

overridevirtual

Renders a cut through a pointset by cutting through the n-cells, producing (n-1)-cells.

Parameters

renderer the render to render in.

Implements mitk::GLMapper.

Member Data Documentation

◆ m_Color

mitk::ColorProperty::Pointer mitk::UnstructuredGridMapper2D::m_Color

protected

Definition at line 99 of file mitkUnstructuredGridMapper2D.h.

◆ m_LineWidth

mitk::IntProperty::Pointer mitk::UnstructuredGridMapper2D::m_LineWidth

protected

Definition at line 100 of file mitkUnstructuredGridMapper2D.h.

◆ m_LSH

LocalStorageHandler<BaseLocalStorage> mitk::UnstructuredGridMapper2D::m_LSH

Definition at line 58 of file mitkUnstructuredGridMapper2D.h.

◆ m_Outline

mitk::BoolProperty::Pointer mitk::UnstructuredGridMapper2D::m_Outline

protected

Definition at line 101 of file mitkUnstructuredGridMapper2D.h.

◆ m_Plane

vtkPlane* mitk::UnstructuredGridMapper2D::m_Plane

protected

Definition at line 93 of file mitkUnstructuredGridMapper2D.h.

◆ m_ScalarMode

mitk::VtkScalarModeProperty::Pointer mitk::UnstructuredGridMapper2D::m_ScalarMode

protected

Definition at line 103 of file mitkUnstructuredGridMapper2D.h.

◆ m_ScalarsToColors

vtkScalarsToColors* mitk::UnstructuredGridMapper2D::m_ScalarsToColors

protected

Definition at line 96 of file mitkUnstructuredGridMapper2D.h.

◆ m_ScalarsToOpacity

vtkPiecewiseFunction* mitk::UnstructuredGridMapper2D::m_ScalarsToOpacity

protected

Definition at line 97 of file mitkUnstructuredGridMapper2D.h.

◆ m_ScalarVisibility

mitk::BoolProperty::Pointer mitk::UnstructuredGridMapper2D::m_ScalarVisibility

protected

Definition at line 102 of file mitkUnstructuredGridMapper2D.h.

◆ m_Slicer

vtkPointSetSlicer* mitk::UnstructuredGridMapper2D::m_Slicer

protected

Definition at line 94 of file mitkUnstructuredGridMapper2D.h.

◆ m_VtkPointSet

vtkPointSet* mitk::UnstructuredGridMapper2D::m_VtkPointSet

protected

Definition at line 95 of file mitkUnstructuredGridMapper2D.h.

The documentation for this class was generated from the following file:

mitkUnstructuredGridMapper2D.h
