mitk::SegGroupModifyOperation Class Reference

An Operation for applying an edited slice to the a group of a MultiLabelSegmentation. More...

#include <mitkSegGroupModifyOperation.h>

Inheritance diagram for mitk::SegGroupModifyOperation:

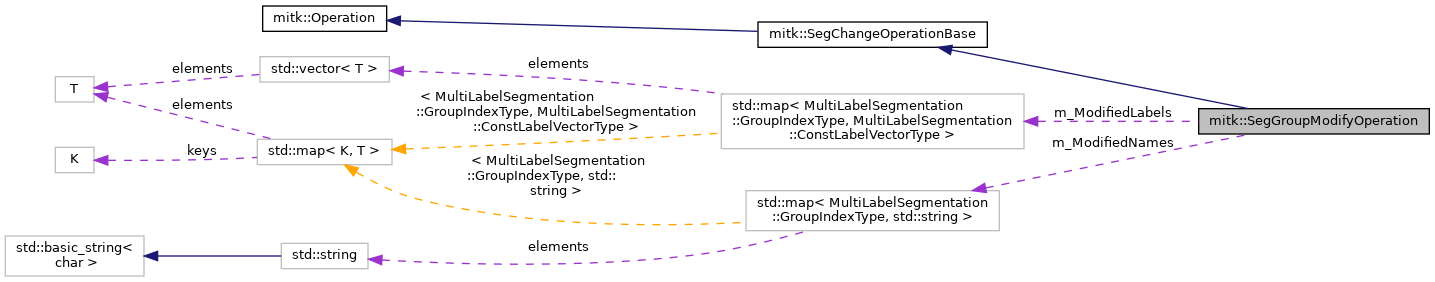

Collaboration diagram for mitk::SegGroupModifyOperation:

Public Types
using	ModifyTSImageMapType = std::map< TimeStepType, Image::ConstPointer >
using	ModifyGroupImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, ModifyTSImageMapType >
using	ModifyLabelsMapType = std::map< MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType >
using	GroupIndexVectorType = std::vector< MultiLabelSegmentation::GroupIndexType >
using	TimeStepVectorType = std::vector< TimeStepType >
using	ModifyGroupNameMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::string >
Public Types inherited from mitk::Operation
typedef Operation	Self
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
	mitkClassMacro (SegGroupModifyOperation, SegChangeOperationBase)
	SegGroupModifyOperation (MultiLabelSegmentation *segmentation, const ModifyGroupImageMapType &modifiedGroupImages, const ModifyLabelsMapType &modifiedLabels, const ModifyGroupNameMapType &modifiedNames)
	~SegGroupModifyOperation () override=default
GroupIndexVectorType	GetImageGroupIDs () const
TimeStepVectorType	GetImageTimeSteps (MultiLabelSegmentation::GroupIndexType groupID) const
GroupIndexVectorType	GetLabelGroupIDs () const
GroupIndexVectorType	GetNameGroupIDs () const
Image::Pointer	GetModifiedGroupImage (MultiLabelSegmentation::GroupIndexType groupID, TimeStepType timeStep) const
	Get the modified group image for a certain group and time step that is applied in the operation. More...
MultiLabelSegmentation::ConstLabelVectorType	GetModifiedLabels (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the modified group image for a certain group and time step that is applied in the operation. More...
std::string	GetModifiedName (MultiLabelSegmentation::GroupIndexType groupID) const
	SegGroupModifyOperation (const SegGroupModifyOperation &)=delete
SegGroupModifyOperation &	operator= (const SegGroupModifyOperation &)=delete
Public Member Functions inherited from mitk::SegChangeOperationBase
	mitkClassMacro (SegChangeOperationBase, Operation)
	~SegChangeOperationBase () override=default
bool	IsValid () const override
	Check if it is a valid operation. More...
mitk::MultiLabelSegmentation::Pointer	GetSegmentation ()
const mitk::MultiLabelSegmentation::ConstPointer	GetSegmentation () const
Public Member Functions inherited from mitk::Operation
virtual std::vector< std::string >	GetClassHierarchy () const
	itkTypeMacroNoParent (Operation) virtual bool IsValid() const
virtual	~Operation ()=default
OperationType	GetOperationType ()

Static Public Member Functions
static SegGroupModifyOperation *	CreatFromSegmentation (MultiLabelSegmentation *segmentation, const std::set< MultiLabelSegmentation::GroupIndexType > &relevantGroupIDs, bool coverAllTimeSteps, TimeStepType timeStep=0, bool noLabels=false, bool noGroupImages=false, bool noNames=false)
Static Public Member Functions inherited from mitk::Operation
static const char *	GetStaticNameOfClass ()

Protected Types
using	ModifyCompressedImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::map< TimeStepType, std::unique_ptr< CompressedImageContainer > >>

Protected Attributes
ModifyCompressedImageMapType	m_ModifiedImages
ModifyLabelsMapType	m_ModifiedLabels
ModifyGroupNameMapType	m_ModifiedNames
Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType

Additional Inherited Members
Protected Member Functions inherited from mitk::SegChangeOperationBase
	SegChangeOperationBase (mitk::MultiLabelSegmentation *segmentation, OperationType operationType)
	SegChangeOperationBase (SegChangeOperationBase &&)=default
SegChangeOperationBase &	operator= (const SegChangeOperationBase &)=default
SegChangeOperationBase &	operator= (SegChangeOperationBase &&)=default
Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Operation (const Operation &)=default
	Operation (Operation &&)=default
Operation &	operator= (const Operation &)=default
Operation &	operator= (Operation &&)=default

Detailed Description

An Operation for applying an edited slice to the a group of a MultiLabelSegmentation.

See also

SegChangeOperationApplier This Operation can be used to realize undo-redo functionality for e.g. segmentation purposes.

Definition at line 28 of file mitkSegGroupModifyOperation.h.

Member Typedef Documentation

GroupIndexVectorType

using mitk::SegGroupModifyOperation::GroupIndexVectorType = std::vector<MultiLabelSegmentation::GroupIndexType>

Definition at line 36 of file mitkSegGroupModifyOperation.h.

ModifyCompressedImageMapType

using mitk::SegGroupModifyOperation::ModifyCompressedImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::map<TimeStepType, std::unique_ptr<CompressedImageContainer> >>

protected

Definition at line 69 of file mitkSegGroupModifyOperation.h.

ModifyGroupImageMapType

using mitk::SegGroupModifyOperation::ModifyGroupImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, ModifyTSImageMapType >

Definition at line 34 of file mitkSegGroupModifyOperation.h.

ModifyGroupNameMapType

using mitk::SegGroupModifyOperation::ModifyGroupNameMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::string >

Definition at line 38 of file mitkSegGroupModifyOperation.h.

ModifyLabelsMapType

using mitk::SegGroupModifyOperation::ModifyLabelsMapType = std::map<MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType>

Definition at line 35 of file mitkSegGroupModifyOperation.h.

ModifyTSImageMapType

using mitk::SegGroupModifyOperation::ModifyTSImageMapType = std::map<TimeStepType, Image::ConstPointer>

Definition at line 33 of file mitkSegGroupModifyOperation.h.

TimeStepVectorType

using mitk::SegGroupModifyOperation::TimeStepVectorType = std::vector<TimeStepType>

Definition at line 37 of file mitkSegGroupModifyOperation.h.

Constructor & Destructor Documentation

SegGroupModifyOperation() [1/2]

mitk::SegGroupModifyOperation::SegGroupModifyOperation	(	MultiLabelSegmentation *	segmentation,
		const ModifyGroupImageMapType &	modifiedGroupImages,
		const ModifyLabelsMapType &	modifiedLabels,
		const ModifyGroupNameMapType &	modifiedNames
	)

~SegGroupModifyOperation()

mitk::SegGroupModifyOperation::~SegGroupModifyOperation ( )

overridedefault

SegGroupModifyOperation() [2/2]

mitk::SegGroupModifyOperation::SegGroupModifyOperation ( const SegGroupModifyOperation &  )

delete

Member Function Documentation

CreatFromSegmentation()

static SegGroupModifyOperation* mitk::SegGroupModifyOperation::CreatFromSegmentation ( MultiLabelSegmentation *  segmentation, const std::set< MultiLabelSegmentation::GroupIndexType > &  relevantGroupIDs, bool  coverAllTimeSteps, TimeStepType  timeStep = 0, bool  noLabels = false, bool  noGroupImages = false, bool  noNames = false  )

static

GetImageGroupIDs()

GroupIndexVectorType mitk::SegGroupModifyOperation::GetImageGroupIDs

(

)

const

GetImageTimeSteps()

TimeStepVectorType mitk::SegGroupModifyOperation::GetImageTimeSteps

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

GetLabelGroupIDs()

GroupIndexVectorType mitk::SegGroupModifyOperation::GetLabelGroupIDs

(

)

const

GetModifiedGroupImage()

Image::Pointer mitk::SegGroupModifyOperation::GetModifiedGroupImage	(	MultiLabelSegmentation::GroupIndexType	groupID,
		TimeStepType	timeStep
	)		const

Get the modified group image for a certain group and time step that is applied in the operation.

GetModifiedLabels()

MultiLabelSegmentation::ConstLabelVectorType mitk::SegGroupModifyOperation::GetModifiedLabels

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

Get the modified group image for a certain group and time step that is applied in the operation.

GetModifiedName()

std::string mitk::SegGroupModifyOperation::GetModifiedName

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

GetNameGroupIDs()

GroupIndexVectorType mitk::SegGroupModifyOperation::GetNameGroupIDs

(

)

const

mitkClassMacro()

mitk::SegGroupModifyOperation::mitkClassMacro	(	SegGroupModifyOperation	,
		SegChangeOperationBase
	)

operator=()

SegGroupModifyOperation& mitk::SegGroupModifyOperation::operator= ( const SegGroupModifyOperation &  )

delete

Member Data Documentation

m_ModifiedImages

ModifyCompressedImageMapType mitk::SegGroupModifyOperation::m_ModifiedImages

protected

Definition at line 70 of file mitkSegGroupModifyOperation.h.

m_ModifiedLabels

ModifyLabelsMapType mitk::SegGroupModifyOperation::m_ModifiedLabels

protected

Definition at line 71 of file mitkSegGroupModifyOperation.h.

m_ModifiedNames

ModifyGroupNameMapType mitk::SegGroupModifyOperation::m_ModifiedNames

protected

Definition at line 72 of file mitkSegGroupModifyOperation.h.

---

The documentation for this class was generated from the following file:

• mitkSegGroupModifyOperation.h
