mitk::SegGroupInsertOperation Class Reference

An Operation for applying an edited slice to the a group of a MultiLabelSegmentation. More...

#include <mitkSegGroupInsertOperation.h>

Inheritance diagram for mitk::SegGroupInsertOperation:

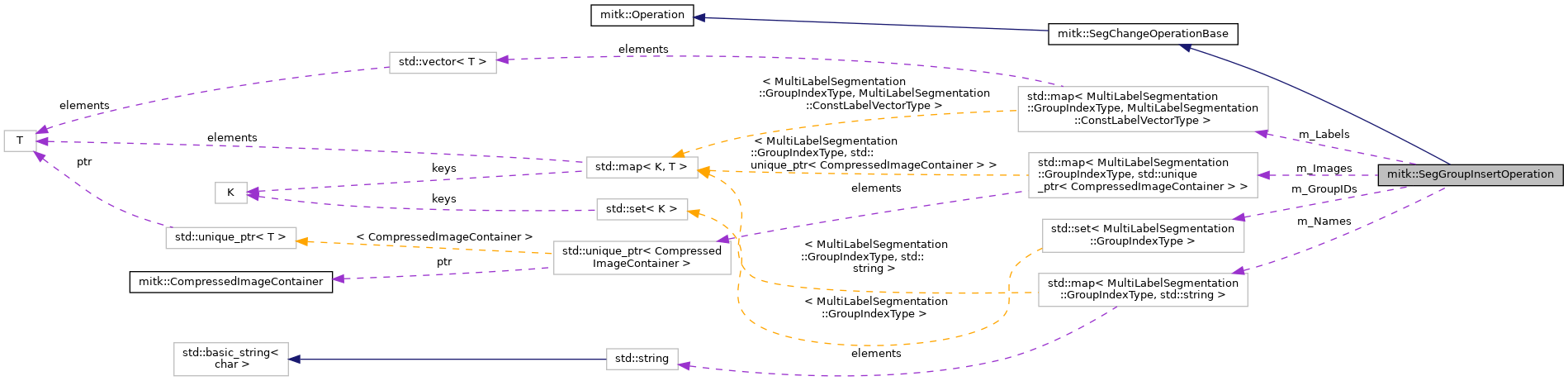

Collaboration diagram for mitk::SegGroupInsertOperation:

Public Types
using	ModifyGroupImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, Image::ConstPointer >
using	ModifyLabelsMapType = std::map< MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType >
using	GroupIndexSetType = std::set< MultiLabelSegmentation::GroupIndexType >
using	ModifyGroupNameMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::string >
Public Types inherited from mitk::Operation
typedef Operation	Self
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer

Public Member Functions
	mitkClassMacro (SegGroupInsertOperation, SegChangeOperationBase)
	SegGroupInsertOperation (MultiLabelSegmentation *segmentation, const GroupIndexSetType &groupIDs, const ModifyGroupImageMapType &groupImages={}, const ModifyLabelsMapType &groupLabels={})
	~SegGroupInsertOperation () override=default
GroupIndexSetType	GetGroupIDs () const
GroupIndexSetType	GetImageGroupIDs () const
GroupIndexSetType	GetLabelGroupIDs () const
Image::Pointer	GetGroupImage (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the modified group image for a certain group and time step that is applied in the operation. More...
MultiLabelSegmentation::ConstLabelVectorType	GetGroupLabels (MultiLabelSegmentation::GroupIndexType groupID) const
	Get the labels for a certain group that is applied in the operation. More...
std::string	GetGroupName (MultiLabelSegmentation::GroupIndexType groupID) const
	SegGroupInsertOperation (const SegGroupInsertOperation &)=delete
SegGroupInsertOperation &	operator= (const SegGroupInsertOperation &)=delete
Public Member Functions inherited from mitk::SegChangeOperationBase
	mitkClassMacro (SegChangeOperationBase, Operation)
	~SegChangeOperationBase () override=default
bool	IsValid () const override
	Check if it is a valid operation. More...
mitk::MultiLabelSegmentation::Pointer	GetSegmentation ()
const mitk::MultiLabelSegmentation::ConstPointer	GetSegmentation () const
Public Member Functions inherited from mitk::Operation
virtual std::vector< std::string >	GetClassHierarchy () const
	itkTypeMacroNoParent (Operation) virtual bool IsValid() const
virtual	~Operation ()=default
OperationType	GetOperationType ()

Static Public Member Functions
static SegGroupInsertOperation *	CreateFromSegmentation (MultiLabelSegmentation *segmentation, const GroupIndexSetType &relevantGroupIDs, bool noLabels=false, bool noGroupImages=false)
Static Public Member Functions inherited from mitk::Operation
static const char *	GetStaticNameOfClass ()

Protected Types
using	ModifyCompressedImageMapType = std::map< MultiLabelSegmentation::GroupIndexType, std::unique_ptr< CompressedImageContainer > >

Protected Attributes
GroupIndexSetType	m_GroupIDs
ModifyCompressedImageMapType	m_Images
ModifyLabelsMapType	m_Labels
ModifyGroupNameMapType	m_Names
Protected Attributes inherited from mitk::Operation
OperationType	m_OperationType

Additional Inherited Members
Protected Member Functions inherited from mitk::SegChangeOperationBase
	SegChangeOperationBase (mitk::MultiLabelSegmentation *segmentation, OperationType operationType)
	SegChangeOperationBase (SegChangeOperationBase &&)=default
SegChangeOperationBase &	operator= (const SegChangeOperationBase &)=default
SegChangeOperationBase &	operator= (SegChangeOperationBase &&)=default
Protected Member Functions inherited from mitk::Operation
	Operation (OperationType operationType)
	Operation (const Operation &)=default
	Operation (Operation &&)=default
Operation &	operator= (const Operation &)=default
Operation &	operator= (Operation &&)=default

Detailed Description

An Operation for applying an edited slice to the a group of a MultiLabelSegmentation.

See also

SegChangeOperationApplier This Operation can be used to realize undo-redo functionality for e.g. segmentation purposes.

Definition at line 28 of file mitkSegGroupInsertOperation.h.

Member Typedef Documentation

GroupIndexSetType

using mitk::SegGroupInsertOperation::GroupIndexSetType = std::set<MultiLabelSegmentation::GroupIndexType>

Definition at line 35 of file mitkSegGroupInsertOperation.h.

ModifyCompressedImageMapType

using mitk::SegGroupInsertOperation::ModifyCompressedImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::unique_ptr<CompressedImageContainer> >

protected

Definition at line 65 of file mitkSegGroupInsertOperation.h.

ModifyGroupImageMapType

using mitk::SegGroupInsertOperation::ModifyGroupImageMapType = std::map<MultiLabelSegmentation::GroupIndexType, Image::ConstPointer >

Definition at line 33 of file mitkSegGroupInsertOperation.h.

ModifyGroupNameMapType

using mitk::SegGroupInsertOperation::ModifyGroupNameMapType = std::map<MultiLabelSegmentation::GroupIndexType, std::string >

Definition at line 36 of file mitkSegGroupInsertOperation.h.

ModifyLabelsMapType

using mitk::SegGroupInsertOperation::ModifyLabelsMapType = std::map<MultiLabelSegmentation::GroupIndexType, MultiLabelSegmentation::ConstLabelVectorType>

Definition at line 34 of file mitkSegGroupInsertOperation.h.

Constructor & Destructor Documentation

SegGroupInsertOperation() [1/2]

mitk::SegGroupInsertOperation::SegGroupInsertOperation	(	MultiLabelSegmentation *	segmentation,
		const GroupIndexSetType &	groupIDs,
		const ModifyGroupImageMapType &	groupImages = {},
		const ModifyLabelsMapType &	groupLabels = {}
	)

~SegGroupInsertOperation()

mitk::SegGroupInsertOperation::~SegGroupInsertOperation ( )

overridedefault

SegGroupInsertOperation() [2/2]

mitk::SegGroupInsertOperation::SegGroupInsertOperation ( const SegGroupInsertOperation &  )

delete

Member Function Documentation

CreateFromSegmentation()

static SegGroupInsertOperation* mitk::SegGroupInsertOperation::CreateFromSegmentation ( MultiLabelSegmentation *  segmentation, const GroupIndexSetType &  relevantGroupIDs, bool  noLabels = false, bool  noGroupImages = false  )

static

GetGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetGroupIDs

(

)

const

GetGroupImage()

Image::Pointer mitk::SegGroupInsertOperation::GetGroupImage

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

Get the modified group image for a certain group and time step that is applied in the operation.

GetGroupLabels()

MultiLabelSegmentation::ConstLabelVectorType mitk::SegGroupInsertOperation::GetGroupLabels

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

Get the labels for a certain group that is applied in the operation.

GetGroupName()

std::string mitk::SegGroupInsertOperation::GetGroupName

(

MultiLabelSegmentation::GroupIndexType

groupID

)

const

GetImageGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetImageGroupIDs

(

)

const

GetLabelGroupIDs()

GroupIndexSetType mitk::SegGroupInsertOperation::GetLabelGroupIDs

(

)

const

mitkClassMacro()

mitk::SegGroupInsertOperation::mitkClassMacro	(	SegGroupInsertOperation	,
		SegChangeOperationBase
	)

operator=()

SegGroupInsertOperation& mitk::SegGroupInsertOperation::operator= ( const SegGroupInsertOperation &  )

delete

Member Data Documentation

m_GroupIDs

GroupIndexSetType mitk::SegGroupInsertOperation::m_GroupIDs

protected

Definition at line 66 of file mitkSegGroupInsertOperation.h.

m_Images

ModifyCompressedImageMapType mitk::SegGroupInsertOperation::m_Images

protected

Definition at line 67 of file mitkSegGroupInsertOperation.h.

m_Labels

ModifyLabelsMapType mitk::SegGroupInsertOperation::m_Labels

protected

Definition at line 68 of file mitkSegGroupInsertOperation.h.

m_Names

ModifyGroupNameMapType mitk::SegGroupInsertOperation::m_Names

protected

Definition at line 69 of file mitkSegGroupInsertOperation.h.

---

The documentation for this class was generated from the following file:

• mitkSegGroupInsertOperation.h
