Interaction with mitk::PlanarFigure objects via control-points. More...

#include <mitkPlanarFigureInteractor.h>

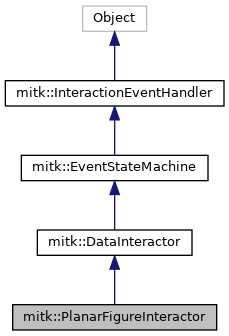

Inheritance diagram for mitk::PlanarFigureInteractor:

[legend]

Collaboration diagram for mitk::PlanarFigureInteractor:

[legend]

Public Member Functions
	mitkClassMacro (PlanarFigureInteractor, DataInteractor)

Pointer	Clone () const

void	SetPrecision (ScalarType precision)
	Sets the amount of precision. More...

void	SetMinimumPointDistance (ScalarType minimumDistance)
	Sets the minimal distance between two control points. More...

void	EnableContinuousPointsMode ()

Public Member Functions inherited from mitk::DataInteractor
virtual std::vector< std::string >	GetClassHierarchy () const override

virtual const char *	GetClassName () const

Pointer	Clone () const

DataNode *	GetDataNode () const

virtual void	SetDataNode (DataNode *dataNode)

int	GetLayer () const

ProcessEventMode	GetMode () const

Public Member Functions inherited from mitk::EventStateMachine
bool	LoadStateMachine (const std::string &filename, const us::Module *module=nullptr)
	Loads XML resource. More...

bool	HandleEvent (InteractionEvent event, DataNode dataNode)

void	EnableUndo (bool enable)
	Enables or disabled Undo. More...

void	EnableInteraction (bool enable)
	Enables/disables the state machine. In un-enabled state it won't react to any events. More...

Public Member Functions inherited from mitk::InteractionEventHandler
bool	SetEventConfig (const std::string &filename, const us::Module *module=nullptr)
	Loads a configuration from an XML resource. More...

bool	SetEventConfig (const EventConfig &config)
	Loads a configuration from an EventConfig object. More...

EventConfig	GetEventConfig () const
	Returns the current configuration. More...

bool	AddEventConfig (const std::string &filename, const us::Module *module=nullptr)
	This method extends the configuration. More...

bool	AddEventConfig (const EventConfig &config)
	This method extends the configuration. The configuration from the EventConfig object is loaded and only the ones conflicting are replaced by the new one. This way several configurations can be combined. More...

Static Public Member Functions
static Pointer	New ()

Static Public Member Functions inherited from mitk::DataInteractor
static const char *	GetStaticNameOfClass ()

static Pointer	New ()

Static Public Member Functions inherited from mitk::EventStateMachine
static const char *	GetStaticNameOfClass ()

Static Public Member Functions inherited from mitk::InteractionEventHandler
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	PlanarFigureInteractor ()

	~PlanarFigureInteractor () override

void	ConnectActionsAndFunctions () override
	Overwrite this function to connect actions from StateMachine description with functions. More...

bool	CheckFigurePlaced (const InteractionEvent *interactionEvent)

bool	CheckFigureHovering (const InteractionEvent *interactionEvent)

bool	CheckControlPointHovering (const InteractionEvent *interactionEvent)

bool	CheckSelection (const InteractionEvent *interactionEvent)

bool	CheckPointValidity (const InteractionEvent *interactionEvent)

bool	CheckFigureFinished (const InteractionEvent *interactionEvent)

bool	CheckResetOnPointSelect (const InteractionEvent *interactionEvent)

bool	CheckFigureOnRenderingGeometry (const InteractionEvent *interactionEvent)

bool	CheckMinimalFigureFinished (const InteractionEvent *interactionEvent)

bool	CheckFigureIsExtendable (const InteractionEvent *interactionEvent)

bool	CheckFigureIsDeletable (const InteractionEvent *interactionEvent)

bool	CheckFigureIsEditable (const InteractionEvent *interactionEvent)

bool	CheckContinuousPointsMode (const InteractionEvent *interactionEvent)

void	FinalizeFigure (StateMachineAction , InteractionEvent interactionEvent)

void	MoveCurrentPoint (StateMachineAction , InteractionEvent interactionEvent)

void	DeselectPoint (StateMachineAction , InteractionEvent interactionEvent)

void	AddPoint (StateMachineAction , InteractionEvent interactionEvent)

void	AddInitialPoint (StateMachineAction , InteractionEvent interactionEvent)

void	StartHovering (StateMachineAction , InteractionEvent interactionEvent)

void	EndHovering (StateMachineAction , InteractionEvent interactionEvent)

void	DeleteFigure (StateMachineAction , InteractionEvent interactionEvent)

void	PerformPointResetOnSelect (StateMachineAction , InteractionEvent interactionEvent)

void	SetPreviewPointPosition (StateMachineAction , InteractionEvent interactionEvent)

void	HidePreviewPoint (StateMachineAction , InteractionEvent interactionEvent)

void	HideControlPoints (StateMachineAction , InteractionEvent interactionEvent)

void	RemoveSelectedPoint (StateMachineAction , InteractionEvent interactionEvent)

void	RequestContextMenu (StateMachineAction , InteractionEvent interactionEvent)

void	SelectFigure (StateMachineAction , InteractionEvent interactionEvent)

void	SelectPoint (StateMachineAction , InteractionEvent interactionEvent)

void	EndInteraction (StateMachineAction , InteractionEvent interactionEvent)

bool	FilterEvents (InteractionEvent interactionEvent, DataNode ) override

bool	IsMousePositionAcceptableAsNewControlPoint (const mitk::InteractionPositionEvent positionEvent, const PlanarFigure )
	Used when clicking to determine if a point is too close to the previous point. More...

bool	TransformPositionEventToPoint2D (const InteractionPositionEvent positionEvent, const PlaneGeometry planarFigureGeometry, Point2D &point2D)

bool	TransformObjectToDisplay (const mitk::Point2D &point2D, mitk::Point2D &displayPoint, const mitk::PlaneGeometry objectGeometry, const mitk::PlaneGeometry rendererGeometry, const mitk::BaseRenderer *renderer) const

bool	IsPointNearLine (const mitk::Point2D &point, const mitk::Point2D &startPoint, const mitk::Point2D &endPoint, mitk::Point2D &projectedPoint) const
	Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise. More...

int	IsPositionOverFigure (const InteractionPositionEvent positionEvent, PlanarFigure planarFigure, const PlaneGeometry planarFigureGeometry, const PlaneGeometry rendererGeometry, Point2D &pointProjectedOntoLine) const
	Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise. More...

int	IsPositionInsideMarker (const InteractionPositionEvent positionEvent, const PlanarFigure planarFigure, const PlaneGeometry planarFigureGeometry, const PlaneGeometry rendererGeometry, const BaseRenderer *renderer) const
	Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker. More...

void	LogPrintPlanarFigureQuantities (const PlanarFigure *planarFigure)

void	ConfigurationChanged () override

Protected Member Functions inherited from mitk::DataInteractor
	DataInteractor ()

	~DataInteractor () override

virtual void	DataNodeChanged ()
	Is called when a DataNode is initially set or changed To be implemented by sub-classes for initialization code which require a DataNode. More...

virtual void	NotifyStart ()
	Sends StartInteraction event via the mitk::DataNode. More...

virtual void	NotifyResultReady ()
	NotifyResultReady Sends ResultReady event via the mitk::DataNode. More...

Protected Member Functions inherited from mitk::EventStateMachine
	EventStateMachine ()

	~EventStateMachine () override

void	AddActionFunction (const std::string &action, TActionFunctor *functor)

void	AddActionFunction (const std::string &action, const ActionFunctionDelegate &delegate)

void	AddConditionFunction (const std::string &condition, const ConditionFunctionDelegate &delegate)

StateMachineState *	GetCurrentState () const

void	ResetToStartState ()
	ResetToStartState Reset state machine to it initial starting state. More...

virtual bool	CheckCondition (const StateMachineCondition &condition, const InteractionEvent *interactionEvent)

virtual void	ExecuteAction (StateMachineAction action, InteractionEvent interactionEvent)

void	SetMouseCursor (const char *xpm[], int hotspotX, int hotspotY)
	Sets the specified mouse cursor. More...

void	ResetMouseCursor ()
	Resets the mouse cursor to its original state. More...

StateMachineTransition *	GetExecutableTransition (InteractionEvent *event)
	Returns the executable transition for the given event. More...

Protected Member Functions inherited from mitk::InteractionEventHandler
	InteractionEventHandler ()

	~InteractionEventHandler () override

PropertyList::Pointer	GetAttributes () const

std::string	MapToEventVariant (InteractionEvent *interactionEvent)

Additional Inherited Members
Public Types inherited from mitk::DataInteractor
typedef DataInteractor	Self

typedef EventStateMachine	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Public Types inherited from mitk::EventStateMachine
typedef EventStateMachine	Self

typedef InteractionEventHandler	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

typedef std::map< std::string, TActionFunctor * >	ActionFunctionsMapType

typedef itk::SmartPointer< StateMachineState >	StateMachineStateType

Public Types inherited from mitk::InteractionEventHandler
typedef InteractionEventHandler	Self

typedef itk::Object	Superclass

typedef itk::SmartPointer< Self >	Pointer

typedef itk::SmartPointer< const Self >	ConstPointer

Static Public Attributes inherited from mitk::DataInteractor
static const std::string	IntDeactivateMe

static const std::string	IntLeaveWidget

static const std::string	IntEnterWidget

Protected Types inherited from mitk::EventStateMachine
typedef MessageAbstractDelegate2< StateMachineAction , InteractionEvent , void >	ActionFunctionDelegate

typedef MessageAbstractDelegate1< const InteractionEvent *, bool >	ConditionFunctionDelegate

Protected Attributes inherited from mitk::EventStateMachine
bool	m_IsActive

UndoController *	m_UndoController

bool	m_UndoEnabled

Detailed Description

Interaction with mitk::PlanarFigure objects via control-points.

Definition at line 57 of file mitkPlanarFigureInteractor.h.

Constructor & Destructor Documentation

◆ PlanarFigureInteractor()

mitk::PlanarFigureInteractor::PlanarFigureInteractor ( )

protected

◆ ~PlanarFigureInteractor()

mitk::PlanarFigureInteractor::~PlanarFigureInteractor ( )

overrideprotected

Member Function Documentation

◆ AddInitialPoint()

void mitk::PlanarFigureInteractor::AddInitialPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ AddPoint()

void mitk::PlanarFigureInteractor::AddPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ CheckContinuousPointsMode()

bool mitk::PlanarFigureInteractor::CheckContinuousPointsMode ( const InteractionEvent * interactionEvent )

protected

◆ CheckControlPointHovering()

bool mitk::PlanarFigureInteractor::CheckControlPointHovering ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureFinished()

bool mitk::PlanarFigureInteractor::CheckFigureFinished ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureHovering()

bool mitk::PlanarFigureInteractor::CheckFigureHovering ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureIsDeletable()

bool mitk::PlanarFigureInteractor::CheckFigureIsDeletable ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureIsEditable()

bool mitk::PlanarFigureInteractor::CheckFigureIsEditable ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureIsExtendable()

bool mitk::PlanarFigureInteractor::CheckFigureIsExtendable ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigureOnRenderingGeometry()

bool mitk::PlanarFigureInteractor::CheckFigureOnRenderingGeometry ( const InteractionEvent * interactionEvent )

protected

◆ CheckFigurePlaced()

bool mitk::PlanarFigureInteractor::CheckFigurePlaced ( const InteractionEvent * interactionEvent )

protected

◆ CheckMinimalFigureFinished()

bool mitk::PlanarFigureInteractor::CheckMinimalFigureFinished ( const InteractionEvent * interactionEvent )

protected

◆ CheckPointValidity()

bool mitk::PlanarFigureInteractor::CheckPointValidity ( const InteractionEvent * interactionEvent )

protected

◆ CheckResetOnPointSelect()

bool mitk::PlanarFigureInteractor::CheckResetOnPointSelect ( const InteractionEvent * interactionEvent )

protected

◆ CheckSelection()

bool mitk::PlanarFigureInteractor::CheckSelection ( const InteractionEvent * interactionEvent )

protected

◆ Clone()

Pointer mitk::PlanarFigureInteractor::Clone ( ) const

◆ ConfigurationChanged()

void mitk::PlanarFigureInteractor::ConfigurationChanged ( )

overrideprotectedvirtual

Is called whenever a new config object is set. Overwrite this method e.g. to initialize EventHandler with parameters in configuration file.

Reimplemented from mitk::InteractionEventHandler.

◆ ConnectActionsAndFunctions()

void mitk::PlanarFigureInteractor::ConnectActionsAndFunctions ( )

overrideprotectedvirtual

Overwrite this function to connect actions from StateMachine description with functions.

Following example shows how to connect the 'addpoint' action from the StateMachine XML description using the CONNECT_FUNCTION macro with the AddPoint() function in the TestInteractor.

  void mitk::TestInteractor::ConnectActionsAndFunctions()
{
CONNECT_FUNCTION("addpoint", AddPoint);
}

Reimplemented from mitk::DataInteractor.

◆ DeleteFigure()

void mitk::PlanarFigureInteractor::DeleteFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ DeselectPoint()

void mitk::PlanarFigureInteractor::DeselectPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ EnableContinuousPointsMode()

void mitk::PlanarFigureInteractor::EnableContinuousPointsMode ( )

◆ EndHovering()

void mitk::PlanarFigureInteractor::EndHovering	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ EndInteraction()

void mitk::PlanarFigureInteractor::EndInteraction	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ FilterEvents()

bool mitk::PlanarFigureInteractor::FilterEvents	(	InteractionEvent *	interactionEvent,
		DataNode *	dataNode
	)

overrideprotectedvirtual

Implements filter scheme for events. Standard implementation accepts events from 2d and 3d windows, and rejects events if DataNode is not visible.

Returns: true if event is accepted, else false

Overwrite this function to adapt for your own needs, for example to filter out events from 3d windows like this:

bool mitk::EventStateMachine::FilterEvents(InteractionEvent* interactionEvent, DataNode*dataNode)
{
  return interactionEvent->GetSender()->GetMapperID() == BaseRenderer::Standard2D; // only 2D mappers
}

or to enforce that the interactor only reacts when the corresponding DataNode is selected in the DataManager view..

Reimplemented from mitk::EventStateMachine.

◆ FinalizeFigure()

void mitk::PlanarFigureInteractor::FinalizeFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ HideControlPoints()

void mitk::PlanarFigureInteractor::HideControlPoints	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ HidePreviewPoint()

void mitk::PlanarFigureInteractor::HidePreviewPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ IsMousePositionAcceptableAsNewControlPoint()

bool mitk::PlanarFigureInteractor::IsMousePositionAcceptableAsNewControlPoint	(	const mitk::InteractionPositionEvent *	positionEvent,
		const PlanarFigure *
	)

protected

Used when clicking to determine if a point is too close to the previous point.

◆ IsPointNearLine()

bool mitk::PlanarFigureInteractor::IsPointNearLine	(	const mitk::Point2D &	point,
		const mitk::Point2D &	startPoint,
		const mitk::Point2D &	endPoint,
		mitk::Point2D &	projectedPoint
	)		const

protected

Returns true if the first specified point is in proximity of the line defined the other two point; false otherwise.

Proximity is defined as the rectangle around the line with pre-defined distance from the line.

◆ IsPositionInsideMarker()

int mitk::PlanarFigureInteractor::IsPositionInsideMarker	(	const InteractionPositionEvent *	positionEvent,
		const PlanarFigure *	planarFigure,
		const PlaneGeometry *	planarFigureGeometry,
		const PlaneGeometry *	rendererGeometry,
		const BaseRenderer *	renderer
	)		const

protected

Returns the index of the marker (control point) over which the point contained in the passed event (in display coordinates) currently is; -1 if the point is not over a marker.

◆ IsPositionOverFigure()

int mitk::PlanarFigureInteractor::IsPositionOverFigure	(	const InteractionPositionEvent *	positionEvent,
		PlanarFigure *	planarFigure,
		const PlaneGeometry *	planarFigureGeometry,
		const PlaneGeometry *	rendererGeometry,
		Point2D &	pointProjectedOntoLine
	)		const

protected

Returns true if the point contained in the passed event (in display coordinates) is over the planar figure (with a pre-defined tolerance range); false otherwise.

◆ LogPrintPlanarFigureQuantities()

void mitk::PlanarFigureInteractor::LogPrintPlanarFigureQuantities ( const PlanarFigure * planarFigure )

protected

◆ mitkClassMacro()

mitk::PlanarFigureInteractor::mitkClassMacro	(	PlanarFigureInteractor	,
		DataInteractor
	)

◆ MoveCurrentPoint()

void mitk::PlanarFigureInteractor::MoveCurrentPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ New()

static Pointer mitk::PlanarFigureInteractor::New ( )

static

◆ PerformPointResetOnSelect()

void mitk::PlanarFigureInteractor::PerformPointResetOnSelect	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ RemoveSelectedPoint()

void mitk::PlanarFigureInteractor::RemoveSelectedPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ RequestContextMenu()

void mitk::PlanarFigureInteractor::RequestContextMenu	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ SelectFigure()

void mitk::PlanarFigureInteractor::SelectFigure	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ SelectPoint()

void mitk::PlanarFigureInteractor::SelectPoint	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ SetMinimumPointDistance()

void mitk::PlanarFigureInteractor::SetMinimumPointDistance ( ScalarType minimumDistance )

Sets the minimal distance between two control points.

◆ SetPrecision()

void mitk::PlanarFigureInteractor::SetPrecision ( ScalarType precision )

Sets the amount of precision.

◆ SetPreviewPointPosition()

void mitk::PlanarFigureInteractor::SetPreviewPointPosition	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ StartHovering()

void mitk::PlanarFigureInteractor::StartHovering	(	StateMachineAction *	,
		InteractionEvent *	interactionEvent
	)

protected

◆ TransformObjectToDisplay()

bool mitk::PlanarFigureInteractor::TransformObjectToDisplay	(	const mitk::Point2D &	point2D,
		mitk::Point2D &	displayPoint,
		const mitk::PlaneGeometry *	objectGeometry,
		const mitk::PlaneGeometry *	rendererGeometry,
		const mitk::BaseRenderer *	renderer
	)		const

protected

◆ TransformPositionEventToPoint2D()

bool mitk::PlanarFigureInteractor::TransformPositionEventToPoint2D	(	const InteractionPositionEvent *	positionEvent,
		const PlaneGeometry *	planarFigureGeometry,
		Point2D &	point2D
	)

protected

The documentation for this class was generated from the following file:

mitkPlanarFigureInteractor.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PlanarFigureInteractor()

◆ ~PlanarFigureInteractor()

Member Function Documentation

◆ AddInitialPoint()

◆ AddPoint()

◆ CheckContinuousPointsMode()

◆ CheckControlPointHovering()

◆ CheckFigureFinished()

◆ CheckFigureHovering()

◆ CheckFigureIsDeletable()

◆ CheckFigureIsEditable()

◆ CheckFigureIsExtendable()

◆ CheckFigureOnRenderingGeometry()

◆ CheckFigurePlaced()

◆ CheckMinimalFigureFinished()

◆ CheckPointValidity()

◆ CheckResetOnPointSelect()

◆ CheckSelection()

◆ Clone()

◆ ConfigurationChanged()

◆ ConnectActionsAndFunctions()

◆ DeleteFigure()

◆ DeselectPoint()

◆ EnableContinuousPointsMode()

◆ EndHovering()

◆ EndInteraction()

◆ FilterEvents()

◆ FinalizeFigure()

◆ HideControlPoints()

◆ HidePreviewPoint()

◆ IsMousePositionAcceptableAsNewControlPoint()

◆ IsPointNearLine()

◆ IsPositionInsideMarker()

◆ IsPositionOverFigure()

◆ LogPrintPlanarFigureQuantities()

◆ mitkClassMacro()

◆ MoveCurrentPoint()

◆ New()

◆ PerformPointResetOnSelect()

◆ RemoveSelectedPoint()

◆ RequestContextMenu()

◆ SelectFigure()

◆ SelectPoint()

◆ SetMinimumPointDistance()

◆ SetPrecision()

◆ SetPreviewPointPosition()

◆ StartHovering()

◆ TransformObjectToDisplay()

◆ TransformPositionEventToPoint2D()
