mitk::ParameterFitImageGeneratorBase Class Referenceabstract

#include <mitkParameterFitImageGeneratorBase.h>

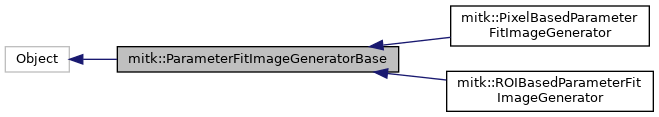

Inheritance diagram for mitk::ParameterFitImageGeneratorBase:
Inheritance graph
[legend]
Collaboration diagram for mitk::ParameterFitImageGeneratorBase:
Collaboration graph
[legend]

Public Types

using ParameterImagePixelType = ScalarType

using ModelBaseType = ModelBase

using ParameterNameType = ModelBaseType::ParameterNameType

using ParameterNamesType = ModelBaseType::ParameterNamesType

using ParameterImageMapType = std::map< ParameterNameType, Image::Pointer >


Public Member Functions

 mitkClassMacroItkParent (ParameterFitImageGeneratorBase, ::itk::Object)

virtual double GetProgress () const =0

void Generate ()

ParameterImageMapType GetParameterImages ()

ParameterImageMapType GetDerivedParameterImages ()

ParameterImageMapType GetCriterionImages ()

ParameterImageMapType GetEvaluationParameterImages ()

virtual ParameterNamesType GetParameterNames () const =0

virtual ParameterNamesType GetDerivedParameterNames () const =0

virtual ParameterNamesType GetCriterionNames () const =0

virtual ParameterNamesType GetEvaluationParameterNames () const =0


Protected Member Functions

 ParameterFitImageGeneratorBase ()

 ~ParameterFitImageGeneratorBase () override

virtual bool HasOutdatedResult () const

virtual void CheckValidInputs () const

virtual void DoFitAndGetResults (ParameterImageMapType &parameterImages, ParameterImageMapType &derivedParameterImages, ParameterImageMapType &criterionImages, ParameterImageMapType &evaluationParameterImages)=0


Protected Attributes

itk::TimeStamp m_GenerationTimeStamp


Detailed Description

Base class for generators for parameter fits of a given model. The generators creates 4 types of images:

  • parameter images: The images that encode the results of each fitted parameter
  • derived parameter images: Images that encode the results of derived parameters defined by the model
  • criterion images: Images that encode the criterion value of the fitting strategy for the fitted parameters
  • evaluation parameter images: Images that encode measures of additional evaluation cost functions defined by the user. (These were not part of the fitting strategy)

Definition at line 34 of file mitkParameterFitImageGeneratorBase.h.

Member Typedef Documentation

◆ ModelBaseType

using mitk::ParameterFitImageGeneratorBase::ModelBaseType = ModelBase

Definition at line 41 of file mitkParameterFitImageGeneratorBase.h.

◆ ParameterImageMapType

using mitk::ParameterFitImageGeneratorBase::ParameterImageMapType = std::map<ParameterNameType,Image::Pointer>

Definition at line 45 of file mitkParameterFitImageGeneratorBase.h.

◆ ParameterImagePixelType

using mitk::ParameterFitImageGeneratorBase::ParameterImagePixelType = ScalarType

Definition at line 39 of file mitkParameterFitImageGeneratorBase.h.

◆ ParameterNamesType

using mitk::ParameterFitImageGeneratorBase::ParameterNamesType = ModelBaseType::ParameterNamesType

Definition at line 43 of file mitkParameterFitImageGeneratorBase.h.

◆ ParameterNameType

using mitk::ParameterFitImageGeneratorBase::ParameterNameType = ModelBaseType::ParameterNameType

Definition at line 42 of file mitkParameterFitImageGeneratorBase.h.

Constructor & Destructor Documentation

◆ ParameterFitImageGeneratorBase()

mitk::ParameterFitImageGeneratorBase::ParameterFitImageGeneratorBase ( )
inlineprotected

Definition at line 83 of file mitkParameterFitImageGeneratorBase.h.

◆ ~ParameterFitImageGeneratorBase()

mitk::ParameterFitImageGeneratorBase::~ParameterFitImageGeneratorBase ( )
inlineoverrideprotected

Definition at line 84 of file mitkParameterFitImageGeneratorBase.h.

Member Function Documentation

◆ CheckValidInputs()

virtual void mitk::ParameterFitImageGeneratorBase::CheckValidInputs ( ) const
protectedvirtual

Check if the fit can be generated and all needed inputs are valid. Throw an exception for a non valid or missing input.

Reimplemented in mitk::PixelBasedParameterFitImageGenerator, and mitk::ROIBasedParameterFitImageGenerator.

◆ DoFitAndGetResults()

virtual void mitk::ParameterFitImageGeneratorBase::DoFitAndGetResults ( ParameterImageMapType &  parameterImages,
ParameterImageMapType &  derivedParameterImages,
ParameterImageMapType &  criterionImages,
ParameterImageMapType &  evaluationParameterImages
)
protectedpure virtual

Implemented in mitk::PixelBasedParameterFitImageGenerator, and mitk::ROIBasedParameterFitImageGenerator.

◆ Generate()

void mitk::ParameterFitImageGeneratorBase::Generate ( )

Commences the model fit over the dynamic image data. Stores the fitted parameter in parameter images. After this method call is finished the parameter images can be retrieved via GetParameterImages.

Precondition
Model must be set
DynamicImage must be set
Postcondition
Parameter image map contains an image for every parameter of the model referenced by the parameter name.

◆ GetCriterionImages()

ParameterImageMapType mitk::ParameterFitImageGeneratorBase::GetCriterionImages ( )

Returns the generated criterion images. Triggers Generate() if result is outdated.

◆ GetCriterionNames()

virtual ParameterNamesType mitk::ParameterFitImageGeneratorBase::GetCriterionNames ( ) const
pure virtual

Returns the names of the criteria, that will be generated. These are also the keys of the related image map.

Implemented in mitk::ROIBasedParameterFitImageGenerator, and mitk::PixelBasedParameterFitImageGenerator.

◆ GetDerivedParameterImages()

ParameterImageMapType mitk::ParameterFitImageGeneratorBase::GetDerivedParameterImages ( )

Returns the generated derived parameter images. Triggers Generate() if result is outdated.

◆ GetDerivedParameterNames()

virtual ParameterNamesType mitk::ParameterFitImageGeneratorBase::GetDerivedParameterNames ( ) const
pure virtual

Returns the names of the derived parameters, that will be generated. These are also the keys of the related image map.

Implemented in mitk::ROIBasedParameterFitImageGenerator, and mitk::PixelBasedParameterFitImageGenerator.

◆ GetEvaluationParameterImages()

ParameterImageMapType mitk::ParameterFitImageGeneratorBase::GetEvaluationParameterImages ( )

Returns the generated evaluation parameter images. Triggers Generate() if result is outdated.

◆ GetEvaluationParameterNames()

virtual ParameterNamesType mitk::ParameterFitImageGeneratorBase::GetEvaluationParameterNames ( ) const
pure virtual

Returns the names of the evaluation parameters, that will be generated. These are also the keys of the related image map.

Implemented in mitk::ROIBasedParameterFitImageGenerator, and mitk::PixelBasedParameterFitImageGenerator.

◆ GetParameterImages()

ParameterImageMapType mitk::ParameterFitImageGeneratorBase::GetParameterImages ( )

Returns the fitted/generated parameter images. Triggers Generate() if result is outdated.

◆ GetParameterNames()

virtual ParameterNamesType mitk::ParameterFitImageGeneratorBase::GetParameterNames ( ) const
pure virtual

Returns the names of the fitted/generated parameters, that will be generated. These are also the keys of the related image map.

Implemented in mitk::ROIBasedParameterFitImageGenerator, and mitk::PixelBasedParameterFitImageGenerator.

◆ GetProgress()

virtual double mitk::ParameterFitImageGeneratorBase::GetProgress ( ) const
pure virtual

Returns the progress of the current fit. e.g. 0 : none; 0.5 = 50%; 1: complete

Implemented in mitk::ROIBasedParameterFitImageGenerator, and mitk::PixelBasedParameterFitImageGenerator.

◆ HasOutdatedResult()

virtual bool mitk::ParameterFitImageGeneratorBase::HasOutdatedResult ( ) const
protectedvirtual

Reimplemented in mitk::PixelBasedParameterFitImageGenerator, and mitk::ROIBasedParameterFitImageGenerator.

◆ mitkClassMacroItkParent()

mitk::ParameterFitImageGeneratorBase::mitkClassMacroItkParent ( ParameterFitImageGeneratorBase  ,
::itk::Object
)

Member Data Documentation

◆ m_GenerationTimeStamp

itk::TimeStamp mitk::ParameterFitImageGeneratorBase::m_GenerationTimeStamp
protected

Definition at line 92 of file mitkParameterFitImageGeneratorBase.h.

The documentation for this class was generated from the following file:
