mitk::ManualPlacementAnnotationRenderer Class Reference
The ManualPlacementAnnotationRenderer is used for the simple placement of mitk::Annotation Objects. More...
#include <mitkManualPlacementAnnotationRenderer.h>

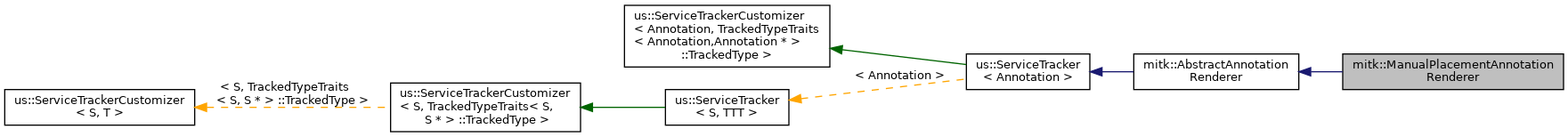

Inheritance diagram for mitk::ManualPlacementAnnotationRenderer:

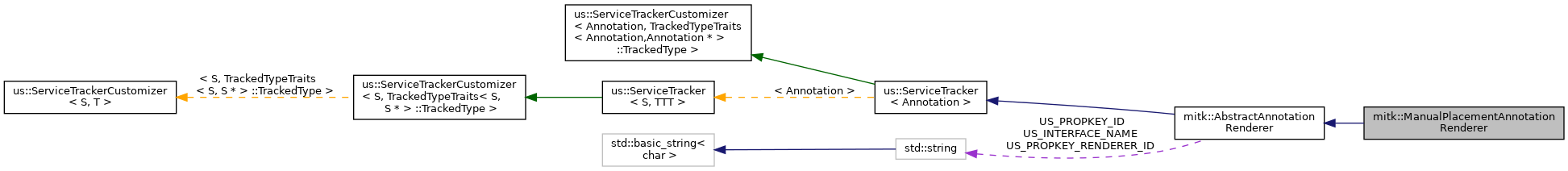

Collaboration diagram for mitk::ManualPlacementAnnotationRenderer:
Public Member Functions | |
| ~ManualPlacementAnnotationRenderer () override | |
| virtual destructor in order to derive from this class More... | |
 Public Member Functions inherited from mitk::AbstractAnnotationRenderer | |
| AbstractAnnotationRenderer (const std::string &rendererID, const std::string &arID) | |
| ~AbstractAnnotationRenderer () override | |
| virtual destructor in order to derive from this class More... | |
| const std::string | GetID () const |
| const std::string | GetRendererID () const |
| void | CurrentBaseRendererChanged () |
| virtual void | OnRenderWindowModified () |
| void | RemoveAllAnnotation () |
| void | Update () |
| Public Member Functions inherited from us::ServiceTracker< Annotation > | |
| ~ServiceTracker () override | |
| ServiceTracker (ModuleContext *context, const ServiceReferenceType &reference, ServiceTrackerCustomizer< Annotation, T > *customizer=nullptr) | |
| ServiceTracker (ModuleContext *context, const std::string &clazz, ServiceTrackerCustomizer< Annotation, T > *customizer=0) | |
| ServiceTracker (ModuleContext *context, const LDAPFilter &filter, ServiceTrackerCustomizer< Annotation, T > *customizer=nullptr) | |
| ServiceTracker (ModuleContext *context, ServiceTrackerCustomizer< Annotation, T > *customizer=nullptr) | |
| virtual void | Open () |
| virtual void | Close () |
| virtual T | WaitForService (unsigned long timeoutMillis=0) |
| virtual std::vector< ServiceReferenceType > | GetServiceReferences () const |
| virtual ServiceReferenceType | GetServiceReference () const |
| virtual T | GetService (const ServiceReferenceType &reference) const |
| virtual T | GetService () const |
| virtual std::vector< T > | GetServices () const |
| virtual void | Remove (const ServiceReferenceType &reference) |
| virtual int | Size () const |
| virtual int | GetTrackingCount () const |
| virtual void | GetTracked (TrackingMap &tracked) const |
| virtual bool | IsEmpty () const |
Static Public Member Functions | |
| static ManualPlacementAnnotationRenderer * | GetAnnotationRenderer (const std::string &rendererID) |
| static void | AddAnnotation (Annotation *Annotation, const std::string &rendererID) |
| static void | AddAnnotation (Annotation *Annotation, BaseRenderer *renderer) |
Additional Inherited Members | |
| Public Types inherited from mitk::AbstractAnnotationRenderer | |
| typedef us::ServiceTracker< Annotation > | Superclass |
| Public Types inherited from us::ServiceTracker< Annotation > | |
| typedef Annotation | ServiceType |
| The type of the service being tracked. More... | |
| typedef TrackedTypeTraits< Annotation,Annotation * > ::TrackedType | T |
| The type of the tracked object. More... | |
| typedef ServiceReference< Annotation > | ServiceReferenceType |
| typedef std::map< ServiceReference< Annotation >, T > | TrackingMap |
| Static Public Attributes inherited from mitk::AbstractAnnotationRenderer | |
| static const std::string | US_INTERFACE_NAME |
| static const std::string | US_PROPKEY_ID |
| static const std::string | US_PROPKEY_RENDERER_ID |
| Protected Types inherited from us::ServiceTrackerCustomizer< S, T > | |
| typedef S | ServiceType |
| typedef T | TrackedType |
| typedef ServiceReference< ServiceType > | ServiceReferenceType |
| Protected Member Functions inherited from mitk::AbstractAnnotationRenderer | |
| BaseRenderer * | GetCurrentBaseRenderer () |
| Protected Member Functions inherited from us::ServiceTracker< Annotation > | |
| T | AddingService (const ServiceReferenceType &reference) override |
| void | ModifiedService (const ServiceReferenceType &reference, T service) override |
| void | RemovedService (const ServiceReferenceType &reference, T service) override |
| Protected Member Functions inherited from us::ServiceTrackerCustomizer< S, T > | |
| virtual | ~ServiceTrackerCustomizer () |
| virtual void | ModifiedService (const ServiceReferenceType &reference, TrackedType service)=0 |
| virtual void | RemovedService (const ServiceReferenceType &reference, TrackedType service)=0 |
Detailed Description
The ManualPlacementAnnotationRenderer is used for the simple placement of mitk::Annotation Objects.
An instance of this service is registered for a specific Baserenderer and is used to manage all annotations which are added to it. The static function AddAnnotation is used to register an annotation to a specific service and to create this service if it does not exist yet.
See Annotation Concept for more info.
Definition at line 33 of file mitkManualPlacementAnnotationRenderer.h.
Constructor & Destructor Documentation
◆ ~ManualPlacementAnnotationRenderer()
|
override |
virtual destructor in order to derive from this class
Member Function Documentation
◆ AddAnnotation() [1/2]
|
static |
◆ AddAnnotation() [2/2]
|
static |
◆ GetAnnotationRenderer()
|
static |
The documentation for this class was generated from the following file:
