mitk::LineOperation Class Reference
Operation, that holds everything necessary for an operation on a line. Stores everything for de-/ selecting, inserting , moving and removing a line. More...
#include <mitkLineOperation.h>
Inheritance diagram for mitk::LineOperation:

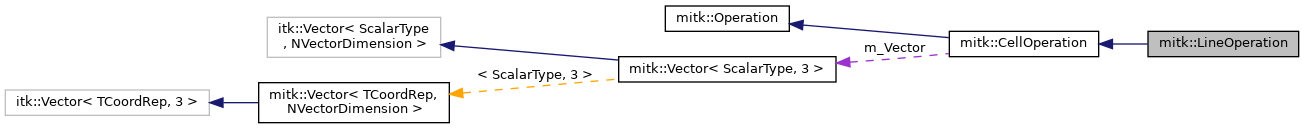

Collaboration diagram for mitk::LineOperation:
Public Member Functions | |
| mitkClassMacro (LineOperation, CellOperation) | |
| LineOperation (OperationType operationType, int cellId, Vector3D vector, int pIdA=-1, int pIdB=-1, int id=-1) | |
| constructor. More... | |
| LineOperation (OperationType operationType, int cellId=-1, int pIdA=-1, int pIdB=-1, int id=-1) | |
| ~LineOperation () override | |
| int | GetPIdA () |
| int | GetPIdB () |
| int | GetId () |
 Public Member Functions inherited from mitk::CellOperation | |
| mitkClassMacro (CellOperation, Operation) | |
| CellOperation (OperationType operationType, int cellId, Vector3D vector) | |
| constructor More... | |
| CellOperation (OperationType operationType, int cellId) | |
| ~CellOperation () override | |
| int | GetCellId () |
| Vector3D | GetVector () |
| Public Member Functions inherited from mitk::Operation | |
| virtual std::vector< std::string > | GetClassHierarchy () const |
| itkTypeMacroNoParent (Operation) virtual bool IsValid() const | |
| virtual | ~Operation ()=default |
| OperationType | GetOperationType () |
Protected Attributes | |
| int | m_PIdA |
| int | m_PIdB |
| int | m_Id |
| Protected Attributes inherited from mitk::CellOperation | |
| int | m_CellId |
| Vector3D | m_Vector |
| Protected Attributes inherited from mitk::Operation | |
| OperationType | m_OperationType |
Additional Inherited Members | |
| Public Types inherited from mitk::Operation | |
| typedef Operation | Self |
| typedef itk::SmartPointer< Self > | Pointer |
| typedef itk::SmartPointer< const Self > | ConstPointer |
| Static Public Member Functions inherited from mitk::Operation | |
| static const char * | GetStaticNameOfClass () |
| Protected Member Functions inherited from mitk::Operation | |
| Operation (OperationType operationType) | |
| Operation (const Operation &)=default | |
| Operation (Operation &&)=default | |
| Operation & | operator= (const Operation &)=default |
| Operation & | operator= (Operation &&)=default |
Detailed Description
Operation, that holds everything necessary for an operation on a line. Stores everything for de-/ selecting, inserting , moving and removing a line.
Definition at line 26 of file mitkLineOperation.h.
Constructor & Destructor Documentation
◆ LineOperation() [1/2]
| mitk::LineOperation::LineOperation | ( | OperationType | operationType, |
| int | cellId, | ||
| Vector3D | vector, | ||
| int | pIdA = -1, |
||
| int | pIdB = -1, |
||
| int | id = -1 |
||
| ) |
constructor.
- Parameters
-
operationType is the type of that operation (see mitkOperation.h; e.g. move or add; Information for StateMachine::ExecuteOperation()); cellId Id of the cell vector is for movement pIdA and pIdB are Id's of two points pIdB id is the Id of a line in a cell
◆ LineOperation() [2/2]
| mitk::LineOperation::LineOperation | ( | OperationType | operationType, |
| int | cellId = -1, |
||
| int | pIdA = -1, |
||
| int | pIdB = -1, |
||
| int | id = -1 |
||
| ) |
◆ ~LineOperation()
|
inlineoverride |
Definition at line 41 of file mitkLineOperation.h.
Member Function Documentation
◆ GetId()
| int mitk::LineOperation::GetId | ( | ) |
◆ GetPIdA()
| int mitk::LineOperation::GetPIdA | ( | ) |
◆ GetPIdB()
| int mitk::LineOperation::GetPIdB | ( | ) |
◆ mitkClassMacro()
| mitk::LineOperation::mitkClassMacro | ( | LineOperation | , |
| CellOperation | |||
| ) |
Member Data Documentation
◆ m_Id
|
protected |
Definition at line 52 of file mitkLineOperation.h.
◆ m_PIdA
|
protected |
Definition at line 50 of file mitkLineOperation.h.
◆ m_PIdB
|
protected |
Definition at line 51 of file mitkLineOperation.h.
The documentation for this class was generated from the following file:
