mitk::ImageToItk< TOutputImage > Class Template Reference
MITK Modules » Core » Process and Adaptor Classes » Adaptor Classes

#include <mitkImageToItk.h>

Inheritance diagram for mitk::ImageToItk< TOutputImage >:
Inheritance graph
[legend]

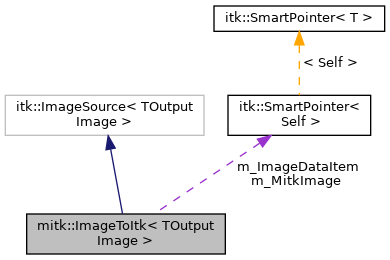

Collaboration diagram for mitk::ImageToItk< TOutputImage >:
Collaboration graph
[legend]

Public Types

typedef ImageToItk Self

typedef itk::ImageSource< TOutputImage > Superclass

typedef itk::SmartPointer< Self > Pointer

typedef itk::SmartPointer< const Self > ConstPointer

typedef Superclass::OutputImageRegionType OutputImageRegionType

typedef mitk::Image InputImageType

typedef InputImageType::Pointer InputImagePointer

typedef InputImageType::ConstPointer InputImageConstPointer

typedef SlicedData::RegionType InputImageRegionType

typedef TOutputImage::SizeType SizeType

typedef TOutputImage::IndexType IndexType

typedef TOutputImage::RegionType RegionType

typedef TOutputImage::PixelType PixelType

typedef TOutputImage::InternalPixelType InternalPixelType

typedef TOutputImage::PixelContainer PixelContainer


Public Member Functions

Pointer Clone () const

virtual void SetInput (mitk::Image *input)

virtual void SetInput (const mitk::Image *input)

void UpdateOutputInformation () override

virtual int GetChannel ()

virtual void SetChannel (int _arg)

virtual void SetCopyMemFlag (bool _arg)

virtual bool GetCopyMemFlag ()

virtual void CopyMemFlagOn ()

virtual void CopyMemFlagOff ()

virtual void SetOptions (int _arg)

virtual int GetOptions ()


Static Public Member Functions

static Pointer New ()


Protected Member Functions

mitk::Image * GetInput (void)

const mitk::Image * GetInput () const

 ImageToItk ()

 ~ImageToItk () override

void PrintSelf (std::ostream &os, itk::Indent indent) const override

void GenerateData () override

void GenerateOutputInformation () override


Protected Attributes

mitk::Image::Pointer m_MitkImage

mitk::ImageDataItem::Pointer m_ImageDataItem


Detailed Description

template<class TOutputImage>
class mitk::ImageToItk< TOutputImage >

Create itk::ImageSource for mitk::Image

Warning
2D MITK images will get a 2D identity matrix in ITK

Definition at line 33 of file mitkImageToItk.h.

Member Typedef Documentation

◆ ConstPointer

template<class TOutputImage >
typedef itk::SmartPointer<const Self> mitk::ImageToItk< TOutputImage >::ConstPointer

Definition at line 43 of file mitkImageToItk.h.

◆ IndexType

template<class TOutputImage >
typedef TOutputImage::IndexType mitk::ImageToItk< TOutputImage >::IndexType

Definition at line 58 of file mitkImageToItk.h.

◆ InputImageConstPointer

template<class TOutputImage >
typedef InputImageType::ConstPointer mitk::ImageToItk< TOutputImage >::InputImageConstPointer

Definition at line 55 of file mitkImageToItk.h.

◆ InputImagePointer

template<class TOutputImage >
typedef InputImageType::Pointer mitk::ImageToItk< TOutputImage >::InputImagePointer

Definition at line 54 of file mitkImageToItk.h.

◆ InputImageRegionType

template<class TOutputImage >
typedef SlicedData::RegionType mitk::ImageToItk< TOutputImage >::InputImageRegionType

Definition at line 56 of file mitkImageToItk.h.

◆ InputImageType

template<class TOutputImage >
typedef mitk::Image mitk::ImageToItk< TOutputImage >::InputImageType

Some convenient typedefs.

Definition at line 53 of file mitkImageToItk.h.

◆ InternalPixelType

template<class TOutputImage >
typedef TOutputImage::InternalPixelType mitk::ImageToItk< TOutputImage >::InternalPixelType

Definition at line 61 of file mitkImageToItk.h.

◆ OutputImageRegionType

template<class TOutputImage >
typedef Superclass::OutputImageRegionType mitk::ImageToItk< TOutputImage >::OutputImageRegionType

Superclass typedefs.

Definition at line 47 of file mitkImageToItk.h.

◆ PixelContainer

template<class TOutputImage >
typedef TOutputImage::PixelContainer mitk::ImageToItk< TOutputImage >::PixelContainer

Definition at line 62 of file mitkImageToItk.h.

◆ PixelType

template<class TOutputImage >
typedef TOutputImage::PixelType mitk::ImageToItk< TOutputImage >::PixelType

Definition at line 60 of file mitkImageToItk.h.

◆ Pointer

template<class TOutputImage >
typedef itk::SmartPointer<Self> mitk::ImageToItk< TOutputImage >::Pointer

Definition at line 42 of file mitkImageToItk.h.

◆ RegionType

template<class TOutputImage >
typedef TOutputImage::RegionType mitk::ImageToItk< TOutputImage >::RegionType

Definition at line 59 of file mitkImageToItk.h.

◆ Self

template<class TOutputImage >
typedef ImageToItk mitk::ImageToItk< TOutputImage >::Self

Definition at line 40 of file mitkImageToItk.h.

◆ SizeType

template<class TOutputImage >
typedef TOutputImage::SizeType mitk::ImageToItk< TOutputImage >::SizeType

Definition at line 57 of file mitkImageToItk.h.

◆ Superclass

template<class TOutputImage >
typedef itk::ImageSource<TOutputImage> mitk::ImageToItk< TOutputImage >::Superclass

Definition at line 41 of file mitkImageToItk.h.

Constructor & Destructor Documentation

◆ ImageToItk()

template<class TOutputImage >
mitk::ImageToItk< TOutputImage >::ImageToItk ( )
inlineprotected

Definition at line 86 of file mitkImageToItk.h.

◆ ~ImageToItk()

template<class TOutputImage >
mitk::ImageToItk< TOutputImage >::~ImageToItk ( )
inlineoverrideprotected

Definition at line 87 of file mitkImageToItk.h.

Member Function Documentation

◆ Clone()

template<class TOutputImage >
Pointer mitk::ImageToItk< TOutputImage >::Clone ( ) const

◆ CopyMemFlagOff()

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::CopyMemFlagOff ( )
virtual

◆ CopyMemFlagOn()

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::CopyMemFlagOn ( )
virtual

◆ GenerateData()

template<class TOutputImage >
void mitk::ImageToItk< TOutputImage >::GenerateData ( )
overrideprotected

◆ GenerateOutputInformation()

template<class TOutputImage >
void mitk::ImageToItk< TOutputImage >::GenerateOutputInformation ( )
overrideprotected

◆ GetChannel()

template<class TOutputImage >
virtual int mitk::ImageToItk< TOutputImage >::GetChannel ( )
virtual

◆ GetCopyMemFlag()

template<class TOutputImage >
virtual bool mitk::ImageToItk< TOutputImage >::GetCopyMemFlag ( )
virtual

◆ GetInput() [1/2]

template<class TOutputImage >
const mitk::Image* mitk::ImageToItk< TOutputImage >::GetInput ( ) const
protected

◆ GetInput() [2/2]

template<class TOutputImage >
mitk::Image* mitk::ImageToItk< TOutputImage >::GetInput ( void  )
protected

◆ GetOptions()

template<class TOutputImage >
virtual int mitk::ImageToItk< TOutputImage >::GetOptions ( )
virtual

◆ New()

template<class TOutputImage >
static Pointer mitk::ImageToItk< TOutputImage >::New ( )
static

Method for creation through the object factory.

◆ PrintSelf()

template<class TOutputImage >
void mitk::ImageToItk< TOutputImage >::PrintSelf ( std::ostream &  os,
itk::Indent  indent
) const
overrideprotected

◆ SetChannel()

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::SetChannel ( int  _arg)
virtual

◆ SetCopyMemFlag()

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::SetCopyMemFlag ( bool  _arg)
virtual

◆ SetInput() [1/2]

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::SetInput ( const mitk::Image *  input)
virtual

◆ SetInput() [2/2]

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::SetInput ( mitk::Image *  input)
virtual

◆ SetOptions()

template<class TOutputImage >
virtual void mitk::ImageToItk< TOutputImage >::SetOptions ( int  _arg)
virtual

◆ UpdateOutputInformation()

template<class TOutputImage >
void mitk::ImageToItk< TOutputImage >::UpdateOutputInformation ( )
override

Member Data Documentation

◆ m_ImageDataItem

template<class TOutputImage >
mitk::ImageDataItem::Pointer mitk::ImageToItk< TOutputImage >::m_ImageDataItem
protected

Definition at line 37 of file mitkImageToItk.h.

◆ m_MitkImage

template<class TOutputImage >
mitk::Image::Pointer mitk::ImageToItk< TOutputImage >::m_MitkImage
protected

Definition at line 36 of file mitkImageToItk.h.

The documentation for this class was generated from the following file:
