mitk::ImageTimeSelector Class Reference

Provides access to a volume at a specific time of the input image. More...

#include <mitkImageTimeSelector.h>

Inheritance diagram for mitk::ImageTimeSelector:

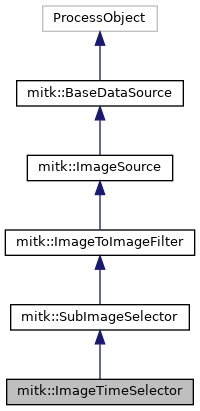

Collaboration diagram for mitk::ImageTimeSelector:

Public Types
typedef ImageTimeSelector	Self
typedef SubImageSelector	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Public Types inherited from mitk::SubImageSelector
typedef SubImageSelector	Self
typedef ImageToImageFilter	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
Public Types inherited from mitk::ImageToImageFilter
typedef ImageToImageFilter	Self
typedef ImageSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef Superclass::OutputImageRegionType	OutputImageRegionType
typedef mitk::Image	InputImageType
typedef InputImageType::Pointer	InputImagePointer
typedef InputImageType::ConstPointer	InputImageConstPointer
typedef SlicedData::RegionType	InputImageRegionType
Public Types inherited from mitk::ImageSource
typedef ImageSource	Self
typedef BaseDataSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...
typedef OutputImageType	OutputType
typedef OutputImageType::Pointer	OutputImagePointer
typedef SlicedData::RegionType	OutputImageRegionType
Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef BaseData	OutputType
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType

Public Member Functions
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
virtual int	GetTimeNr () const
virtual void	SetTimeNr (int _arg)
virtual int	GetChannelNr () const
virtual void	SetChannelNr (int _arg)
Public Member Functions inherited from mitk::SubImageSelector
Pointer	Clone () const
virtual void	SetPosNr (int p)
	SubImageSelector ()
	~SubImageSelector () override
Public Member Functions inherited from mitk::ImageToImageFilter
Pointer	Clone () const
virtual void	SetInput (const InputImageType *image)
virtual void	SetInput (unsigned int, const InputImageType *image)
InputImageType *	GetInput (void)
InputImageType *	GetInput (unsigned int idx)
const InputImageType *	GetInput (void) const
const InputImageType *	GetInput (unsigned int idx) const
Public Member Functions inherited from mitk::ImageSource
Pointer	Clone () const
OutputType *	GetOutput ()
	Get the output data of this image source object. More...
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
	Make a DataObject of the correct type to used as the specified output. More...
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
virtual vtkImageData *	GetVtkImageData ()
virtual const vtkImageData *	GetVtkImageData () const
Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
Static Public Member Functions inherited from mitk::SubImageSelector
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
Static Public Member Functions inherited from mitk::ImageToImageFilter
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
	Method for creation through the object factory. More...
Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ImageTimeSelector ()
	~ImageTimeSelector () override
void	GenerateOutputInformation () override
void	GenerateInputRequestedRegion () override
void	GenerateData () override
Protected Member Functions inherited from mitk::SubImageSelector
mitk::Image::ImageDataItemPointer	GetSliceData (int s=0, int t=0, int n=0)
mitk::Image::ImageDataItemPointer	GetVolumeData (int t=0, int n=0)
mitk::Image::ImageDataItemPointer	GetChannelData (int n=0)
void	SetSliceItem (mitk::Image::ImageDataItemPointer dataItem, int s=0, int t=0, int n=0)
void	SetVolumeItem (mitk::Image::ImageDataItemPointer dataItem, int t=0, int n=0)
void	SetChannelItem (mitk::Image::ImageDataItemPointer dataItem, int n=0)
Protected Member Functions inherited from mitk::ImageToImageFilter
	ImageToImageFilter ()
	~ImageToImageFilter () override
void	PrintSelf (std::ostream &os, itk::Indent indent) const override
void	GenerateInputRequestedRegion () override
Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()
	~ImageSource () override
void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...
virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...
void	PrepareOutputs () override
	This method is intentionally left blank. More...
virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...
virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...
virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...
virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	~BaseDataSource () override

Protected Attributes
int	m_TimeNr
int	m_ChannelNr

Additional Inherited Members
Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Provides access to a volume at a specific time of the input image.

If the input is generated by a ProcessObject, only the required data is requested.

Definition at line 27 of file mitkImageTimeSelector.h.

Member Typedef Documentation

ConstPointer

typedef itk::SmartPointer<const Self> mitk::ImageTimeSelector::ConstPointer

Definition at line 30 of file mitkImageTimeSelector.h.

Pointer

typedef itk::SmartPointer<Self> mitk::ImageTimeSelector::Pointer

Definition at line 30 of file mitkImageTimeSelector.h.

Self

typedef ImageTimeSelector mitk::ImageTimeSelector::Self

Definition at line 30 of file mitkImageTimeSelector.h.

Superclass

typedef SubImageSelector mitk::ImageTimeSelector::Superclass

Definition at line 30 of file mitkImageTimeSelector.h.

Constructor & Destructor Documentation

ImageTimeSelector()

mitk::ImageTimeSelector::ImageTimeSelector ( )

protected

~ImageTimeSelector()

mitk::ImageTimeSelector::~ImageTimeSelector ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::ImageTimeSelector::Clone

(

)

const

GenerateData()

void mitk::ImageTimeSelector::GenerateData ( )

overrideprotected

GenerateInputRequestedRegion()

void mitk::ImageTimeSelector::GenerateInputRequestedRegion ( )

overrideprotected

GenerateOutputInformation()

void mitk::ImageTimeSelector::GenerateOutputInformation ( )

overrideprotected

GetChannelNr()

virtual int mitk::ImageTimeSelector::GetChannelNr ( ) const

virtual

GetClassHierarchy()

virtual std::vector<std::string> mitk::ImageTimeSelector::GetClassHierarchy ( ) const

inlineoverridevirtual

Reimplemented from mitk::SubImageSelector.

Definition at line 30 of file mitkImageTimeSelector.h.

GetClassName()

virtual const char* mitk::ImageTimeSelector::GetClassName ( ) const

virtual

Reimplemented from mitk::SubImageSelector.

GetStaticNameOfClass()

static const char* mitk::ImageTimeSelector::GetStaticNameOfClass ( )

inlinestatic

Definition at line 30 of file mitkImageTimeSelector.h.

GetTimeNr()

virtual int mitk::ImageTimeSelector::GetTimeNr ( ) const

virtual

New()

static Pointer mitk::ImageTimeSelector::New ( )

static

SetChannelNr()

virtual void mitk::ImageTimeSelector::SetChannelNr ( int  _arg )

virtual

SetTimeNr()

virtual void mitk::ImageTimeSelector::SetTimeNr ( int  _arg )

virtual

Member Data Documentation

m_ChannelNr

int mitk::ImageTimeSelector::m_ChannelNr

protected

Definition at line 55 of file mitkImageTimeSelector.h.

m_TimeNr

int mitk::ImageTimeSelector::m_TimeNr

protected

Definition at line 53 of file mitkImageTimeSelector.h.

---

The documentation for this class was generated from the following file:

• mitkImageTimeSelector.h
