mitk::ContourModelSetToImageFilter Class Reference

Fills a given mitk::ContourModelSet into a given mitk::Image. More...

#include <mitkContourModelSetToImageFilter.h>

Inheritance diagram for mitk::ContourModelSetToImageFilter:

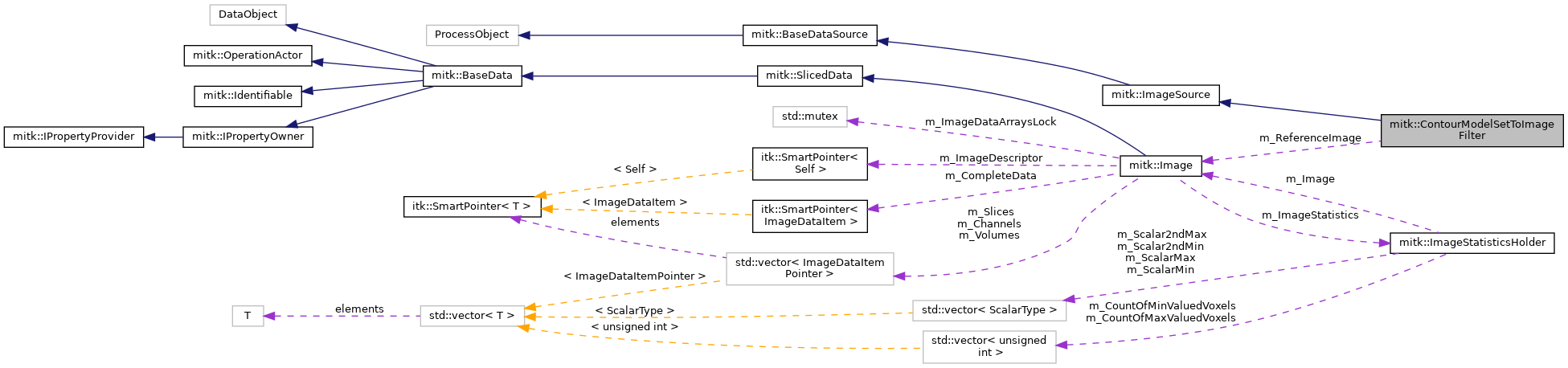

Collaboration diagram for mitk::ContourModelSetToImageFilter:

Public Member Functions
	mitkClassMacro (ContourModelSetToImageFilter, ImageSource)
Pointer	Clone () const
virtual void	SetMakeOutputBinary (bool makeOutputBinary)
virtual void	SetMakeOutputLabelPixelType (bool makeOutputLabelPixelType)
virtual void	SetPaintingPixelValue (int _arg)
virtual void	SetTimeStep (unsigned int _arg)
virtual bool	GetMakeOutputBinary ()
virtual bool	GetMakeOutputLabelPixelType ()
virtual int	GetPaintingPixelValue ()
virtual void	MakeOutputBinaryOn ()
virtual void	MakeOutputBinaryOff ()
virtual void	MakeOutputLabelPixelTypeOn ()
virtual void	MakeOutputLabelPixelTypeOff ()
itk::DataObject::Pointer	MakeOutput (DataObjectPointerArraySizeType idx) override
itk::DataObject::Pointer	MakeOutput (const DataObjectIdentifierType &name) override
void	GenerateInputRequestedRegion () override
void	GenerateOutputInformation () override
void	GenerateData () override
const mitk::ContourModelSet *	GetInput (void)
virtual void	SetInput (const mitk::ContourModelSet *input)
void	SetImage (const mitk::Image *refImage)
	Set the image which will be used to initialize the output of this filter. More...
const mitk::Image *	GetImage (void)
Public Member Functions inherited from mitk::ImageSource
virtual std::vector< std::string >	GetClassHierarchy () const override
virtual const char *	GetClassName () const
Pointer	Clone () const
OutputType *	GetOutput ()
	Get the output data of this image source object. More...
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual vtkImageData *	GetVtkImageData ()
virtual const vtkImageData *	GetVtkImageData () const
Public Member Functions inherited from mitk::BaseDataSource
OutputType *	GetOutput ()
const OutputType *	GetOutput () const
OutputType *	GetOutput (DataObjectPointerArraySizeType idx)
const OutputType *	GetOutput (DataObjectPointerArraySizeType idx) const
virtual void	GraftOutput (OutputType *output)
	Graft the specified BaseData onto this BaseDataSource's output. More...
virtual void	GraftOutput (const DataObjectIdentifierType &key, OutputType *output)
virtual void	GraftNthOutput (unsigned int idx, OutputType *output)
	Graft the specified base data object onto this BaseDataSource's idx'th output. More...
bool	Updating () const
	Access itk::ProcessObject::m_Updating. More...

Static Public Member Functions
static Pointer	New ()
Static Public Member Functions inherited from mitk::ImageSource
static const char *	GetStaticNameOfClass ()
static Pointer	New ()
	Method for creation through the object factory. More...
Static Public Member Functions inherited from mitk::BaseDataSource
static const char *	GetStaticNameOfClass ()

Protected Member Functions
	ContourModelSetToImageFilter ()
	~ContourModelSetToImageFilter () override
void	InitializeOutputEmpty ()
	Initializes the volume of the output image with zeros. More...
Protected Member Functions inherited from mitk::ImageSource
	ImageSource ()
	~ImageSource () override
void	GenerateData () override
	A version of GenerateData() specific for image processing filters. More...
virtual void	ThreadedGenerateData (const OutputImageRegionType &outputRegionForThread, itk::ThreadIdType threadId)
	If an imaging filter can be implemented as a multithreaded algorithm, the filter will provide an implementation of ThreadedGenerateData(). More...
void	PrepareOutputs () override
	This method is intentionally left blank. More...
virtual void	AllocateOutputs ()
	The GenerateData method normally allocates the buffers for all of the outputs of a filter. More...
virtual void	BeforeThreadedGenerateData ()
	If an imaging filter needs to perform processing after the buffer has been allocated but before threads are spawned, the filter can can provide an implementation for BeforeThreadedGenerateData(). More...
virtual void	AfterThreadedGenerateData ()
	If an imaging filter needs to perform processing after all processing threads have completed, the filter can can provide an implementation for AfterThreadedGenerateData(). More...
virtual unsigned int	SplitRequestedRegion (unsigned int i, unsigned int num, OutputImageRegionType &splitRegion)
	Split the output's RequestedRegion into "num" pieces, returning region "i" as "splitRegion". More...
Protected Member Functions inherited from mitk::BaseDataSource
	BaseDataSource ()
	~BaseDataSource () override

Protected Attributes
bool	m_MakeOutputBinary
bool	m_MakeOutputLabelPixelType
int	m_PaintingPixelValue
unsigned int	m_TimeStep
const mitk::Image *	m_ReferenceImage

Additional Inherited Members
Public Types inherited from mitk::ImageSource
typedef ImageSource	Self
typedef BaseDataSource	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef mitk::Image	OutputImageType
	Some convenient typedefs. More...
typedef OutputImageType	OutputType
typedef OutputImageType::Pointer	OutputImagePointer
typedef SlicedData::RegionType	OutputImageRegionType
Public Types inherited from mitk::BaseDataSource
typedef BaseDataSource	Self
typedef itk::ProcessObject	Superclass
typedef itk::SmartPointer< Self >	Pointer
typedef itk::SmartPointer< const Self >	ConstPointer
typedef BaseData	OutputType
typedef itk::DataObject::DataObjectIdentifierType	DataObjectIdentifierType
Static Protected Member Functions inherited from mitk::ImageSource
static itk::ITK_THREAD_RETURN_TYPE	ThreaderCallback (void *arg)
	Static function used as a "callback" by the MultiThreader. More...
Static Protected Member Functions inherited from mitk::BaseDataSource
static Pointer	New ()

Detailed Description

Fills a given mitk::ContourModelSet into a given mitk::Image.

Definition at line 28 of file mitkContourModelSetToImageFilter.h.

Constructor & Destructor Documentation

ContourModelSetToImageFilter()

mitk::ContourModelSetToImageFilter::ContourModelSetToImageFilter ( )

protected

~ContourModelSetToImageFilter()

mitk::ContourModelSetToImageFilter::~ContourModelSetToImageFilter ( )

overrideprotected

Member Function Documentation

Clone()

Pointer mitk::ContourModelSetToImageFilter::Clone

(

)

const

GenerateData()

void mitk::ContourModelSetToImageFilter::GenerateData ( )

override

GenerateInputRequestedRegion()

void mitk::ContourModelSetToImageFilter::GenerateInputRequestedRegion ( )

override

GenerateOutputInformation()

void mitk::ContourModelSetToImageFilter::GenerateOutputInformation ( )

override

GetImage()

const mitk::Image* mitk::ContourModelSetToImageFilter::GetImage

(

void

)

GetInput()

const mitk::ContourModelSet* mitk::ContourModelSetToImageFilter::GetInput

(

void

)

GetMakeOutputBinary()

virtual bool mitk::ContourModelSetToImageFilter::GetMakeOutputBinary ( )

virtual

GetMakeOutputLabelPixelType()

virtual bool mitk::ContourModelSetToImageFilter::GetMakeOutputLabelPixelType ( )

virtual

GetPaintingPixelValue()

virtual int mitk::ContourModelSetToImageFilter::GetPaintingPixelValue ( )

virtual

InitializeOutputEmpty()

void mitk::ContourModelSetToImageFilter::InitializeOutputEmpty ( )

protected

Initializes the volume of the output image with zeros.

MakeOutput() [1/2]

itk::DataObject::Pointer mitk::ContourModelSetToImageFilter::MakeOutput ( const DataObjectIdentifierType &  name )

overridevirtual

This is a default implementation to make sure we have something. Once all the subclasses of ProcessObject provide an appropriate MakeOutput(), then ProcessObject::MakeOutput() can be made pure virtual.

Reimplemented from mitk::ImageSource.

MakeOutput() [2/2]

itk::DataObject::Pointer mitk::ContourModelSetToImageFilter::MakeOutput ( DataObjectPointerArraySizeType  idx )

overridevirtual

Allocates a new output object and returns it. Currently the index idx is not evaluated.

Parameters

idx	the index of the output for which an object should be created

Returns

the new object

Reimplemented from mitk::ImageSource.

MakeOutputBinaryOff()

virtual void mitk::ContourModelSetToImageFilter::MakeOutputBinaryOff ( )

virtual

MakeOutputBinaryOn()

virtual void mitk::ContourModelSetToImageFilter::MakeOutputBinaryOn ( )

virtual

MakeOutputLabelPixelTypeOff()

virtual void mitk::ContourModelSetToImageFilter::MakeOutputLabelPixelTypeOff ( )

virtual

MakeOutputLabelPixelTypeOn()

virtual void mitk::ContourModelSetToImageFilter::MakeOutputLabelPixelTypeOn ( )

virtual

mitkClassMacro()

mitk::ContourModelSetToImageFilter::mitkClassMacro	(	ContourModelSetToImageFilter	,
		ImageSource
	)

New()

static Pointer mitk::ContourModelSetToImageFilter::New ( )

static

SetImage()

void mitk::ContourModelSetToImageFilter::SetImage

(

const mitk::Image *

refImage

)

Set the image which will be used to initialize the output of this filter.

Parameters

refImage

the image used to initialize the output image

SetInput()

virtual void mitk::ContourModelSetToImageFilter::SetInput ( const mitk::ContourModelSet *  input )

virtual

SetMakeOutputBinary()

virtual void mitk::ContourModelSetToImageFilter::SetMakeOutputBinary ( bool  makeOutputBinary )

virtual

SetMakeOutputLabelPixelType()

virtual void mitk::ContourModelSetToImageFilter::SetMakeOutputLabelPixelType ( bool  makeOutputLabelPixelType )

virtual

SetPaintingPixelValue()

virtual void mitk::ContourModelSetToImageFilter::SetPaintingPixelValue ( int  _arg )

virtual

SetTimeStep()

virtual void mitk::ContourModelSetToImageFilter::SetTimeStep ( unsigned int  _arg )

virtual

Member Data Documentation

m_MakeOutputBinary

bool mitk::ContourModelSetToImageFilter::m_MakeOutputBinary

protected

Definition at line 92 of file mitkContourModelSetToImageFilter.h.

m_MakeOutputLabelPixelType

bool mitk::ContourModelSetToImageFilter::m_MakeOutputLabelPixelType

protected

Definition at line 93 of file mitkContourModelSetToImageFilter.h.

m_PaintingPixelValue

int mitk::ContourModelSetToImageFilter::m_PaintingPixelValue

protected

Definition at line 94 of file mitkContourModelSetToImageFilter.h.

m_ReferenceImage

const mitk::Image* mitk::ContourModelSetToImageFilter::m_ReferenceImage

protected

Definition at line 98 of file mitkContourModelSetToImageFilter.h.

m_TimeStep

unsigned int mitk::ContourModelSetToImageFilter::m_TimeStep

protected

Definition at line 96 of file mitkContourModelSetToImageFilter.h.

---

The documentation for this class was generated from the following file:

• mitkContourModelSetToImageFilter.h
