itk::ShortestPathCostFunction< TInputImageType > Class Template Referenceabstract

#include <itkShortestPathCostFunction.h>

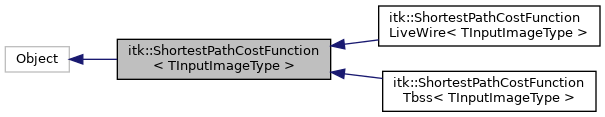

Inheritance diagram for itk::ShortestPathCostFunction< TInputImageType >:
Inheritance graph
[legend]
Collaboration diagram for itk::ShortestPathCostFunction< TInputImageType >:
Collaboration graph
[legend]

Public Types

typedef ShortestPathCostFunction Self

typedef Object Superclass

typedef SmartPointer< Self > Pointer

typedef SmartPointer< const Self > ConstPointer

typedef ShapedNeighborhoodIterator< TInputImageType > ShapedNeighborhoodIteratorType

typedef TInputImageType ImageType

typedef TInputImageType::Pointer ImagePointer

typedef TInputImageType::ConstPointer ImageConstPointer

typedef TInputImageType::PixelType PixelType

typedef TInputImageType::IndexType IndexType


Public Member Functions

virtual const char * GetClassName () const

virtual void SetImage (const TInputImageType *_arg)

virtual double GetCost (IndexType p1, IndexType p2)=0

virtual double GetMinCost ()=0

virtual void Initialize ()=0

void SetStartIndex (const IndexType &index)

void SetEndIndex (const IndexType &index)


Protected Member Functions

 ShortestPathCostFunction ()

 ~ShortestPathCostFunction () override

void PrintSelf (std::ostream &os, Indent indent) const override


Protected Attributes

ImageConstPointer m_Image

IndexType m_StartIndex

IndexType m_EndIndex


Detailed Description

template<class TInputImageType>
class itk::ShortestPathCostFunction< TInputImageType >

Definition at line 23 of file itkShortestPathCostFunction.h.

Member Typedef Documentation

◆ ConstPointer

template<class TInputImageType >
typedef SmartPointer<const Self> itk::ShortestPathCostFunction< TInputImageType >::ConstPointer

Definition at line 30 of file itkShortestPathCostFunction.h.

◆ ImageConstPointer

template<class TInputImageType >
typedef TInputImageType::ConstPointer itk::ShortestPathCostFunction< TInputImageType >::ImageConstPointer

Definition at line 41 of file itkShortestPathCostFunction.h.

◆ ImagePointer

template<class TInputImageType >
typedef TInputImageType::Pointer itk::ShortestPathCostFunction< TInputImageType >::ImagePointer

Definition at line 40 of file itkShortestPathCostFunction.h.

◆ ImageType

template<class TInputImageType >
typedef TInputImageType itk::ShortestPathCostFunction< TInputImageType >::ImageType

Type definition for the input image.

Definition at line 34 of file itkShortestPathCostFunction.h.

◆ IndexType

template<class TInputImageType >
typedef TInputImageType::IndexType itk::ShortestPathCostFunction< TInputImageType >::IndexType

Definition at line 43 of file itkShortestPathCostFunction.h.

◆ PixelType

template<class TInputImageType >
typedef TInputImageType::PixelType itk::ShortestPathCostFunction< TInputImageType >::PixelType

Definition at line 42 of file itkShortestPathCostFunction.h.

◆ Pointer

template<class TInputImageType >
typedef SmartPointer<Self> itk::ShortestPathCostFunction< TInputImageType >::Pointer

Definition at line 29 of file itkShortestPathCostFunction.h.

◆ Self

template<class TInputImageType >
typedef ShortestPathCostFunction itk::ShortestPathCostFunction< TInputImageType >::Self

Standard class typedefs.

Definition at line 27 of file itkShortestPathCostFunction.h.

◆ ShapedNeighborhoodIteratorType

template<class TInputImageType >
typedef ShapedNeighborhoodIterator<TInputImageType> itk::ShortestPathCostFunction< TInputImageType >::ShapedNeighborhoodIteratorType

Definition at line 31 of file itkShortestPathCostFunction.h.

◆ Superclass

template<class TInputImageType >
typedef Object itk::ShortestPathCostFunction< TInputImageType >::Superclass

Definition at line 28 of file itkShortestPathCostFunction.h.

Constructor & Destructor Documentation

◆ ShortestPathCostFunction()

template<class TInputImageType >
itk::ShortestPathCostFunction< TInputImageType >::ShortestPathCostFunction ( )
inlineprotected

Definition at line 64 of file itkShortestPathCostFunction.h.

◆ ~ShortestPathCostFunction()

template<class TInputImageType >
itk::ShortestPathCostFunction< TInputImageType >::~ShortestPathCostFunction ( )
inlineoverrideprotected

Definition at line 65 of file itkShortestPathCostFunction.h.

Member Function Documentation

◆ GetClassName()

template<class TInputImageType >
virtual const char* itk::ShortestPathCostFunction< TInputImageType >::GetClassName ( ) const
virtual

Run-time type information (and related methods).

Reimplemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >, and itk::ShortestPathCostFunctionTbss< TInputImageType >.

◆ GetCost()

template<class TInputImageType >
virtual double itk::ShortestPathCostFunction< TInputImageType >::GetCost ( IndexType  p1,
IndexType  p2
)
pure virtual

Implemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >, and itk::ShortestPathCostFunctionTbss< TInputImageType >.

◆ GetMinCost()

template<class TInputImageType >
virtual double itk::ShortestPathCostFunction< TInputImageType >::GetMinCost ( )
pure virtual

Implemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >, and itk::ShortestPathCostFunctionTbss< TInputImageType >.

◆ Initialize()

template<class TInputImageType >
virtual void itk::ShortestPathCostFunction< TInputImageType >::Initialize ( )
pure virtual

Implemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >, and itk::ShortestPathCostFunctionTbss< TInputImageType >.

◆ PrintSelf()

template<class TInputImageType >
void itk::ShortestPathCostFunction< TInputImageType >::PrintSelf ( std::ostream &  os,
Indent  indent
) const
overrideprotected

◆ SetEndIndex()

template<class TInputImageType >
void itk::ShortestPathCostFunction< TInputImageType >::SetEndIndex ( const IndexType &  index)

◆ SetImage()

template<class TInputImageType >
virtual void itk::ShortestPathCostFunction< TInputImageType >::SetImage ( const TInputImageType *  _arg)
virtual

Reimplemented in itk::ShortestPathCostFunctionLiveWire< TInputImageType >.

◆ SetStartIndex()

template<class TInputImageType >
void itk::ShortestPathCostFunction< TInputImageType >::SetStartIndex ( const IndexType &  index)

Member Data Documentation

◆ m_EndIndex

template<class TInputImageType >
IndexType itk::ShortestPathCostFunction< TInputImageType >::m_EndIndex
protected

Definition at line 68 of file itkShortestPathCostFunction.h.

◆ m_Image

template<class TInputImageType >
ImageConstPointer itk::ShortestPathCostFunction< TInputImageType >::m_Image
protected

Definition at line 67 of file itkShortestPathCostFunction.h.

◆ m_StartIndex

template<class TInputImageType >
IndexType itk::ShortestPathCostFunction< TInputImageType >::m_StartIndex
protected

Definition at line 68 of file itkShortestPathCostFunction.h.

The documentation for this class was generated from the following file:
