QmitkTotalSegmentatorToolGUI Class Reference

#include <QmitkTotalSegmentatorToolGUI.h>

Inheritance diagram for QmitkTotalSegmentatorToolGUI:

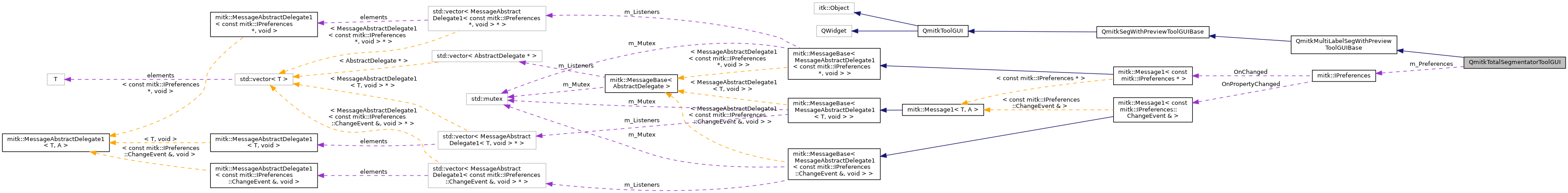

Collaboration diagram for QmitkTotalSegmentatorToolGUI:

Public Member Functions
	mitkClassMacro (QmitkTotalSegmentatorToolGUI, QmitkMultiLabelSegWithPreviewToolGUIBase)
Pointer	Clone () const
Public Member Functions inherited from QmitkMultiLabelSegWithPreviewToolGUIBase
	mitkClassMacro (QmitkMultiLabelSegWithPreviewToolGUIBase, QmitkSegWithPreviewToolGUIBase)
Public Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	mitkClassMacro (QmitkSegWithPreviewToolGUIBase, QmitkToolGUI)
Pointer	Clone () const
virtual bool	GetMode2D () const
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
void	Register () const override
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
void	SetReferenceCount (int) override
	~QmitkToolGUI () override

Static Public Member Functions
static Pointer	New ()

Protected Slots
void	OnPreviewBtnClicked ()
	Qt Slot. More...
Protected Slots inherited from QmitkMultiLabelSegWithPreviewToolGUIBase
void	OnLabelSelectionChanged (const QmitkSimpleLabelSetListWidget::LabelVectorType &selectedLabels)
void	OnRadioTransferAllClicked (bool checked)
Protected Slots inherited from QmitkSegWithPreviewToolGUIBase
void	OnNewToolAssociated (mitk::Tool *)
void	OnAcceptPreview ()

Protected Member Functions
	QmitkTotalSegmentatorToolGUI ()
	~QmitkTotalSegmentatorToolGUI () override
void	ConnectNewTool (mitk::SegWithPreviewTool *newTool) override
void	InitializeUI (QBoxLayout *mainLayout) override
void	EnableAll (bool)
	Enable (or Disable) GUI elements. More...
void	ToggleLicensedTasks (bool activate)
	Adds and removes licensed task in combo box. More...
void	ShowErrorMessage (const std::string &, QMessageBox::Icon=QMessageBox::Critical)
	Creates a QMessage object and shows on screen. More...
void	WriteStatusMessage (const QString &)
	Writes any message in white on the tool pane. More...
void	WriteErrorMessage (const QString &)
	Writes any message in red on the tool pane. More...
void	OnPreferenceChangedEvent (const mitk::IPreferences::ChangeEvent &)
	Checks for changes in preferences. More...
void	DownloadStatusWorker (const bool isDownloading)
	Update status label as per status received from mitk::Message event. More...
Protected Member Functions inherited from QmitkMultiLabelSegWithPreviewToolGUIBase
	QmitkMultiLabelSegWithPreviewToolGUIBase ()
	~QmitkMultiLabelSegWithPreviewToolGUIBase ()=default
void	EnableWidgets (bool enabled) override
void	SetLabelSetPreview (const mitk::MultiLabelSegmentation *preview)
void	ActualizePreviewLabelVisibility ()
void	DisplayTransferWidgets (bool enabled)
	To toggle visibility of "Transfer all labels" and "Transfer selected labels" radio buttons. More...
Protected Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	QmitkSegWithPreviewToolGUIBase (bool mode2D, bool enableProcessingOfAllTimeSteps=true)
	~QmitkSegWithPreviewToolGUIBase () override
virtual void	DisconnectOldTool (mitk::SegWithPreviewTool *oldTool)
void	BusyStateChanged (bool isBusy) override
template<class TTool >
TTool *	GetConnectedToolAs ()
void	SetMergeStyle (mitk::MultiLabelSegmentation::MergeStyle mergeStyle)
void	SetOverwriteStyle (mitk::MultiLabelSegmentation::OverwriteStyle overwriteStyle)
QPushButton *	GetConfirmSegmentationButton () const
Protected Member Functions inherited from QmitkToolGUI
	QmitkToolGUI ()=default

Protected Attributes
QMutex	m_Mutex
Ui::QmitkTotalSegmentatorToolGUIControls *	m_Controls
bool	m_FirstPreviewComputation
EnableConfirmSegBtnFunctionType	m_SuperclassEnableConfirmSegBtnFnc
mitk::IPreferences *	m_Preferences
const QStringList	VALID_TASKS
const QStringList	LICENSED_TASKS
Protected Attributes inherited from QmitkSegWithPreviewToolGUIBase
EnableConfirmSegBtnFunctionType	m_EnableConfirmSegBtnFnc
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)
Protected Types inherited from QmitkSegWithPreviewToolGUIBase
using	EnableConfirmSegBtnFunctionType = std::function< bool(bool)>

Detailed Description

Definition at line 32 of file QmitkTotalSegmentatorToolGUI.h.

Constructor & Destructor Documentation

QmitkTotalSegmentatorToolGUI()

QmitkTotalSegmentatorToolGUI::QmitkTotalSegmentatorToolGUI ( )

protected

~QmitkTotalSegmentatorToolGUI()

QmitkTotalSegmentatorToolGUI::~QmitkTotalSegmentatorToolGUI ( )

overrideprotected

Member Function Documentation

Clone()

Pointer QmitkTotalSegmentatorToolGUI::Clone

(

)

const

ConnectNewTool()

void QmitkTotalSegmentatorToolGUI::ConnectNewTool ( mitk::SegWithPreviewTool *  newTool )

overrideprotectedvirtual

Reimplemented from QmitkSegWithPreviewToolGUIBase.

DownloadStatusWorker()

void QmitkTotalSegmentatorToolGUI::DownloadStatusWorker ( const bool  isDownloading )

protected

Update status label as per status received from mitk::Message event.

EnableAll()

void QmitkTotalSegmentatorToolGUI::EnableAll ( bool  )

protected

Enable (or Disable) GUI elements.

InitializeUI()

void QmitkTotalSegmentatorToolGUI::InitializeUI ( QBoxLayout *  mainLayout )

overrideprotectedvirtual

This method is called by OnNewToolAssociated if the UI is initialized the first time to allow derived classes to introduce own UI code. Overwrite to change. The implementation should ensure that alle widgets needed for the tool UI are properly allocated. If one needs to eecute time (e.g. to connect events between the tool and the UI) each time the tool changes, override the functions ConnectNewTool() and DisconnectOldTool().

Reimplemented from QmitkMultiLabelSegWithPreviewToolGUIBase.

mitkClassMacro()

QmitkTotalSegmentatorToolGUI::mitkClassMacro	(	QmitkTotalSegmentatorToolGUI	,
		QmitkMultiLabelSegWithPreviewToolGUIBase
	)

New()

static Pointer QmitkTotalSegmentatorToolGUI::New ( )

static

OnPreferenceChangedEvent()

void QmitkTotalSegmentatorToolGUI::OnPreferenceChangedEvent ( const mitk::IPreferences::ChangeEvent &  )

protected

Checks for changes in preferences.

OnPreviewBtnClicked

void QmitkTotalSegmentatorToolGUI::OnPreviewBtnClicked ( )

protectedslot

Qt Slot.

ShowErrorMessage()

void QmitkTotalSegmentatorToolGUI::ShowErrorMessage ( const std::string &  , QMessageBox::Icon  = QMessageBox::Critical  )

protected

Creates a QMessage object and shows on screen.

ToggleLicensedTasks()

void QmitkTotalSegmentatorToolGUI::ToggleLicensedTasks ( bool  activate )

protected

Adds and removes licensed task in combo box.

WriteErrorMessage()

void QmitkTotalSegmentatorToolGUI::WriteErrorMessage ( const QString &  )

protected

Writes any message in red on the tool pane.

WriteStatusMessage()

void QmitkTotalSegmentatorToolGUI::WriteStatusMessage ( const QString &  )

protected

Writes any message in white on the tool pane.

Member Data Documentation

LICENSED_TASKS

const QStringList QmitkTotalSegmentatorToolGUI::LICENSED_TASKS

protected

Definition at line 117 of file QmitkTotalSegmentatorToolGUI.h.

m_Controls

Ui::QmitkTotalSegmentatorToolGUIControls* QmitkTotalSegmentatorToolGUI::m_Controls

protected

Definition at line 91 of file QmitkTotalSegmentatorToolGUI.h.

m_FirstPreviewComputation

bool QmitkTotalSegmentatorToolGUI::m_FirstPreviewComputation

protected

Definition at line 92 of file QmitkTotalSegmentatorToolGUI.h.

m_Mutex

QMutex QmitkTotalSegmentatorToolGUI::m_Mutex

protected

Definition at line 90 of file QmitkTotalSegmentatorToolGUI.h.

m_Preferences

mitk::IPreferences* QmitkTotalSegmentatorToolGUI::m_Preferences

protected

Definition at line 94 of file QmitkTotalSegmentatorToolGUI.h.

m_SuperclassEnableConfirmSegBtnFnc

EnableConfirmSegBtnFunctionType QmitkTotalSegmentatorToolGUI::m_SuperclassEnableConfirmSegBtnFnc

protected

Definition at line 93 of file QmitkTotalSegmentatorToolGUI.h.

VALID_TASKS

const QStringList QmitkTotalSegmentatorToolGUI::VALID_TASKS

protected

Definition at line 95 of file QmitkTotalSegmentatorToolGUI.h.

---

The documentation for this class was generated from the following file:

• QmitkTotalSegmentatorToolGUI.h
