QmitkBinaryThresholdULToolGUI Class Reference

GUI for mitk::BinaryThresholdTool. More...

#include <QmitkBinaryThresholdULToolGUI.h>

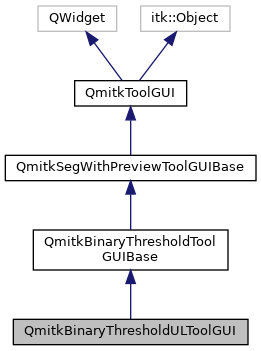

Inheritance diagram for QmitkBinaryThresholdULToolGUI:

Collaboration diagram for QmitkBinaryThresholdULToolGUI:

Public Member Functions
	mitkClassMacro (QmitkBinaryThresholdULToolGUI, QmitkBinaryThresholdToolGUIBase)
Pointer	Clone () const
Public Member Functions inherited from QmitkBinaryThresholdToolGUIBase
	mitkClassMacro (QmitkBinaryThresholdToolGUIBase, QmitkSegWithPreviewToolGUIBase)
void	OnThresholdingIntervalBordersChanged (double lower, double upper, bool isFloat)
void	OnThresholdingValuesChanged (mitk::ScalarType lower, mitk::ScalarType upper)
Public Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	mitkClassMacro (QmitkSegWithPreviewToolGUIBase, QmitkToolGUI)
Pointer	Clone () const
virtual bool	GetMode2D () const
Public Member Functions inherited from QmitkToolGUI
	mitkClassMacroItkParent (QmitkToolGUI, itk::Object)
void	SetTool (mitk::Tool *tool)
void	Register () const override
void	UnRegister () const ITK_NOEXCEPT ITK_OVERRIDE
void	SetReferenceCount (int) override
	~QmitkToolGUI () override

Static Public Member Functions
static Pointer	New ()

Protected Member Functions
	QmitkBinaryThresholdULToolGUI ()
	~QmitkBinaryThresholdULToolGUI () override
Protected Member Functions inherited from QmitkBinaryThresholdToolGUIBase
	QmitkBinaryThresholdToolGUIBase (bool ulMode)
	~QmitkBinaryThresholdToolGUIBase () override
void	DisconnectOldTool (mitk::SegWithPreviewTool *oldTool) override
void	ConnectNewTool (mitk::SegWithPreviewTool *newTool) override
void	InitializeUI (QBoxLayout *mainLayout) override
void	BusyStateChanged (bool) override
Protected Member Functions inherited from QmitkSegWithPreviewToolGUIBase
	QmitkSegWithPreviewToolGUIBase (bool mode2D, bool enableProcessingOfAllTimeSteps=true)
	~QmitkSegWithPreviewToolGUIBase () override
void	BusyStateChanged (bool isBusy) override
virtual void	EnableWidgets (bool enabled)
template<class TTool >
TTool *	GetConnectedToolAs ()
void	SetMergeStyle (mitk::MultiLabelSegmentation::MergeStyle mergeStyle)
void	SetOverwriteStyle (mitk::MultiLabelSegmentation::OverwriteStyle overwriteStyle)
QPushButton *	GetConfirmSegmentationButton () const
Protected Member Functions inherited from QmitkToolGUI
	QmitkToolGUI ()=default

Additional Inherited Members
Signals inherited from QmitkToolGUI
void	NewToolAssociated (mitk::Tool *)
Protected Types inherited from QmitkSegWithPreviewToolGUIBase
using	EnableConfirmSegBtnFunctionType = std::function< bool(bool)>
Protected Slots inherited from QmitkBinaryThresholdToolGUIBase
void	OnThresholdRangeChanged (double min, double max)
void	OnThresholdSliderChanged (double value)
Protected Slots inherited from QmitkSegWithPreviewToolGUIBase
void	OnNewToolAssociated (mitk::Tool *)
void	OnAcceptPreview ()
Protected Attributes inherited from QmitkBinaryThresholdToolGUIBase
ctkRangeWidget *	m_ThresholdRange
ctkSliderWidget *	m_ThresholdSlider
bool	m_ULMode
bool	m_InternalUpdate
Protected Attributes inherited from QmitkSegWithPreviewToolGUIBase
EnableConfirmSegBtnFunctionType	m_EnableConfirmSegBtnFnc
Protected Attributes inherited from QmitkToolGUI
mitk::Tool::Pointer	m_Tool

Detailed Description

GUI for mitk::BinaryThresholdTool.

This GUI shows a slider to change the tool's threshold and an OK button to accept a preview for actual thresholding.

Last contributor: $Author$

Definition at line 28 of file QmitkBinaryThresholdULToolGUI.h.

Constructor & Destructor Documentation

QmitkBinaryThresholdULToolGUI()

QmitkBinaryThresholdULToolGUI::QmitkBinaryThresholdULToolGUI ( )

protected

~QmitkBinaryThresholdULToolGUI()

QmitkBinaryThresholdULToolGUI::~QmitkBinaryThresholdULToolGUI ( )

overrideprotected

Member Function Documentation

Clone()

Pointer QmitkBinaryThresholdULToolGUI::Clone

(

)

const

mitkClassMacro()

QmitkBinaryThresholdULToolGUI::mitkClassMacro	(	QmitkBinaryThresholdULToolGUI	,
		QmitkBinaryThresholdToolGUIBase
	)

New()

static Pointer QmitkBinaryThresholdULToolGUI::New ( )

static

---

The documentation for this class was generated from the following file:

• QmitkBinaryThresholdULToolGUI.h
