A convenient base class for MITK render window BlueBerry Editors. More...

#include <QmitkAbstractRenderEditor.h>

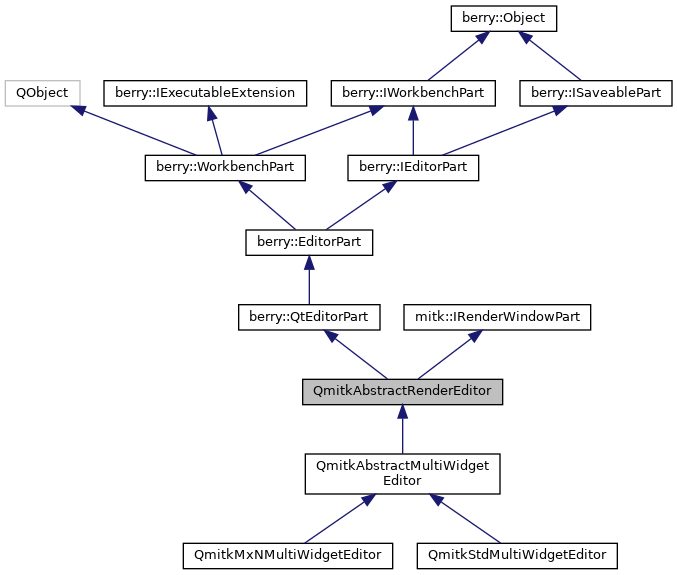

Inheritance diagram for QmitkAbstractRenderEditor:

[legend]

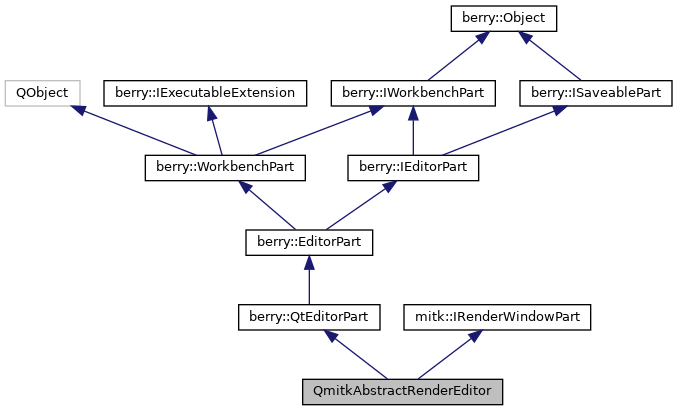

Collaboration diagram for QmitkAbstractRenderEditor:

[legend]

Public Member Functions
	berryObjectMacro (QmitkAbstractRenderEditor, QtEditorPart, mitk::IRenderWindowPart)

mitk::TimePointType	GetSelectedTimePoint (const QString &id=QString()) const override

	QmitkAbstractRenderEditor ()

	~QmitkAbstractRenderEditor () override

Public Member Functions inherited from berry::QtEditorPart
	berryObjectMacro (QtEditorPart, EditorPart)

void	CreatePartControl (QWidget *parent) override

Public Member Functions inherited from berry::EditorPart
	berryObjectMacro (EditorPart, WorkbenchPart, IEditorPart)

IEditorInput::Pointer	GetEditorInput () const override

IEditorSite::Pointer	GetEditorSite () const override

QString	GetTitleToolTip () const override

bool	IsSaveOnCloseNeeded () const override

Public Member Functions inherited from berry::WorkbenchPart
	berryObjectMacro (WorkbenchPart, QObject, IWorkbenchPart, IExecutableExtension)

	~WorkbenchPart () override

void	AddPropertyListener (IPropertyChangeListener *l) override

void	RemovePropertyListener (IPropertyChangeListener *l) override

void	SetPartProperty (const QString &key, const QString &value) override

QString	GetPartProperty (const QString &key) const override

const QHash< QString, QString > &	GetPartProperties () const override

void	SetInitializationData (const IConfigurationElement::Pointer &cfig, const QString &propertyName, const Object::Pointer &data) override

void	SetFocus () override=0

IWorkbenchPartSite::Pointer	GetSite () const override

QString	GetPartName () const override

QString	GetContentDescription () const override

QIcon	GetTitleImage () const override

QString	GetTitleToolTip () const override

Public Member Functions inherited from berry::IWorkbenchPart
	berryObjectMacro (berry::IWorkbenchPart, Object)

	~IWorkbenchPart () override

Public Member Functions inherited from berry::Object
virtual QString	GetClassName () const

virtual Reflection::TypeInfo	GetTypeInfo () const

virtual QList< Reflection::TypeInfo >	GetSuperclasses () const

virtual void	Delete ()

QDebug	Print (QDebug os, Indent Indent=0) const

virtual QString	ToString () const

virtual uint	HashCode () const

virtual bool	operator< (const Object *) const

void	Register () const

void	UnRegister (bool del=true) const

int	GetReferenceCount () const

void	SetReferenceCount (int)

void	AddDestroyListener (const MessageAbstractDelegate<> &delegate) const

void	RemoveDestroyListener (const MessageAbstractDelegate<> &delegate) const

virtual bool	operator== (const Object *) const

Public Member Functions inherited from berry::IExecutableExtension
virtual	~IExecutableExtension ()

virtual void	SetInitializationData (const SmartPointer< IConfigurationElement > &config, const QString &propertyName, const Object::Pointer &data)=0

Public Member Functions inherited from berry::IEditorPart
	berryObjectMacro (berry::IEditorPart, IWorkbenchPart, ISaveablePart)

	~IEditorPart () override

virtual void	Init (SmartPointer< IEditorSite > site, SmartPointer< IEditorInput > input)=0

Public Member Functions inherited from berry::ISaveablePart
	berryObjectMacro (berry::ISaveablePart)

Public Member Functions inherited from mitk::IRenderWindowPart
virtual	~IRenderWindowPart ()

virtual QmitkRenderWindow *	GetActiveQmitkRenderWindow () const =0

virtual QHash< QString, QmitkRenderWindow * >	GetQmitkRenderWindows () const =0

virtual QmitkRenderWindow *	GetQmitkRenderWindow (const QString &id) const =0

virtual QmitkRenderWindow *	GetQmitkRenderWindow (const mitk::AnatomicalPlane &orientation) const =0

virtual void	InitializeViews (const mitk::TimeGeometry *geometry, bool resetCamera)=0
	Initialize the render windows of this render window part to the given geometry. More...

virtual void	SetInteractionReferenceGeometry (const mitk::TimeGeometry *referenceGeometry)=0
	Define the reference geometry for interaction within a render window. More...

virtual bool	HasCoupledRenderWindows () const =0
	Returns true if the render windows are coupled; false if not. More...

virtual mitk::Point3D	GetSelectedPosition (const QString &id=QString()) const =0

virtual void	SetSelectedPosition (const mitk::Point3D &pos, const QString &id=QString())=0

virtual void	EnableDecorations (bool enable, const QStringList &decorations=QStringList())=0

virtual bool	IsDecorationEnabled (const QString &decoration) const =0

virtual QStringList	GetDecorations () const =0

Protected Member Functions
void	Init (berry::IEditorSite::Pointer site, berry::IEditorInput::Pointer input) override

virtual mitk::IDataStorageReference::Pointer	GetDataStorageReference () const

virtual mitk::DataStorage::Pointer	GetDataStorage () const

virtual mitk::IPreferences *	GetPreferences () const

mitk::IRenderingManager *	GetRenderingManager () const override

void	RequestUpdate (mitk::RenderingManager::RequestType requestType=mitk::RenderingManager::REQUEST_UPDATE_ALL) override

void	ForceImmediateUpdate (mitk::RenderingManager::RequestType requestType=mitk::RenderingManager::REQUEST_UPDATE_ALL) override

mitk::TimeNavigationController *	GetTimeNavigationController () const override

void	DoSave () override

void	DoSaveAs () override

bool	IsDirty () const override

bool	IsSaveAsAllowed () const override

Protected Member Functions inherited from berry::QtEditorPart
virtual void	CreateQtPartControl (QWidget *parent)=0

Protected Member Functions inherited from berry::EditorPart
	EditorPart ()

virtual void	SetInput (IEditorInput::Pointer input)

virtual void	SetInputWithNotify (IEditorInput::Pointer input)

void	SetContentDescription (const QString &description) override

void	SetPartName (const QString &partName) override

void	CheckSite (IWorkbenchPartSite::Pointer site) override

Protected Member Functions inherited from berry::WorkbenchPart
	WorkbenchPart ()

IConfigurationElement::Pointer	GetConfigurationElement () const

void	SetSite (IWorkbenchPartSite::Pointer site)

virtual void	SetTitleImage (const QIcon &titleImage)

virtual void	SetTitleToolTip (const QString &toolTip)

void	FirePropertyChanged (const QString &key, const QString &oldValue, const QString &newValue)

void	FirePropertyChange (int propertyId)

Protected Member Functions inherited from berry::Object
	Object ()

virtual	~Object ()

virtual QDebug	PrintSelf (QDebug os, Indent indent) const

virtual QDebug	PrintHeader (QDebug os, Indent indent) const

virtual QDebug	PrintTrailer (QDebug os, Indent indent) const

Additional Inherited Members
Public Types inherited from berry::Object
typedef Object	Self

typedef berry::SmartPointer< Self >	Pointer

typedef berry::SmartPointer< const Self >	ConstPointer

typedef berry::WeakPointer< Self >	WeakPtr

typedef berry::WeakPointer< const Self >	ConstWeakPtr

Static Public Member Functions inherited from berry::Object
static const char *	GetStaticClassName ()

static Reflection::TypeInfo	GetStaticTypeInfo ()

static QList< Reflection::TypeInfo >	GetStaticSuperclasses ()

Static Public Attributes inherited from berry::ISaveablePart
static const int	PROP_DIRTY

Static Public Attributes inherited from mitk::IRenderWindowPart
static const QString	DECORATION_BORDER

static const QString	DECORATION_LOGO

static const QString	DECORATION_MENU

static const QString	DECORATION_BACKGROUND

static const QString	DECORATION_CORNER_ANNOTATION

Protected Attributes inherited from berry::Object
QAtomicInt	m_ReferenceCount

QMutex	m_ReferenceCountLock

Detailed Description

A convenient base class for MITK render window BlueBerry Editors.

QmitkAbstractRenderEditor provides several convenience methods that ease the introduction of a new editor for rendering a MITK DataStorage:

Access to the DataStorage (~ the shared data repository)
Access to and update notification for the editor's preferences
Default implementation of some mitk::IRenderWindowPart methods

When inheriting from QmitkAbstractRenderEditor, you must implement the following methods:

void CreateQtPartControl(QWidget* parent)
void SetFocus()

You may reimplement the following private virtual methods to be notified about certain changes:

void OnPreferencesChanged(const mitk::IPreferences*)

See also: IRenderWindowPart; ILinkedRenderWindowPart

Definition at line 61 of file QmitkAbstractRenderEditor.h.

Constructor & Destructor Documentation

◆ QmitkAbstractRenderEditor()

QmitkAbstractRenderEditor::QmitkAbstractRenderEditor ( )

◆ ~QmitkAbstractRenderEditor()

QmitkAbstractRenderEditor::~QmitkAbstractRenderEditor ( )

override

Member Function Documentation

◆ berryObjectMacro()

QmitkAbstractRenderEditor::berryObjectMacro	(	QmitkAbstractRenderEditor	,
		QtEditorPart	,
		mitk::IRenderWindowPart
	)

◆ DoSave()

void QmitkAbstractRenderEditor::DoSave ( )

overrideprotectedvirtual

See also: berry::IEditorPart::DoSave

Implements berry::EditorPart.

◆ DoSaveAs()

void QmitkAbstractRenderEditor::DoSaveAs ( )

overrideprotectedvirtual

See also: berry::IEditorPart::DoSaveAs

Implements berry::EditorPart.

◆ ForceImmediateUpdate()

void QmitkAbstractRenderEditor::ForceImmediateUpdate ( mitk::RenderingManager::RequestType requestType = mitk::RenderingManager::REQUEST_UPDATE_ALL )

overrideprotectedvirtual

Force an immediate update of this editor's render windows. This implementation calls mitk::IRenderingManager::ForceImmediateUpdate() on the rendering manager interface returned by GetRenderingManager();

Parameters

requestType The type of render windows for which an immediate update is forced.

See also: mitk::IRenderWindowPart::ForceImmediateUpdate

Implements mitk::IRenderWindowPart.

◆ GetDataStorage()

virtual mitk::DataStorage::Pointer QmitkAbstractRenderEditor::GetDataStorage ( ) const

protectedvirtual

Get the DataStorage set by the editor input.

◆ GetDataStorageReference()

virtual mitk::IDataStorageReference::Pointer QmitkAbstractRenderEditor::GetDataStorageReference ( ) const

protectedvirtual

Get a reference to the DataStorage set by the editor input.

◆ GetPreferences()

virtual mitk::IPreferences* QmitkAbstractRenderEditor::GetPreferences ( ) const

protectedvirtual

Get the preferences for this editor.

◆ GetRenderingManager()

mitk::IRenderingManager* QmitkAbstractRenderEditor::GetRenderingManager ( ) const

overrideprotectedvirtual

Get the RenderingManager used by this editor. This default implementation uses the global MITK RenderingManager provided by mitk::RenderingManager::GetInstance().

See also: mitk::IRenderWindowPart::GetRenderingManager

Implements mitk::IRenderWindowPart.

◆ GetSelectedTimePoint()

mitk::TimePointType QmitkAbstractRenderEditor::GetSelectedTimePoint ( const QString & id = QString() ) const

overridevirtual

See also: mitk::IRenderWindowPart::GetSelectedTimePoint() This default implementation assumes that all renderer use the same TimeNavigationControl provided by this class (GetTimeNavigationControl()).

Implements mitk::IRenderWindowPart.

◆ GetTimeNavigationController()

mitk::TimeNavigationController* QmitkAbstractRenderEditor::GetTimeNavigationController ( ) const

overrideprotectedvirtual

Get the time navigation controller for this editor. This implementation returns the TimeNavigationController returned by the mitk::IRenderingManager::GetTimeNavigationController() method of the interface implementation returned by GetRenderingManager().

See also: mitk::IRenderingManager::GetTimeNavigationController

Implements mitk::IRenderWindowPart.

◆ Init()

void QmitkAbstractRenderEditor::Init	(	berry::IEditorSite::Pointer	site,
		berry::IEditorInput::Pointer	input
	)

overrideprotectedvirtual

Initializes this editor by checking for a valid mitk::DataStorageEditorInput as input.

See also: berry::IEditorPart::Init

Implements berry::EditorPart.

◆ IsDirty()

bool QmitkAbstractRenderEditor::IsDirty ( ) const

overrideprotectedvirtual

See also: berry::IEditorPart::IsDirty

Implements berry::EditorPart.

◆ IsSaveAsAllowed()

bool QmitkAbstractRenderEditor::IsSaveAsAllowed ( ) const

overrideprotectedvirtual

See also: berry::IEditorPart::IsSaveAsAllowed

Implements berry::EditorPart.

◆ RequestUpdate()

void QmitkAbstractRenderEditor::RequestUpdate ( mitk::RenderingManager::RequestType requestType = mitk::RenderingManager::REQUEST_UPDATE_ALL )

overrideprotectedvirtual

Request an update of this editor's render windows. This implementation calls mitk::IRenderingManager::RequestUpdate on the rendering manager interface returned by GetRenderingManager();

Parameters

requestType The type of render windows for which an update is requested.

See also: mitk::IRenderWindowPart::RequestUpdate

Implements mitk::IRenderWindowPart.

The documentation for this class was generated from the following file:

QmitkAbstractRenderEditor.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ QmitkAbstractRenderEditor()

◆ ~QmitkAbstractRenderEditor()

Member Function Documentation

◆ berryObjectMacro()

◆ DoSave()

◆ DoSaveAs()

◆ ForceImmediateUpdate()

◆ GetDataStorage()

◆ GetDataStorageReference()

◆ GetPreferences()

◆ GetRenderingManager()

◆ GetSelectedTimePoint()

◆ GetTimeNavigationController()

◆ Init()

◆ IsDirty()

◆ IsSaveAsAllowed()

◆ RequestUpdate()
