Sort DICOM datasets based on configurable tags. More...

#include <mitkDICOMTagBasedSorter.h>

Inheritance diagram for mitk::DICOMTagBasedSorter:

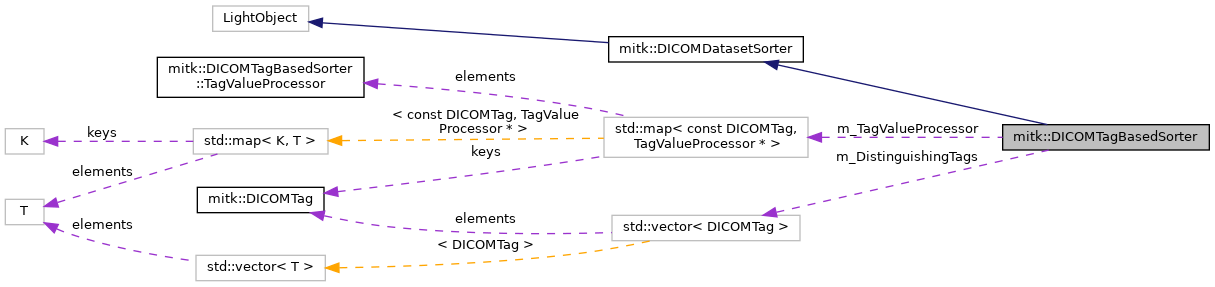

Collaboration diagram for mitk::DICOMTagBasedSorter:

[legend]

Classes
class	CutDecimalPlaces
	Cuts a number after configured number of decimal places. An instance of this class can be used to avoid errors when comparing minimally different image orientations. More...

struct	ParameterizedDatasetSort
	Helper struct to feed into std::sort, configured via DICOMSortCriterion. More...

class	TagValueProcessor
	Processes tag values before they are compared. These classes could do some kind of normalization such as rounding, lower case formatting, etc. More...

Public Member Functions
	mitkClassMacro (DICOMTagBasedSorter, DICOMDatasetSorter)

void	AddDistinguishingTag (const DICOMTag &, TagValueProcessor *tagValueProcessor=nullptr)
	Datasets that differ in given tag's value will be sorted into separate outputs. More...

DICOMTagList	GetDistinguishingTags () const

const TagValueProcessor *	GetTagValueProcessorForDistinguishingTag (const DICOMTag &) const

void	SetSortCriterion (DICOMSortCriterion::ConstPointer criterion)
	Define the sorting criterion (which holds seconardy criteria) More...

DICOMSortCriterion::ConstPointer	GetSortCriterion () const

DICOMTagList	GetTagsOfInterest () override
	A list of all the tags needed for processing (facilitates scanning). More...

void	SetStrictSorting (bool strict)
	Whether or not groups should be checked for consecutive tag values. More...

bool	GetStrictSorting () const

void	SetExpectDistanceOne (bool strict)
	Flag for a special case in "strict sorting". Please see documentation of SetStrictSorting(). More...

bool	GetExpectDistanceOne () const

void	Sort () override
	Actually sort as described in the Detailed Description. More...

void	PrintConfiguration (std::ostream &os, const std::string &indent="") const override
	Print configuration details into given stream. More...

bool	operator== (const DICOMDatasetSorter &other) const override

Public Member Functions inherited from mitk::DICOMDatasetSorter
	mitkClassMacroItkParent (DICOMDatasetSorter, itk::LightObject)

void	SetInput (DICOMDatasetList filenames)
	Input for sorting. More...

const DICOMDatasetList &	GetInput () const
	Input for sorting. More...

unsigned int	GetNumberOfOutputs () const
	Output of the sorting process. More...

const DICOMDatasetList &	GetOutput (unsigned int index) const
	Output of the sorting process. More...

DICOMDatasetList &	GetOutput (unsigned int index)
	Output of the sorting process. More...

Static Public Member Functions
static Pointer	New ()

static bool	GetDefaultStrictSorting ()

static bool	GetDefaultExpectDistanceOne ()

Protected Types
typedef std::map< std::string, DICOMDatasetList >	GroupIDToListType

typedef std::map< const DICOMTag, TagValueProcessor * >	TagValueProcessorMap

Protected Member Functions
	DICOMTagBasedSorter ()

	~DICOMTagBasedSorter () override

	DICOMTagBasedSorter (const DICOMTagBasedSorter &other)

DICOMTagBasedSorter &	operator= (const DICOMTagBasedSorter &other)

std::string	BuildGroupID (DICOMDatasetAccess *dataset)
	Helper for SplitInputGroups(). More...

GroupIDToListType	SplitInputGroups ()
	Implements the "distiguishing tags". To sort datasets into different groups, a long string will be built for each dataset. The string concatenates all tags and their respective values. Datasets that match in all values will end up with the same string. More...

GroupIDToListType &	SortGroups (GroupIDToListType &groups)
	Implements the sorting step. Relatively simple implementation thanks to std::sort and a parameterization via DICOMSortCriterion. More...

Protected Member Functions inherited from mitk::DICOMDatasetSorter
	DICOMDatasetSorter ()

	~DICOMDatasetSorter () override

	DICOMDatasetSorter (const DICOMDatasetSorter &other)

DICOMDatasetSorter &	operator= (const DICOMDatasetSorter &other)

void	ClearOutputs ()

void	SetNumberOfOutputs (unsigned int numberOfOutputs)

void	SetOutput (unsigned int index, const DICOMDatasetList &output)

Protected Attributes
DICOMTagList	m_DistinguishingTags

TagValueProcessorMap	m_TagValueProcessor

DICOMSortCriterion::ConstPointer	m_SortCriterion

bool	m_StrictSorting

bool	m_ExpectDistanceOne

Static Protected Attributes
const static bool	m_DefaultStrictSorting

const static bool	m_DefaultExpectDistanceOne

Detailed Description

Sort DICOM datasets based on configurable tags.

This class implements sorting of input DICOM datasets into multiple outputs as described in Loading strategy.

The logic of sorting and splitting is most simple and most generic:

Datasets will be put into different groups, if they differ in their value of specific tags (defined by AddDistinguishingTag())
- there might be multiple distinguishing tags defined
- tag values might be processed before comparison by means of TagValueProcessor (e.g. round to a number of decimal places)
Each of the groups will be sorted by comparing their tag values using multiple DICOMSortCriterion
- DICOMSortCriterion might evaluate a single tag (e.g. Instance Number) or multiple values (as in SortByImagePositionPatient)
- only a single DICOMSortCriterion is defined for DICOMTagBasedSorter, because each DICOMSortCriterion holds a "secondary sort criterion", i.e. an application can define multiple tags for sorting by chaining DICOMSortCriteria
- applications should make sure that sorting is always defined (to avoid problems with standard containers), e.g. by adding a comparison of filenames or instance UIDs as a last sorting fallback.

Definition at line 40 of file mitkDICOMTagBasedSorter.h.

Member Typedef Documentation

◆ GroupIDToListType

typedef std::map<std::string, DICOMDatasetList> mitk::DICOMTagBasedSorter::GroupIDToListType

protected

Definition at line 172 of file mitkDICOMTagBasedSorter.h.

◆ TagValueProcessorMap

typedef std::map<const DICOMTag, TagValueProcessor*> mitk::DICOMTagBasedSorter::TagValueProcessorMap

protected

Definition at line 188 of file mitkDICOMTagBasedSorter.h.

Constructor & Destructor Documentation

◆ DICOMTagBasedSorter() [1/2]

mitk::DICOMTagBasedSorter::DICOMTagBasedSorter ( )

protected

◆ ~DICOMTagBasedSorter()

mitk::DICOMTagBasedSorter::~DICOMTagBasedSorter ( )

overrideprotected

◆ DICOMTagBasedSorter() [2/2]

mitk::DICOMTagBasedSorter::DICOMTagBasedSorter ( const DICOMTagBasedSorter & other )

protected

Member Function Documentation

◆ AddDistinguishingTag()

void mitk::DICOMTagBasedSorter::AddDistinguishingTag	(	const DICOMTag &	,
		TagValueProcessor *	tagValueProcessor = `nullptr`
	)

Datasets that differ in given tag's value will be sorted into separate outputs.

◆ BuildGroupID()

std::string mitk::DICOMTagBasedSorter::BuildGroupID ( DICOMDatasetAccess * dataset )

protected

Helper for SplitInputGroups().

◆ GetDefaultExpectDistanceOne()

static bool mitk::DICOMTagBasedSorter::GetDefaultExpectDistanceOne ( )

inlinestatic

Definition at line 143 of file mitkDICOMTagBasedSorter.h.

◆ GetDefaultStrictSorting()

static bool mitk::DICOMTagBasedSorter::GetDefaultStrictSorting ( )

inlinestatic

Definition at line 138 of file mitkDICOMTagBasedSorter.h.

◆ GetDistinguishingTags()

DICOMTagList mitk::DICOMTagBasedSorter::GetDistinguishingTags ( ) const

◆ GetExpectDistanceOne()

bool mitk::DICOMTagBasedSorter::GetExpectDistanceOne ( ) const

◆ GetSortCriterion()

DICOMSortCriterion::ConstPointer mitk::DICOMTagBasedSorter::GetSortCriterion ( ) const

◆ GetStrictSorting()

bool mitk::DICOMTagBasedSorter::GetStrictSorting ( ) const

◆ GetTagsOfInterest()

DICOMTagList mitk::DICOMTagBasedSorter::GetTagsOfInterest ( )

overridevirtual

A list of all the tags needed for processing (facilitates scanning).

Implements mitk::DICOMDatasetSorter.

◆ GetTagValueProcessorForDistinguishingTag()

const TagValueProcessor* mitk::DICOMTagBasedSorter::GetTagValueProcessorForDistinguishingTag ( const DICOMTag & ) const

◆ mitkClassMacro()

mitk::DICOMTagBasedSorter::mitkClassMacro	(	DICOMTagBasedSorter	,
		DICOMDatasetSorter
	)

◆ New()

static Pointer mitk::DICOMTagBasedSorter::New ( )

static

◆ operator=()

DICOMTagBasedSorter& mitk::DICOMTagBasedSorter::operator= ( const DICOMTagBasedSorter & other )

protected

◆ operator==()

bool mitk::DICOMTagBasedSorter::operator== ( const DICOMDatasetSorter & other ) const

overridevirtual

Implements mitk::DICOMDatasetSorter.

◆ PrintConfiguration()

void mitk::DICOMTagBasedSorter::PrintConfiguration	(	std::ostream &	os,
		const std::string &	indent = `""`
	)		const

overridevirtual

Print configuration details into given stream.

Implements mitk::DICOMDatasetSorter.

◆ SetExpectDistanceOne()

void mitk::DICOMTagBasedSorter::SetExpectDistanceOne ( bool strict )

Flag for a special case in "strict sorting". Please see documentation of SetStrictSorting().

See also: SetStrictSorting

◆ SetSortCriterion()

void mitk::DICOMTagBasedSorter::SetSortCriterion ( DICOMSortCriterion::ConstPointer criterion )

Define the sorting criterion (which holds seconardy criteria)

◆ SetStrictSorting()

void mitk::DICOMTagBasedSorter::SetStrictSorting ( bool strict )

Whether or not groups should be checked for consecutive tag values.

When this flag is set (default in constructor=off), the sorter will not only sort in a way that the values of a configured tag are ascending BUT in addition the sorter will enforce a constant numerical distance between values.

Having this flag is useful for handling of series with missing slices, e.g. Instance Numbers 1 2 3 5 6 7 8. With the flag set to true, the sorter would split this group into two, because the initial distance of 1 is not kept between Instance Numbers 3 and 5.

A special case of this behavior can be configured by SetExpectDistanceOne(). When this additional flag is set to true, the sorter will expect distance 1 exactly. This can help if the second slice is missing already. Without this additional flag, we would "learn" about a wrong distance of 2 (or similar) and then sort completely wrong.

◆ Sort()

void mitk::DICOMTagBasedSorter::Sort ( )

overridevirtual

Actually sort as described in the Detailed Description.

Implements mitk::DICOMDatasetSorter.

◆ SortGroups()

GroupIDToListType& mitk::DICOMTagBasedSorter::SortGroups ( GroupIDToListType & groups )

protected

Implements the sorting step. Relatively simple implementation thanks to std::sort and a parameterization via DICOMSortCriterion.

◆ SplitInputGroups()

GroupIDToListType mitk::DICOMTagBasedSorter::SplitInputGroups ( )

protected

Implements the "distiguishing tags". To sort datasets into different groups, a long string will be built for each dataset. The string concatenates all tags and their respective values. Datasets that match in all values will end up with the same string.

Member Data Documentation

◆ m_DefaultExpectDistanceOne

const static bool mitk::DICOMTagBasedSorter::m_DefaultExpectDistanceOne

staticprotected

Definition at line 197 of file mitkDICOMTagBasedSorter.h.

◆ m_DefaultStrictSorting

const static bool mitk::DICOMTagBasedSorter::m_DefaultStrictSorting

staticprotected

Definition at line 196 of file mitkDICOMTagBasedSorter.h.

◆ m_DistinguishingTags

DICOMTagList mitk::DICOMTagBasedSorter::m_DistinguishingTags

protected

Definition at line 187 of file mitkDICOMTagBasedSorter.h.

◆ m_ExpectDistanceOne

bool mitk::DICOMTagBasedSorter::m_ExpectDistanceOne

protected

Definition at line 194 of file mitkDICOMTagBasedSorter.h.

◆ m_SortCriterion

DICOMSortCriterion::ConstPointer mitk::DICOMTagBasedSorter::m_SortCriterion

protected

Definition at line 191 of file mitkDICOMTagBasedSorter.h.

◆ m_StrictSorting

bool mitk::DICOMTagBasedSorter::m_StrictSorting

protected

Definition at line 193 of file mitkDICOMTagBasedSorter.h.

◆ m_TagValueProcessor

TagValueProcessorMap mitk::DICOMTagBasedSorter::m_TagValueProcessor

protected

Definition at line 189 of file mitkDICOMTagBasedSorter.h.

The documentation for this class was generated from the following file:

mitkDICOMTagBasedSorter.h
